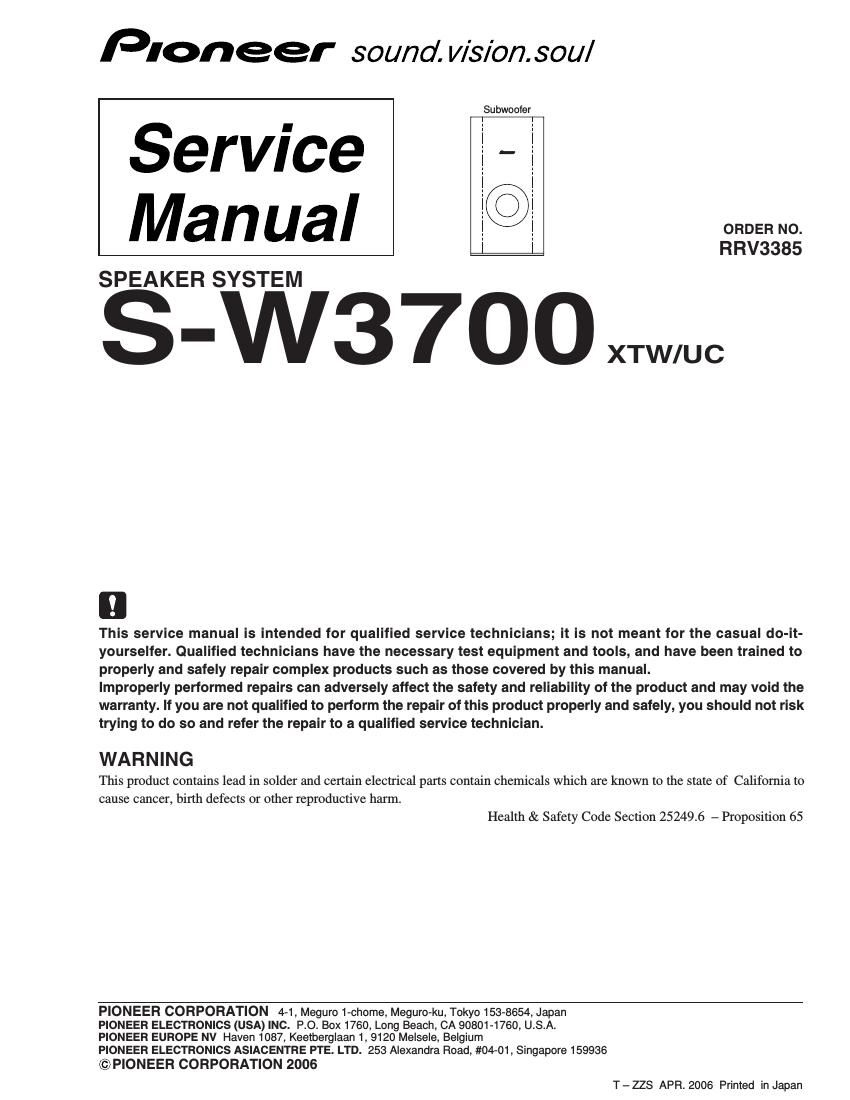

Pioneer sw 3700 service manual

This is the 3 pages manual for pioneer sw 3700 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3
pioneer sw 3700 service manual

Extracted text from pioneer sw 3700 service manual (Ocr-read)


Page 1

2 1 23 4 1234 C D F A B E S-W3700 NSP 1 Subwoofer SMW6208 NSP 2 Accessory Set SME6087 Speaker Cord (SW: Purple) SDS6041 Non Skid Pad (for Subwoofer) SEC2070 Polyethylene Bag S1 SHL1352 3Operating Guide (English, French) SRD6062 NSP Model Label SAN6387 4Protector SHA6114 5Protection Sheet SHC1821 6Packing Case SHG6230 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2. EXPLODED VIEWS AND PARTS LIST Mark No. Description Part No. 2.1 PACKING PACKING Parts List 1. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY SUBWOOFER The speaker unit is attached to the back board by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal rightward. The cosmetic baffle assy is attached to the baffle board by press-fitting. To detach it, pry it open by inserting a flat blade screwdriver into lower slot. 4 (2/2) 652 4 (2/2) 4 (1/2) 4 (1/2)1 3

Page 2

3 1 234 1 23 4 C D F A B E S-W3700 SUBWOOFER Parts List 2.2 SUBWOOFER NSP 1 Cabinet SMM6045 2Cosmetic BF. Assy SXB6006 NSP 3 Badge 37 SAM1507 4Packing SEC2072 NSP 5 Paper Tube 60 SMR6011 NSP 6 Acoustic Absorbent SMV2229 NSP 7 Cosmetic Baffle SNK2927 8Connecting Cord SDD6017 9Input Terminal SKX1060 10 Gasket SEC6058 11 Speaker A14LU75-52F 12 Screw (for Speaker) BYC40P130FTB Mark No. Description Part No. 3. SCHEMATIC DIAGRAM INPUT Speaker BlackRed Connecting Cord (SDD6017) 12 11 320 288 (285) 1 2 4 3 5 6 8 9 7 Model Label 190 360 10
