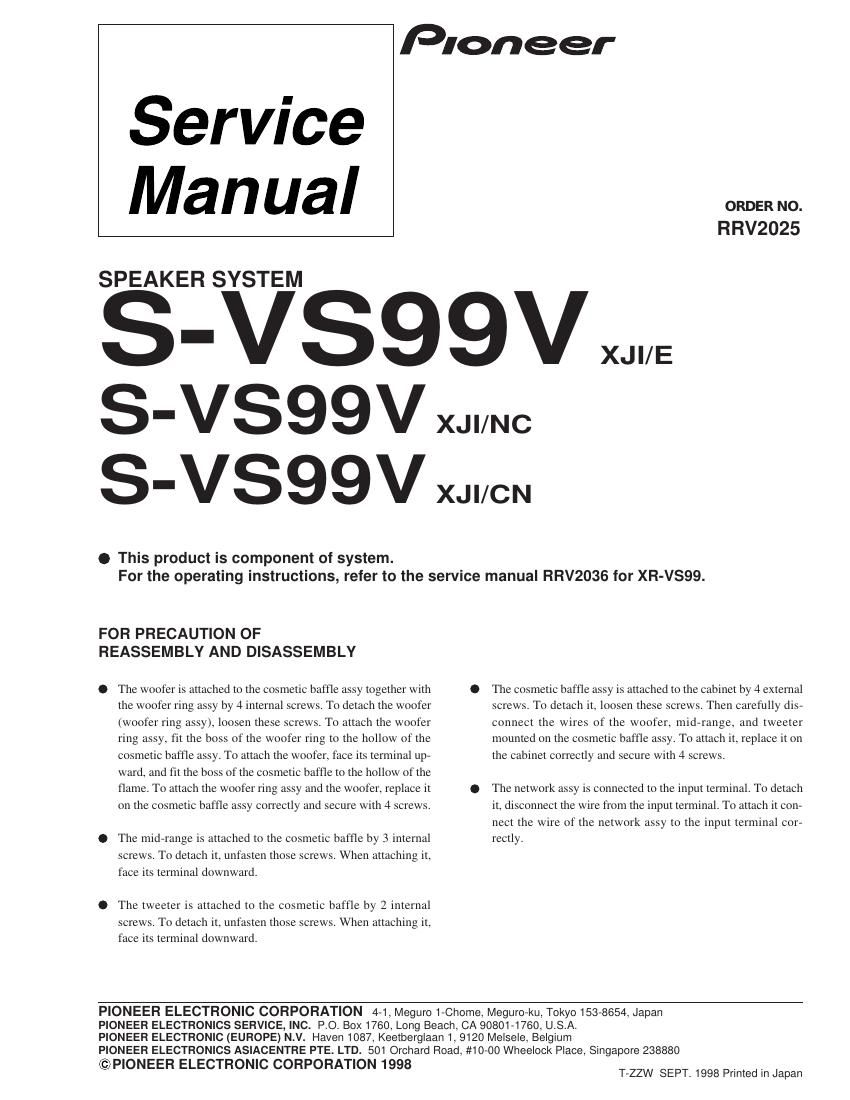

Pioneer svs 99 v service manual

This is the 2 pages manual for pioneer svs 99 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
pioneer svs 99 v service manual

Extracted text from pioneer svs 99 v service manual (Ocr-read)


Page 1

2 NSP Cabinet SMM1808 Network ASSY SWN1586 Input Terminal KKX1014 NSP Origin Label (XJI/CN Type only) SAX1349 Gasket (for width) SEC1359 Gasket (for height) SEC1390 Non Skid Pad SEC1374 NSP Acoustic Absorbent SMV1886 Baffle ASSY (L) SXB1331 NSP Punching Net (L) SNC1163 NSP Cosmetic Baffle (L) SNK2309 NSP Duct SNK2311 Baffle ASSY (R) SXB1332 NSP Punching Net (R) SNC1164 NSP Cosmetic Baffle (R) SNK2310 NSP Duct SNK2311 Woofer Ring ASSY SXB1336 NSP Woofer Ring SNK2293 NSP Cosmetic Ring ASSY SXB1337 NSP Punching Net SNC1160 NSP Cosmetic Ring SNK2327 Speaker (Woofer) P16EN79-51F Speaker (Mid-range) FD87CC50-51F Speaker (Tweeter) E52AP39-55F Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-VS99V ( XJI/E Type ) NSP Stamped Model Label (L) SME2783 NSP Model Label (L) SAN2586 NSP Stamped Model Label (R) SME2784 NSP Model Label (R) SAN2587 ( XJI/NC Type ) NSP Stamped Model Label (L) SME2834 NSP Model Label (L) SAN2607 NSP Stamped Model Label (R) SME2835 NSP Model Label (R) SAN2608 ( XJI/CN Type ) NSP Stamped Model Label (L) SME2852 NSP Model Label (L) SAN2607 NSP Stamped Model Label (R) SME2853 NSP Model Label (R) SAN2608 Screw (for Tweeter) BPZ30P080FMC Screw (for Mid-range) BPZ40P100FMC Screw (for Woofer Ring ASSY) BPZ40P300FMC Tapping Screw (for Baffle) SBA1162 Speaker Wire SDS1057 Top Protector SHA2116 Bottom Protector SHA2117 NSP Polyethylene Bag S5 SHL1212 NSP CSS Label ( XJI/CN Type only) SAX1338 Packing Case ( XJI/E Type) SHG2106 Packing Case ( XJI/NC Type) SHG2143 Packing Case ( XJI/CN Type) SHG2144 SCHEMATIC DIAGRAM For Packing Network ASSY (SWN1586) Woofer Mid-range I N Red Green WhiteBlue White White Tweeter 1.0µF Blue White 4.7µF
