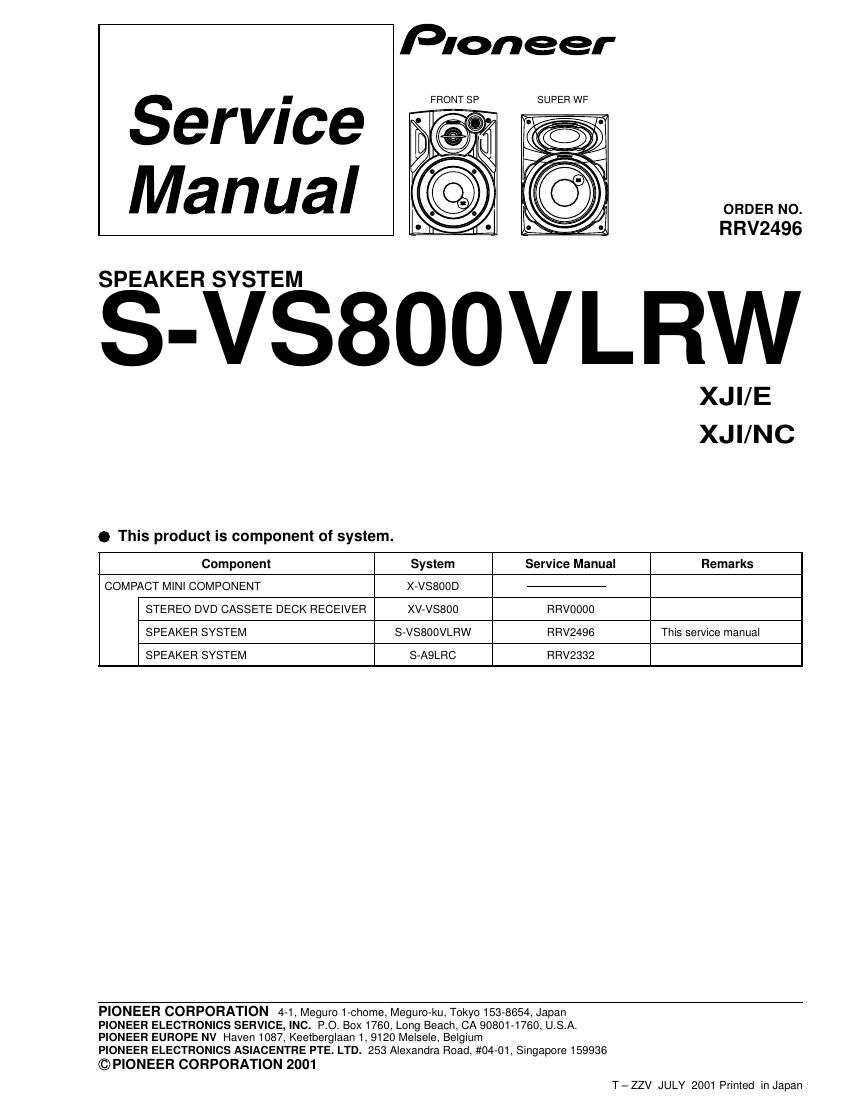

Pioneer svs 800 vlrw service manual

This is the 6 pages manual for pioneer svs 800 vlrw service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 6
pioneer svs 800 vlrw service manual

Extracted text from pioneer svs 800 vlrw service manual (Ocr-read)


Page 1

S-VS800VLRW 2 FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The cosmetic baffle assy is attached to the cabinet by 4 external hexagon socket screws. To detach the cosmetic baffle assy, loosen these screws by the hexagon screw driver. Then care- fully disconnect the wires of the woofer and mid-range mounted on the cosmetic baffle assy. To attach the cosmetic baffle assy, replace it on the cabinet correctly and secure with 4 screws. The woofer is attached to the cosmetic baffle assy by 4 internal screws. To detach it ,unfasten these screws. When attaching it, face its terminal downward. The mid-range is attached to the cosmetic baffle assy by 2 inter- nal screws. To detach it, loosen these screws. Then carefully disconnect the wires of the tweeter mounted on the cosmetic baffle assy by adhesion. To attach the mid-range, face its termi- nal downward. The network assy is connected to the input terminal. To detach it, disconnect the wire from the input terminal. To attach the network assy, connect the wire of the network assy to the input terminal correctly. When exchange the tweeter, do it with the cosmetic baffle assy. ( for Front Speaker) ( for Super Woofer) The cosmetic baffle assy is attached to the cabinet by 4 external hexagon socket screws. To detach the cosmetic baffle assy, loosen these screws by the hexagon screw driver. Then care- fully disconnect the wires of the woofer mounted on the cos- metic baffle assy. To attach the cosmetic baffle assy, replace it on the cabinet correctly and secure with 4 screws. The woofer is attached to the cosmetic baffle assy together with the cosmetic ring assy by 4 internal screws. To detach the woofer(cosmetic ring assy), lossen these screws. To attach the cosmetic ring assy, fit the notch of the cosmetic ring to the pro- jection of the cosmetic baffle assy. To attach the woofer ,face its terminal downward and upward. To attach the cosmetic ring assy and woofer, replace it on the cosmetic baffle assy correctly and secure with 4 screws. The network assy is attached to the bottom board by one inter- nal screw and adhesive. To detach it, unfasten that screw and pry it out. To attach it, apply adhesive to the bottom board. Then press it to the bottom board, and secure with one screw. When attaching the network assy, do it carefully so that each wire is not touched.

Page 2

S-VS800VLRW 3 Mark No. Description Part No. For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST NSP CS ASSY (Front Speaker) See Contrast table (2) NSP CS ASSY (Super Woofer) See Contrast table (2) Speaker Wire (for Front Speaker) SDS1057 Speaker Wire (for Super Woofer) SDS1084 Spacer SHD1046 Packing Case See Contrast table (2) (2) CONTRAST TABLE S-VS800VLRW/XJI/E and /XJI/NC models are constructed the same except for the following: (1) PARTS LIST CS ASSY (Front Speaker) (1) PARTS LIST NSP Cabinet SMM1940 Network Assy SWN1679 Input Terminal KKX1014 Gasket (Baffle wide) SEC1359 Non Skid Pad SEC1374 Gasket (Baffle height) SEC1380 NSP Stamped Model Label (L) See Contrast table (2) NSP Model Label (L) See Contrast table (2) NSP Stamped Model Label (R) See Contrast table (2) NSP Model Label (R) See Contrast table (2) NSP Acoustic Absorbent SMV1886 Cosmetic Baffle Assy (L) SXB1432 NSP Duct SMR1334 NSP Punching Net SNC1183 NSP Cosmetic Baffle (L) SNK2511 NSP Diaphragm Assy20 SXE1092 NSP Ceramic Tweeter SCA1017 NSP Terminal SKF1034 NSP Terminal SKF1035 ∗ 1 : Refer to CS ASSY (Front Speaker) . ∗ 2 : Refer to CS ASSY (Super Woofer) . Mark No. Description Part No. Cosmetic Baffle Assy (R) SXB1433 NSP Duct SMR1334 NSP Punching Net SNC1183 NSP Cosmetic Baffle (R) SNK2512 NSP Diaphragm Assy20 SXE1092 NSP Ceramic Tweeter SCA1017 NSP Terminal SKF1034 NSP Terminal SKF1035 Speaker (Woofer) A14LU83-51H Speaker (Mid) E52AP39-60D Screw (for Mid) BPZ40P080FMC Screw (for Woofer) BPZ40P100FMC Tapping Screw SBA1162 Top Protector SHA2282 Bottom Protector SHA2283 NSP Polyethylene Bag SHL1212 Mark No. Description Part No. For Packing NSP CS ASSY (Front Speaker) SMW1625 SMW1665 ∗ 1 NSP CS ASSY (Super Woofer) SMW1626 SMW1666 ∗ 2 Packing Case SHG2334 SHG2365 MarkRemarks Symbol and DescriptionPart No. S-VS800VLRW /XJI/ES-VS800VLRW /XJI/NC
