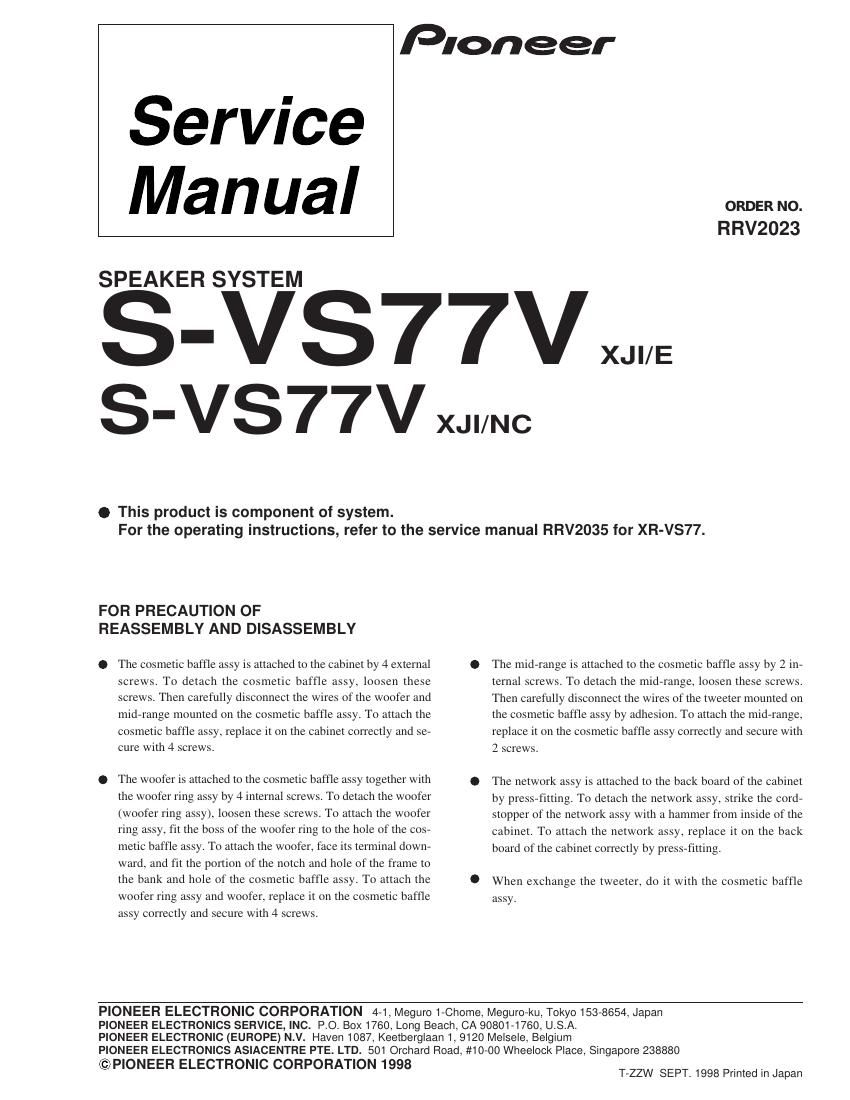

Pioneer svs 77 v service manual

Page 1

2 NSP Cabinet (L) SMM1805 NSP Cabinet (R) SMM1839 Network ASSY SWN1577 Gasket (for width) SEC1359 Non Skid Pad SEC1374 Gasket (for height) SEC1375 NSP Acoustic Absorbent SMV1886 Cosmetic Baffle ASSY (L) SXB1325 NSP Cosmetic Baffle (L) SNK2288 NSP Duct SNK2304 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024 Cosmetic Baffle ASSY (R) SXB1326 NSP Cosmetic Baffle (R) SNK2289 NSP Duct SNK2304 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024 Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-VS77V Woofer Ring ASSY SXB1336 NSP Woofer Ring SNK2293 NSP Cosmetic Ring ASSY SXB1337 NSP Punching Net SNC1160 NSP Cosmetic Ring SNK2327 Speaker (Woofer) A16LU83-52D Speaker (Mid-range) D66AP45-53D Screw (for Tweeter) BPZ30P100FMC Tapping Screw (for Cosmetic Baffle)SBA1162 Screw (for Woofer and BPZ40P160FMC Woofer Ring ASSY) ( XJI/E Type ) NSP Stamped Model Label (L) SME2776 NSP Model Label (L) SAN2580 NSP Stamped Model Label (R) SME2777 NSP Model Label (R) SAN2581 ( XJI/NC Type ) NSP Stamped Model Label (L) SME2846 NSP Model Label (L) SAN2599 NSP Stamped Model Label (R) SME2847 NSP Model Label (R) SAN2600 Top Protector SHA2112 Bottom Protector SHA2113 Packing Case (XJI/E Type) SHG2103 Packing Case (XJI/NC Type) SHG2148 NSP Polyethylene Bag S5 SHL1212 SCHEMATIC DIAGRAM For Packing Network ASSY (SWN1577) Woofer 2.2µF Midrange I N Tweeter Diaphragm ASSY 20 (In Cosmetic Baffle ASSY) Red White Black Black Black RedRed Red
