pioneer svs 77 lvwr service manual

Extracted text from pioneer svs 77 lvwr service manual (Ocr-read)

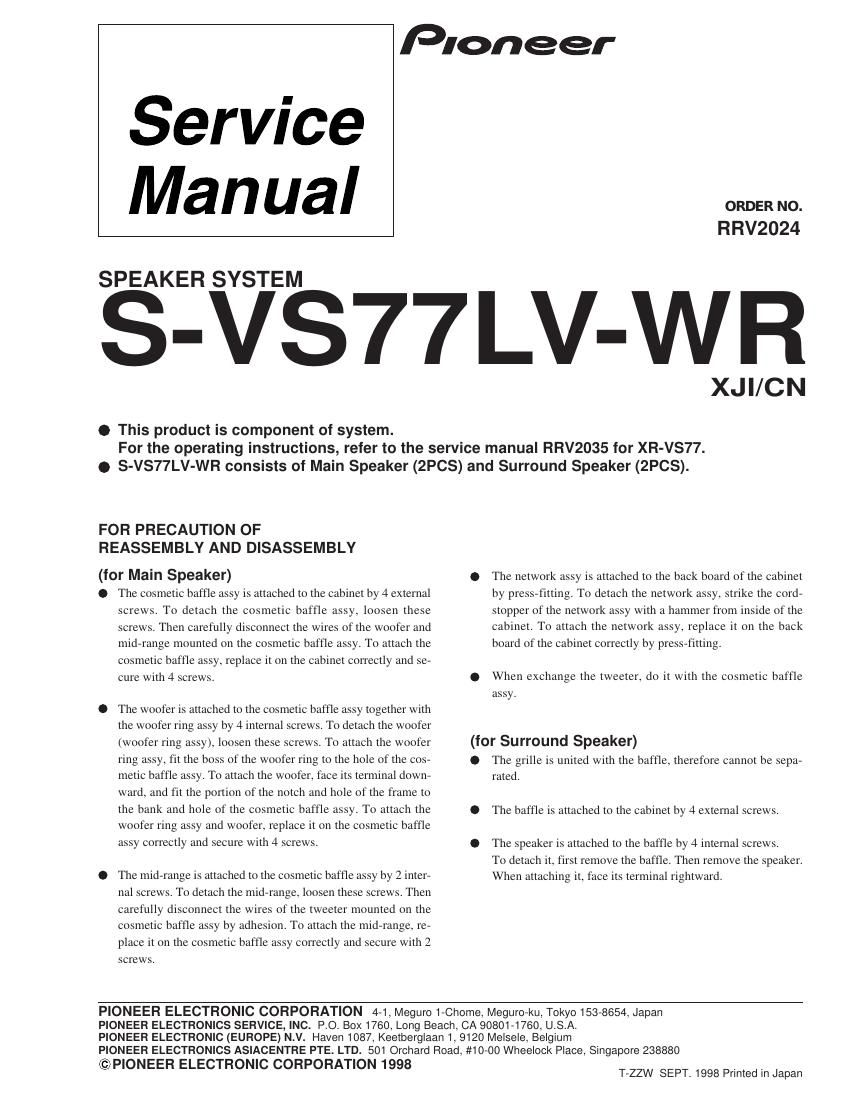

Page 1

2 NSP Cabinet (L) SMM1805 NSP Cabinet (R) SMM1839 Network ASSY SWN1577 NSP Origin Label SAX1349 Non Skid Pad SEC1374 Gasket (for width) SEC1359 Gasket (for height) SEC1375 NSP Acoustic Absorbent SMV1886 NSP Stamped Model Label (L) SME2811 NSP Model Label (L) SAN2611 NSP Stamped Model Label (R) SME2812 NSP Model Label (R) SAN2612 NSP Stamped Model Label (Surround) SME2813 NSP Model Label (Surround) SAN2615 NSP CS ASSY (for Surround) SMW1556 Screw (for Speaker) BYC40P130FZK Speaker D87CC45-53K Connecting Cord SDF1068 Cover SES1018 Grille ASSY SMG1621 NSP Badge 38 SAM1442 NSP Grille Cloth SAS1440 NSP Baffle Board SNK2321 NSP Cabinet SNK2322 Screw (for Speaker) TTZ40P080FMC Cosmetic Baffle ASSY (L) SXB1325 NSP Cosmetic Baffle (L) SNK2288 NSP Duct SNK2304 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024 Cosmetic Baffle ASSY (R) SXB1326 NSP Cosmetic Baffle (R) SNK2289 NSP Duct SNK2304 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024 Woofer Ring ASSY SXB1336 NSP Woofer Ring SNK2293 NSP Cosmetic Ring ASSY SXB1337 NSP Punching Net SNC1160 NSP Cosmetic Ring SNK2327 Speaker (Woofer) A16LU83-52D Speaker (Mid-range) D66AP45-53D Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-VS77LV-WR Screw (for Tweeter) BPZ30P100FMC Tapping Screw (for Cosmetic Baffle)SBA1162 Screw (for Woofer and BPZ40P160FMC Woofer Ring ASSY) Top Protector SHA2112 Top Protector SHA2125 (for Surround Speaker) Bottom Protector SHA2113 Bottom Protector SHA2124 (for Surround Speaker) PS Spacer A SHA2152 PS Spacer B SHA2153 NSP CSS Label SAX1338 Protection Sheet SHC1429 (for Surround Speaker) Packing Case SHG2147 NSP Polyethylene Bag S1 SHL1109 (for Surround Speaker) NSP Polyethylene Bag S5 SHL1212 For Packing Network ASSY (SWN1577) Woofer 2.2µF Midrange I N Tweeter Diaphragm ASSY 20 (In Cosmetic Baffle ASSY) Red White Black Black Black RedRed Red SCHEMATIC DIAGRAM Surround Speaker IN Gray /Black Gray Connecting Cord (SDF1068)
