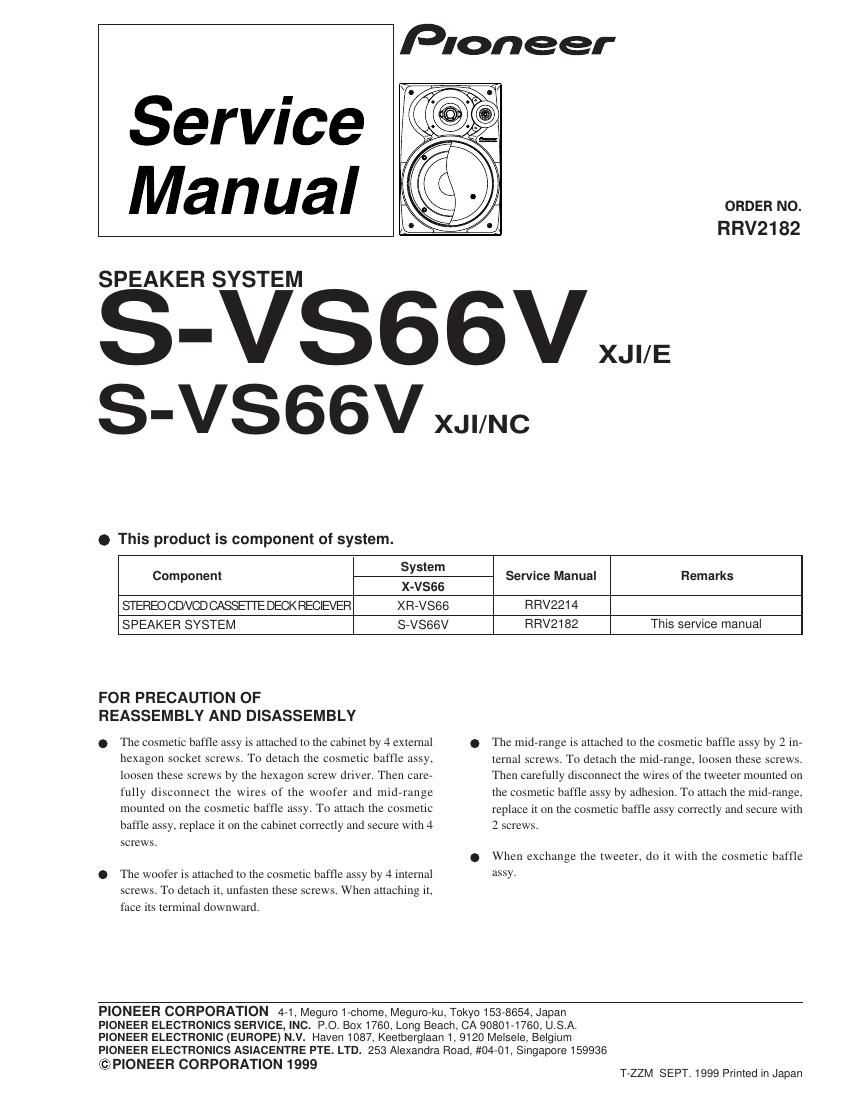

Page: 1 / 3
pioneer svs 66 v service manual

Extracted text from pioneer svs 66 v service manual (Ocr-read)


Page 1

2 S-VS66V Mark No. Description Part No. Network ASSY (SWN1617) SCHEMATIC DIAGRAM Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP Cabinet (L) SMM1857 NSP Cabinet (R) SMM1858 Network ASSY SWN1617 Gasket (for Baffle wide) SEC1436 Gasket (for Baffle height) SEC1437 Cosmetic Baffle ASSY (L) SXB1382 NSP Punching Net SNC1175 NSP Cosmetic Baffle (L) SNK2408 Diaphragm ASSY 20 SXE1092 NSP Ceramic Tweeter SCA1017 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 Cosmetic Baffle ASSY (R) SXB1383 NSP Punching Net SNC1175 NSP Cosmetic Baffle (R) SNK2409 Diaphragm ASSY 20 SXE1092 NSP Ceramic Tweeter SCA1017 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 Speaker (Woofer) A14LC83-52D Speaker (Mid-range) E52AP39-57D Screw (for Mid-range) BPZ40P080FMC Screw (for Woofer)BPZ40P100FMC Tapping Screw (for Cosmetic Baffle)SBA1161( for XJI/E Type ) NSP Stamped Model Label (L) SME2944 NSP Model Label (L) SAN2732 NSP Stamped Model Label (R) SME2945 NSP Model Label (R) SAN2733 ( for XJI/NC Type ) NSP Stamped Model Label (L) SME2967 NSP Model Label (L) SAN2757 NSP Stamped Model Label (R) SME2968 NSP Model Label (R) SAN2758 For Packing Top Protector SHA2198 Bottom Protector SHA2199 Packing Case (XJI/E Type) SHG2217 Packing Case (XJI/NC Type) SHG2233 NSP Polyethylene Bag S5 SHL1212 Woofer 2.2µF Midrange I N Tweeter Diaphragm ASSY 20 (In Cosmetic Baffle ASSY) Red White Black Black Black RedRed Red

Page 2

3 S-VS66V PRODUCT APPEARANCE 8 9 10 2Gasket Horizontal 2 Gasket Vertical 2 11 12 13 Punching Net 71 4 1 Screw(M4x10) Screw(M4x8) Cabinet (R) Screw(M4x55) Network Assy Speaker Speaker Speaker 1 1 4Model Label (R) 1 1 1 6 5 4 3 2 1Part name Num. No. Remarks Part name Num. No. Remarks 1 Cosmetic Baffle (R) Hexagon socket for Woofer for Mid-range Woofer Mid Tweeter 13 11 12 10 9 8 7 654 3 2 1 320.5 215 166 (242) Silk printing
