Pioneer svs 55 v service manual

This is the 2 pages manual for pioneer svs 55 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2

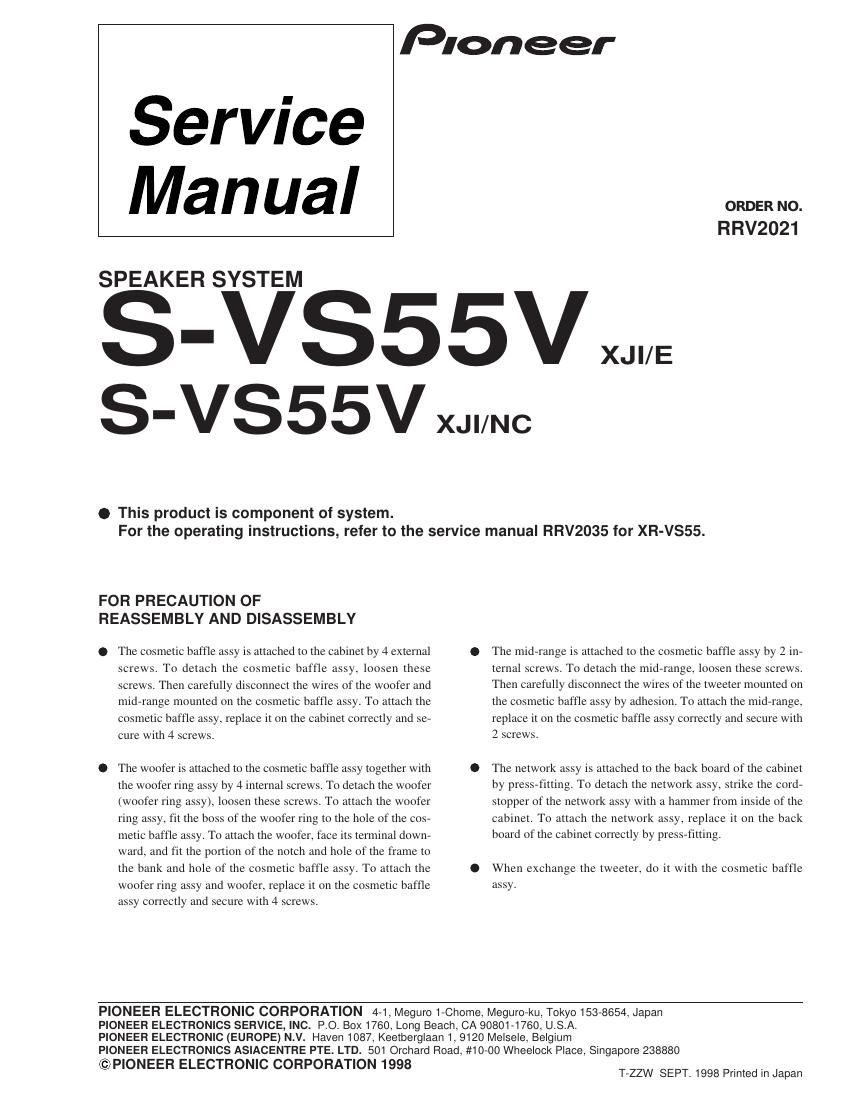

pioneer svs 55 v service manual

Extracted text from pioneer svs 55 v service manual (Ocr-read)


Page 1

2 NSP Cabinet (L) SMM1807 NSP Cabinet (R) SMM1840 Network ASSY SWN1577 Gasket (for width) SEC1359 Gasket (for height) SEC1375 Non Skid Pad SEC1374 NSP Acoustic Absorbent SMV1886 Cosmetic Baffle ASSY (L) SXB1329 NSP Duct SNK2304 Cosmetic Baffle (L) SNK2315 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024 Cosmetic Baffle ASSY (R) SXB1330 NSP Duct SNK2304 Cosmetic Baffle (R) SNK2316 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024 Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-VS55V SCHEMATIC DIAGRAM For Packing Network ASSY (SWN1577) Woofer 2.2µF Midrange I N Tweeter Diaphragm ASSY 20 (In Cosmetic Baffle ASSY) Red White Black Black Black RedRed Red Woofer Ring ASSY SXB1338 NSP Woofer Ring SNK2313 NSP Cosmetic Ring ASSY SXB1337 NSP Punching Net SNC1160 NSP Cosmetic Ring SNK2327 Speaker (Woofer) A16LU83-52D Speaker (Mid-range) D66AP45-53D Tapping Screw (for Cosmetic Baffle)SBA1161 Screw (for Tweeter) BPZ30P100FMC Screw (for Woofer and BPZ40P160FMC Woofer Ring ASSY) ( XJI/E Type ) NSP Stamped Model Label (L) SME2778 NSP Model Label (L) SAN2582 NSP Stamped Model Label (R) SME2779 NSP Model Label (R) SAN2583 ( XJI/NC Type ) NSP Stamped Model Label (L) SME2848 NSP Model Label (L) SAN2601 NSP Stamped Model Label (R) SME2849 NSP Model Label (R) SAN2602 Top Protector SHA2112 Bottom Protector SHA2113 Protection Sheet S3 SHC1731 NSP Polyethylene Bag S5 SHL1212 Packing Case ( XJI/E Type) SHG2104 Packing Case ( XJI/NC Type) SHG2149
