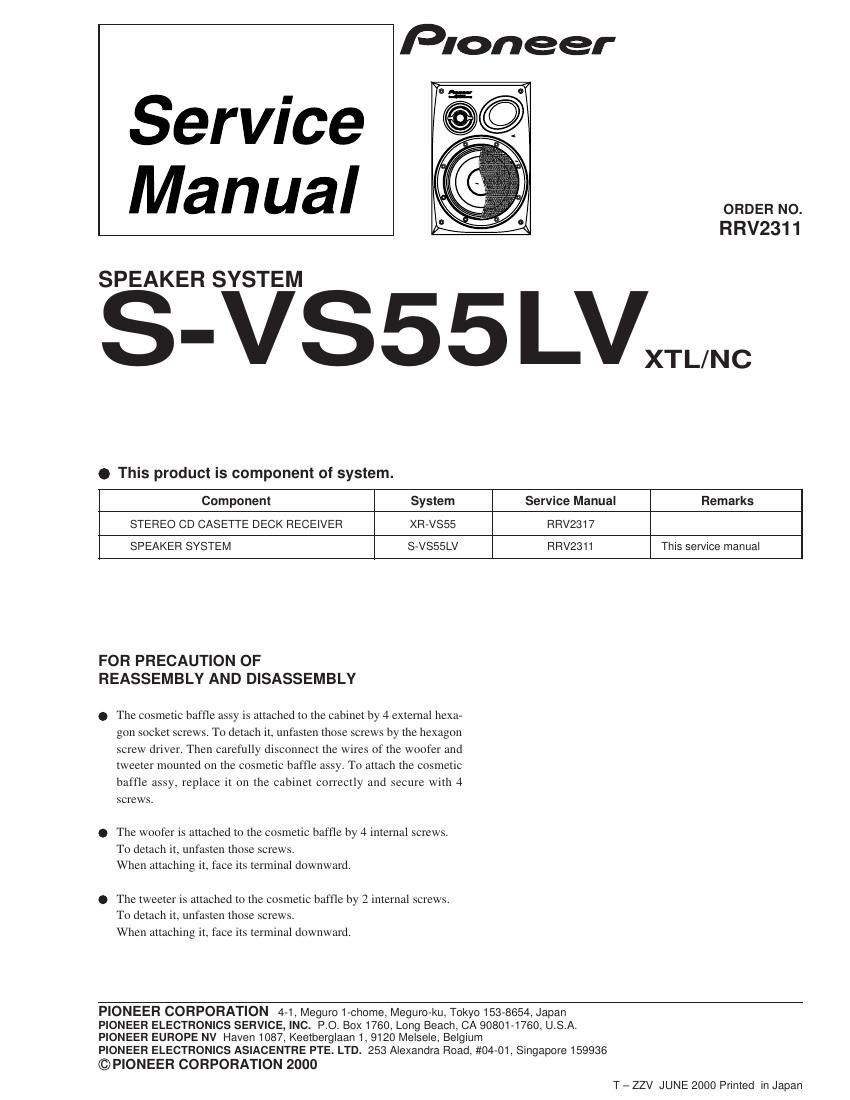

Pioneer svs 55 lv service manual
This is the 3 pages manual for pioneer svs 55 lv service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer svs 55 lv service manual (Ocr-read)
Page 1
S-VS55LV 2 NSP Cabinet (L) SMM1824 NSP Cabinet (R) SMM1825 Network ASSY SWN1556 Gasket (length) SEC1412 Gasket (width) SEC1413 NSP Stamped Model Label (L) SME3070 NSP Model Label (L) SAN2857 NSP Stamped Model Label (R) SME3071 NSP Model Label (R) SAN2858 Baffle ASSY (L) SXB1333 NSP Cosmetic Baffle (L) SNK2282 NSP Cosmetic Ring ASSY (L) SXB1335 NSP Punching Net SNC1159 NSP Cosmetic Ring SNK2325 Baffle ASSY (R) SXB1334 NSP Cosmetic Baffle (R) SNK2283 NSP Cosmetic Ring ASSY (R) SXB1335 NSP Punching Net SNC1159 NSP Cosmetic Ring SNK2325 Speaker (Woofer) B13EU70-52D Speaker (Tweeter) E52AP39-55D Screw (for Tweeter) BPZ30P080FMC Screw (for Woofer) BPZ40P100FMC hexagon socket Screw SBA1161 (for cosmetic baffle) Mark No. Description Part No. For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. Top Protector SHA2148 Bottom Protector SHA2149 Protection Sheet S3 SHC1730 Spacer SHD1042 Packing Case SHG2291 NSP Polyethylene Bag S4 SHL1229 Network ASSY (SWN1556) SCHEMATIC DIAGRAM Woofer 2.7µF Tweeter INPUT Red White Red Black BlackRed
Page 2
S-VS55LV 3 No. 1 2 3 4 5 6 71 8 129 114 1 7 6 52 103 1 1 1 1 1 1 Speaker Woofer M4 ´10 (for Woofer) M4´55 (for Hexagon socket) M3 ´8 (for Tweeter) Tweeter Speaker Cabinet (R) Network Assy Cosmetic Baffle (R) Cosmetic Ring Punching NetScrew Screw Screw Model Label (R) Gasket4 4 2 1 4 8 9 10 11 12 13 14 Num Part name Remarks No. Num Part name Remarks 194 (214) 300 PRODUCT APPEARANCE
