Pioneer svs 500 vlr service manual

This is the 3 pages manual for pioneer svs 500 vlr service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3
pioneer svs 500 vlr service manual

Extracted text from pioneer svs 500 vlr service manual (Ocr-read)


Page 1

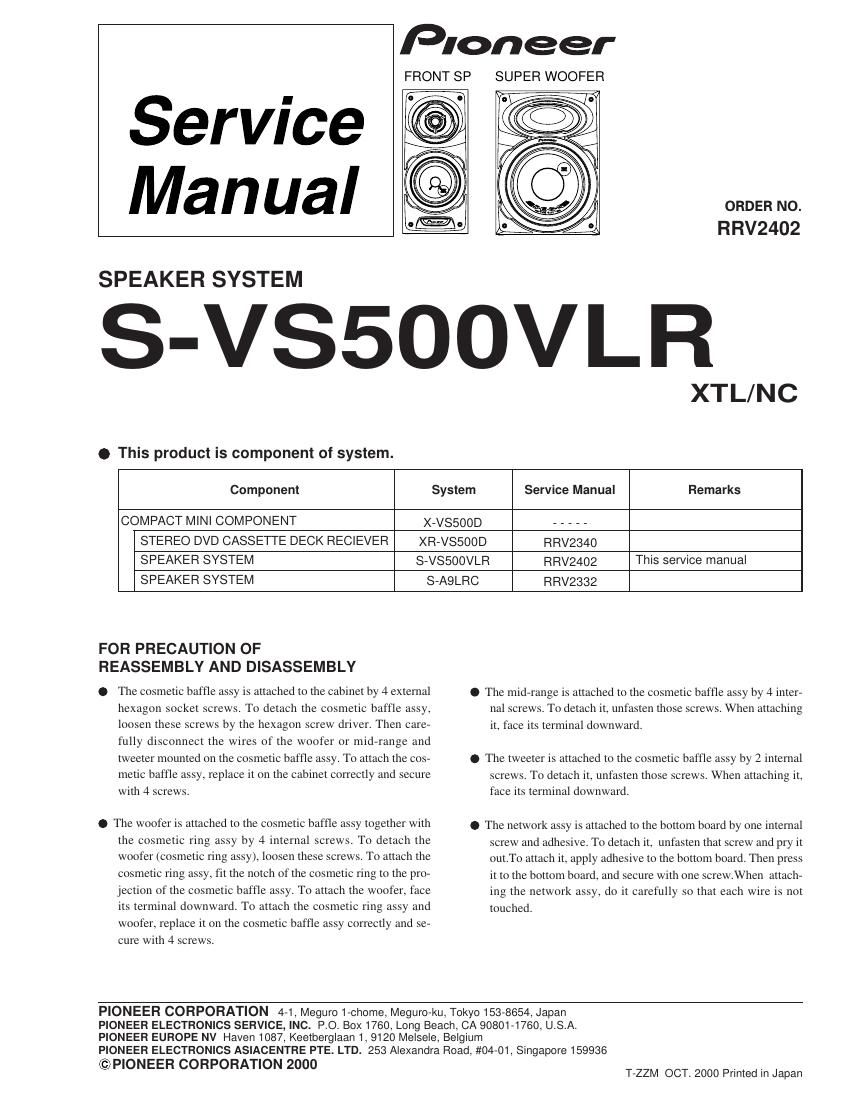

2 S-VS500VLR Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP CS ASSY (Front SP) SMW1613 NSP Cabinet SMM1916 Network ASSY SWN1653 Non Skid Pad SEC1416 Gasket (Baffle Height) SEC1447 Gasket (Baffle Wide) SEC1502 Input Terminal SKX1065 NSP Stamped Model Label SME3103 NSP Model Label SAN2894 NSP Acoustic Absorbent SMV2011 Cosmetic Baffle ASSY SXB1414 NSP Punching Net SNC1184 NSP Cosmetic Baffle SNK2468 Speaker (Woofer) W10DC61-53H Speaker(Mid-range) E52AP39-58F Screw (for TW/MID) BPZ40P080FMC Screw (for Network ASSY) BYC40P250FZB Tapping Screw (for Cos. Baffle)SBA1162 NSP Staple 80/8 BEA ZMA-8008B Top Protector SHA2247 Bottom Protector SHA2248 Protection Sheet SHC1730 NSP Polyethylene Bag S4 SHL1229 NSP CS ASSY (Super Woofer) SMW1614 NSP Cabinet SMM1917 Network ASSY SWN1654 Non Skid Pad SEC1416 Gasket (Baffle Wide) SEC1503 Gasket (Baffle Height) SEC1504 Input Terminal SKX1066 NSP Stamped Model Label SME3104 NSP Model Label SAN2895 NSP Acoustic Absorbent SMV1916 Cosmetic Baffle ASSY SXB1415 NSP Duct SMR1317 NSP Cosmetic Baffle SNK2469 Cosmetic Ring ASSY SXB1419 NSP Punching Net SNC1183 NSP Cosmetic Ring SNK2486 Speaker B18LU86-51F Screw (for WF,Cos. Ring ASSY)BPZ40P160FMC Screw (for Network ASSY) BYC40P300FZB Tapping Screw (for Cos. Baffle)SBA1162 NSP Staple 80/8 BEA ZMA-8008B Top Protector SHA2249 Bottom Protector SHA2250 Protection Sheet SHC1730 NSP Polyethylene Bag S5 SHL1230 For Packing Speaker Cord SDS1096 Speaker Cord SDS1097 Packing Case SHG2313 Network ASSY (SWN1653) for Front SP SCHEMATIC DIAGRAM Network ASSY (SWN1654) for Super Woofer Mid-Range I N Red Red BlackGreen White White Tweeter 1.8µF/63V 0.39mH 82µF/50V Woofer I NRed BlackBlue White 1.2mH

Page 2

3 S-VS500VLR PRODUCT APPEARANCE 8 9 1011 12 13 14 15 16 17 18 19 20 7Speaker (Mid-range) Speaker (Woofer) Cabinet Cosmetic Baffle ASSY Input Terminal Acoustic Absorbent Gasket ----- Non Skid Pad ----- 6 5 4 3 2 1Part name Num. No. Remarks Part name Num. No. Remarks 8 9 10Tapping Screw Model Label Network ASSY Screw 1 1 1 1 1 1 2 44 1 1 1 11 12 13 14 15 16 17 18 19 20 7Speaker Cabinet Cosmetic Baffle ASSY Woofer Ring ASSY Input Terminal Acoustic Absorbent Gasket ----- Non Skid Pad -----B18LU86-51F 6 5 4 3 2 1Part name Num. No. Remarks Part name Num. No. Remarks SBA1162 BYC40P300FZB SUPER WOOFER FRONT SPEAKER 320 205.2 145 3 7 9 12 2 4 1 6 5 11 1314 (RED-WHITE CORD) (GREEN-WHITE CORD)(RED-BLACK CORD) 235 166 (20) 320 230 2 7 9 12 1 43 6 5 11 1314 (RED-BLACK CORD) (BLUE-WHITE CORD)194 281.5 (20) Tapping Screw Model Label Network ASSY Screw4 1 1 1SBA1162 BYC40P250FZB E52AP39-58F W10DC61-53H 1 1 1 1 1 1 2 4
