Pioneer svs 100 v service manual

This is the 3 pages manual for pioneer svs 100 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3
pioneer svs 100 v service manual

Extracted text from pioneer svs 100 v service manual (Ocr-read)

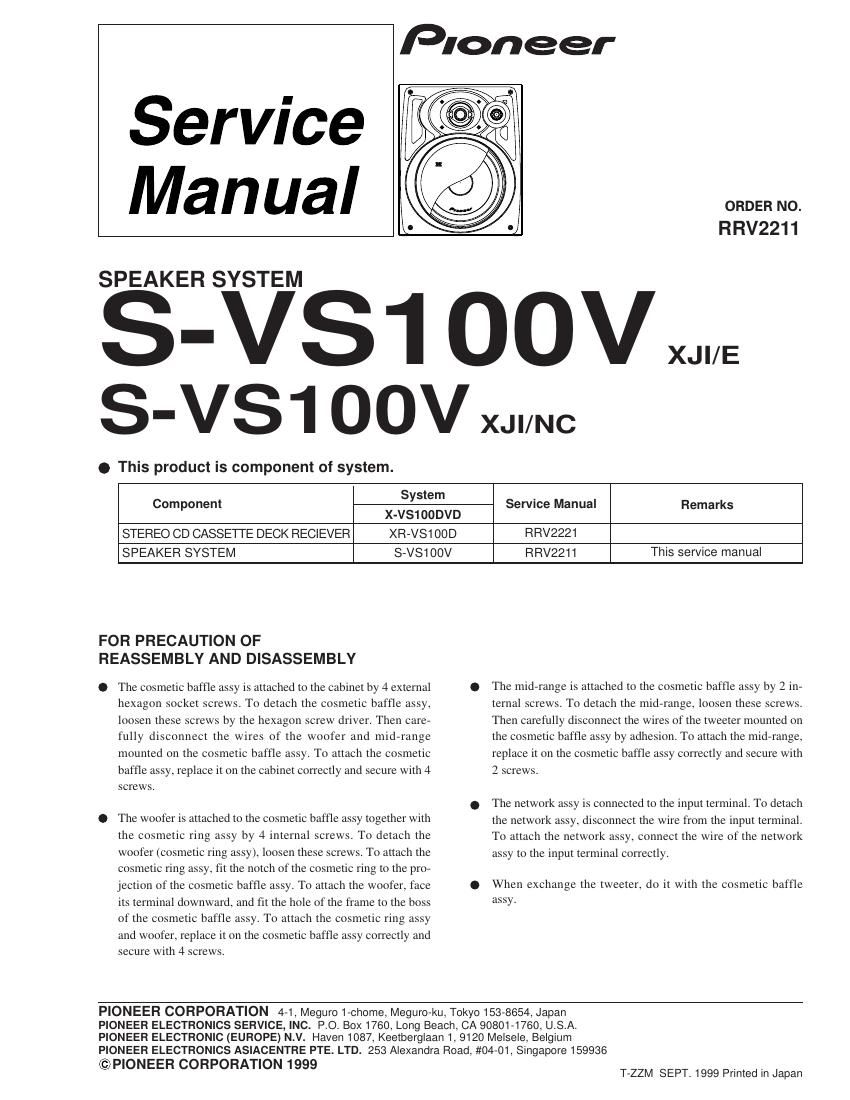

Page 1

2 S-VS100V Mark No. Description Part No. Network ASSY (SWN1609) SCHEMATIC DIAGRAM Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP Cabinet SMM1861 Network ASSY SWN1609 Input Terminal KKX1014 Non Skid Pad SEC1374 Gasket (for Baffle vertical) SEC1437 Gasket (for Baffle horizontal) SEC1439 NSP Acoustic Absorbent SMV1886 Cosmetic Baffle ASSY (L) SXB1387 NSP Gasket SEC1451 NSP Cosmetic Baffle (L) SNK2415 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024 Cosmetic Baffle ASSY (R) SXB1388 NSP Gasket SEC1451 NSP Cosmetic Baffle (R) SNK2416 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024Cosmetic Ring ASSY SXB1390 NSP Punching Net SNC1176 NSP Cosmetic Ring SNK2425 Speaker (Woofer) B18LU83-52D Speaker (Mid-range) D66AP45-56D Screw (for Mid-range) APZ30P080FMC Screw (for Woofer, Cos. Rig Assy) BPZ40P160FMC Tapping Screw (for Cosmetic Baffle ASSY)SBA1161 ( for XJI/E Type ) NSP Stamped Model Label (L) SME2942 NSP Model Label (L) SAN2730 NSP Stamped Model Label (R) SME2943 NSP Model Label (R) SAN2731 ( for XJI/NC Type ) NSP Stamped Model Label (L) SME2984 NSP Model Label (L) SAN2771 NSP Stamped Model Label (R) SME2985 NSP Model Label (R) SAN2772 For Packing Speaker Wire SDS1057 Top Protector SHA2202 Bottom Protector SHA2203 Packing Case (XJI/E Type) SHG2216 Packing Case (XJI/NC Type) SHG2240 NSP Polyethylene Bag S5 SHL1212 Woofer 1.8 µF Mid-range I N Tweeter Diaphragm ASSY 20 (In Cosmetic Baffle ASSY) Blue White White Black White RedBlue Red

Page 2

3 S-VS100V PRODUCT APPEARANCE 8 9 10 4Model Label (R) 1 Non Skid Pad 4 11 12 13 14 Gasket 72 1 1 Acoustic Absorbent Screw (M4x55) Cosmetic Ring Assy – –––– Cosmetic Baffle Assy (R)Cabinet Speaker Speaker 1 1 – –––– 1 1 6 5 4 3 2 1Part name Num. No. Remarks Part name Num. No. Remarks 1 Network Assy for Cosmetic Baffle Woofer Mid–range – –––– Input Terminal 15 1 *This product appearance shows Rch. Lch is symmetrical to center line. red white blue white red black to Woofer terminals from TW 260 320 15 2 4 12 10 11 9 76 5 3 1 252.4 166 terminalsTo MID
