Pioneer sst 404 service manual
This is the 5 pages manual for pioneer sst 404 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sst 404 service manual (Ocr-read)

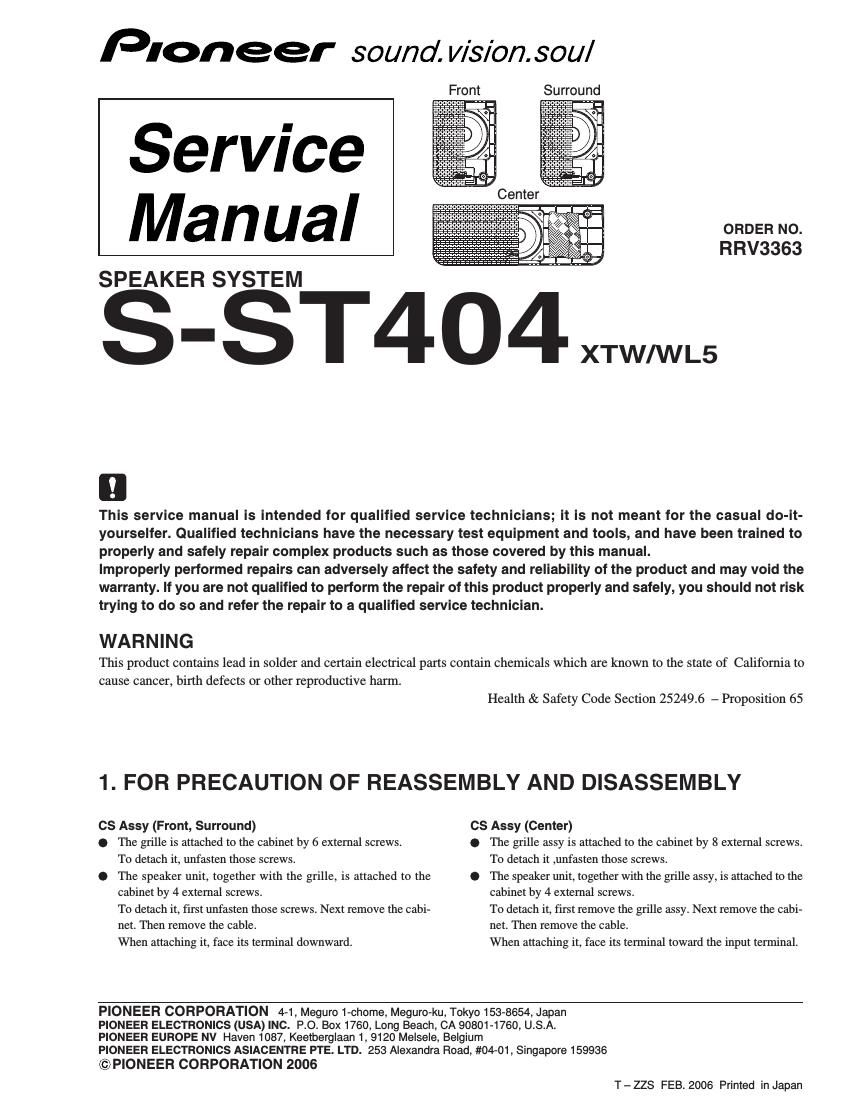

Page 1
2 1 23 4 1234 C D F A B E S-ST404 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2. PARTS LIST 8 3 7 4 9 1 2 6 5 NSP 1 CS Assy (Front, Surround) SMW1930 NSP 2 CS Assy (Center) SMW1931 NSP 3 Accessory Set SME3720 Speaker Wire (FL: White) SDS1174 Speaker Wire (FR: Red) SDS1175 Speaker Wire (SL: Blue) SDS1176 Speaker Wire (SR: Gray) SDS1177 Speaker Wire (C: Green) SDS1178 NSP Screw Set SME3721 Screw CMZ50P120FNC Polyethylene Bag S0 SHL1314 Non Skid Pad (for Subwoofer) SEC2070 Non Skid Pads SEP1240 (for Front, Center, Surround) Polyethylene Bag SHL1251 Packing Parts List NSP Stand Set SME3722 4Stand SNK2922 5Polyethylene Bag S1 SHL1414 6Protector SHA2532 7Polyethylene Bag S2 SHL1417 (for Center) 8Polyethylene Bag S2 SHL1420 (for Front, Surround) 9Packing Case SHG2725 Mark No. Description Part No. Mark No. Description Part No. 2-1. Packing
Page 2
3 1 234 1 23 4 C D F A B E S-ST404 21 22 20 19 23 17 16 30 26 or 27 or 28 or 29 25 (x6) 24 18 136 100 CS Assy (Front, Surround) Parts List NSP 16 Cabinet SNK2923 17 Grille SMG1867 NSP 18 Badge 28 SAM1506 NSP Grille Cloth SAS1606 NSP Baffle SNK2924 19 Connecting Cord SDD1345 20 Input Terminal SKX1096 NSP 21 Acoustic Absorbent SMT1330 NSP 22 Plastic Cap SNK2790 23 Speaker K77DC55-51C 24 Screw (for Input Terminal) BPZ35P080FTC 25 Screw (for Cabinet) BPZ35P120FTB NSP 26 Model Label (FL) SAN3804 NSP 27 Model Label (FR) SAN3805 NSP 28 Model Label (SL) SAN3806 NSP 29 Model Label (SR) SAN3807 NSP 30 Caution Label SRW1075 2-2. CS Assy (Front, Surround) Mark No. Description Part No.
