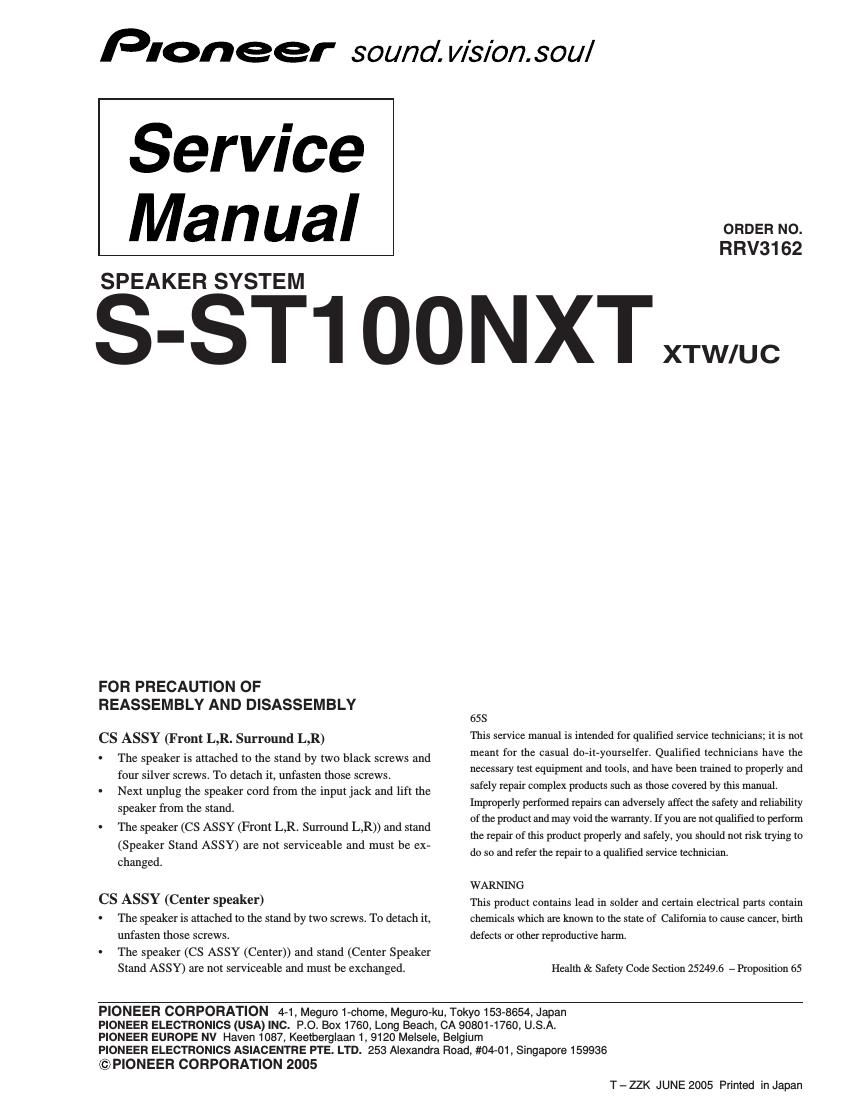

Pioneer sst 100 nxt service manual

Page 1

2 1 23 4 1234 C D F A B E S-ST100NXT Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS Assy (Front L) SMW1893 CS Assy (Front R) SMW1894 CS Assy (Center) SMW1897 CS Assy (Surround L) SMW1895 CS Assy (Surround R) SMW1896 SP Stand Assy SXG1085 Screw BMZ40P060FNC Screw BMZ50P050FTB Screw BPZ40P120FMC Screw BPZ50P140FNC Center SP Stand Assy SXG1069 NSP Accessories Set SME3669 Screw (for Fastener) BMZ50P080FNC Screw (for Center SP) BMZ50P120FNC Screw (for FR SP-Stand) PMZ50P200FTB Speaker Wire (White) SDS1174 Speaker Wire (Red) SDS1175 Speaker Wire (Blue) SDS1176 Speaker Wire (Gray) SDS1177 Speaker Wire (Green) SDS1178 Non Skid Pad SEC1912 Polyethylene Bag SHL1251 Polyethylene Bag S0 ( for Screw )SHL1314 NSP Accessories Set SME3445 Polyethylene Bag S1 SHL1371 Fastener Assy SXG1070 NSP Gasket SEC1767 Fastener SNB1069 Accssories Set SME3670 Screw (for Bracket) BMA40P080FTB Screw (for Hook-Center SP) BMZ50P080FTB Gasket (99 x 15) SEC1798 Gasket (13 x 8) SEC1799 Gasket (16 x 13) SEC1800 Polyethylene Bag S1 SHL1312 Polyethylene Bag S0 (for Screw) SHL1314 Polyethylene Bag S0 (for Bracket )SHL1341 Hook SNA1420 Bracket SNA1421 Supplement Inst. (English,French) SRK1028 Network Assy (SWN1722) SCHEMATIC DIAGRAM L C WHITE(-) BLUE(+) RED(+) WHITE(-) BLUE(+) WHITE(-) WHITE(-) BLUE(+) Tw NXT EXCITER NXT EXCITER NXT EXCITER IN (+) (-) C=1.0µF 0.20mH For Packing Protector SHA2400 Outside Protector SHA2401 Inside Protector SHA2403 Protection Sheet SHC1799 Packing Case SHG2674 NSP Polyethylene Bag S1 SHL1362 (for SP & Stand Assy) NSP Polyethylene Bag S4 SHL1384 (for SP Stand Assy) Polyethylene Bag S2 SHL1370 (for CTSP Stand) Mark No. Description Part No.
