pioneer sq 180 lrw service manual

Extracted text from pioneer sq 180 lrw service manual (Ocr-read)

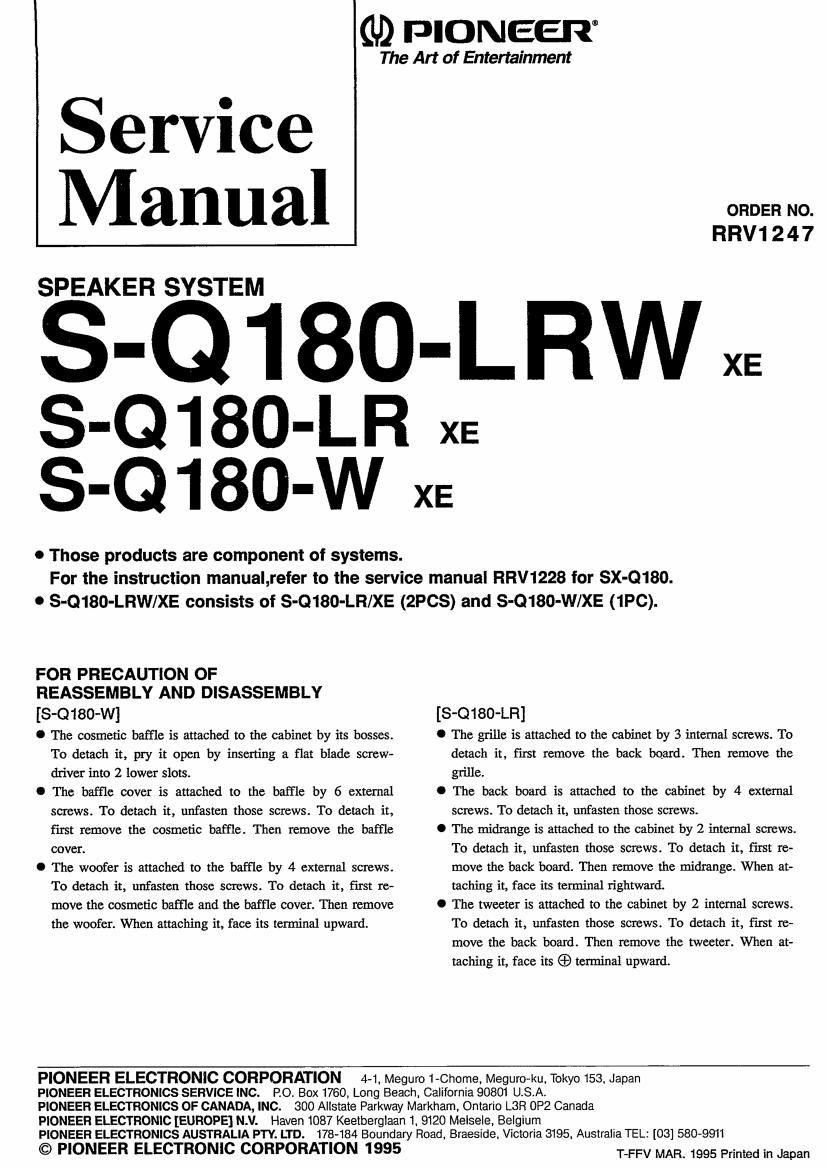

Page 1

(U) PIONEER

The Art of Entertainment

Service
Manua

SPEAKER SYSTEM

-Q180-LRW x.

S-Q180-LR XE
S'Q180'W XE

0 Those products are component of systems.
For the instruction manual,refer to the service manual RRV1228 for SX-Q180.
0 S-Q180-LRW/XE consists of S-Q180-LR/XE (2PCS) and S-Q180-W/XE (1PC).

ORDER No.
RRV1 2 4 7

FOR PRECAUTION OF

REASSEMBLY AND DISASSEMBLY

[S-Q180-W]

O The cosmetic baffle is attached to the cabinet by its bosses.
To detach it, pry it open by inserting a flat blade screw-
driver into 2 lower slots.

0 The baffle cover is attached to the baffle by 6 external
screws. To detach it, unfasten those screws. To detach it,
first remove the cosmetic baffle. Then remove the baffle
cover.

0 The woofer is attached to the baffle by 4 external screws.
To detach it, unfasten those screws. To detach it, first re-
move the cosmetic baffle and the baffle covert Then remove
the woofer. When attaching it, face its terminal upward.

[S-Q180-LR]

O The grille is attached to the cabinet by 3 internal screws. To
detach it, first remove the back board. Then remove the
grille.

O The back board is attached to the cabinet by 4 external
screws. To detach it, unfasten those screws.

0 The midrange is attached to the cabinet by 2 internal screws.
To detach it, unfasten those screws. To detach it, first re-
move the back board. Then remove the midrange. When at-
taching it, face its terminal rightward.

O The tweeter is attached to the cabinet by 2 internal screws.
To detach it, unfasten those screws. To detach it, first re»
move the back board. Then remove the tweeter. When at-
taching it, face its (9 terminal upward.

PIONEER ELECTRONIC CORPORATION 44, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. P.O. Box 1760, Long Beach. California 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3H 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1. 9120 Melsele, Belgium

PIONEER ELECTRONICS AUSTRALIA PTV. LTD. 178-184 Boundary Road, Braeside. Victoria 3195. Australia TEL: [03] 580-9911

© PIONEER ELECTRONIC CORPORATION 1995

T-FFV MAR. 1995 Printed in Japan

Page 2

S-Q1 80-LRW, S-Q180-LR, S-Q1 80-W

PARTS LIST

NOTES:

0 Parts marked by NSP are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the port. Therqore, when replacing, be sure to

use parts of identical designation.
0 Parts marked by Q" are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.

0 S-0 1 80-W

Mark No. Description Parts No.
Connect cord FRDD-OIS
Input terminal FRKX-004
Cosmetic baffle FRNK-l 19
Speaker (Woofer) P14EC75 - 51 C-1
Screw (for woofer) BYC40P200FZB
Screw (for baffle) BYC40P500FZB

0 S-Q180-LR

Mark No. Description Parts No.
Grille FRMG - 076
Connect cord FRDD- 019
Speaker (Midrange) B7OAC45 - 54F

Speaker (Tweeter)

E52AP45 - 53F

Screw (for speaker and grille) BPZ30P120PZK
Screw (for back board) BPZAOPZOOI-ZK
For Packing [S-Q180-LRW]
Mark No. Description Parts No.
1 Connect cord FRDD-OZO
2 Top left protector FRHA-075
3 Top right protector FRI-IA 076
4 Bottom left protector FRHA -O77
5 Bottom right protector FRI-IA -080
6 Protection mat S3 FRHC-OZl
7 Protection mat 82 FRHC-OZZ
8 Packing case FRHG-135

SCHEMATIC DIAGRAMS

' S-Q180-W

9
INPUT

@0-

BLU

G
WHT

Woofer

PACKING


Speaker
(S-QtSO-W

0 S-Q180-LR

(*3
INPUT
9

®\__

)

Fig.1

GRY

(9

G)

WHT e

RED @

Speaker
(S-Q180-LR)

Midrange

GRY (WHT str 1 pa)

Tweeter
