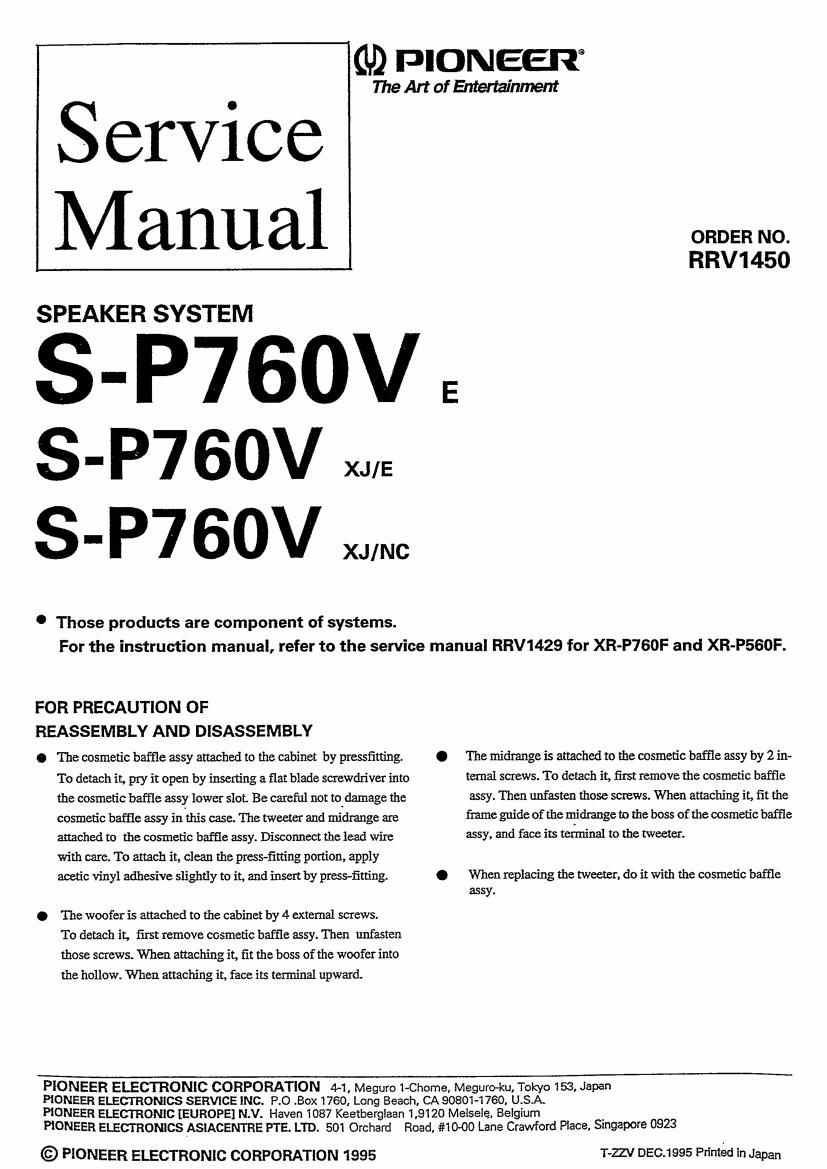

Page 1
GD PIONEER"
7119 Art of Entertainment
Service
Manual
RRV1450
SPEAKER SYSTEM
S'P760V E
S-P760V
S'P760V XJINC
0 Those products are component of systems.
For the instruction manual, refer to the service manual RRV1429 for XR-P760F and XR-P560F.
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
O The cosmetic baffle assy attached to the cabinet by pressfitting. O The midrange is attached to the cosmetic baffle assy by 2 in
To detach it, pry it open by inserting a flat blade screwdriver into ternal screws. To detach it, first remove the cosmetic baffle
the cosmetic baffle assy lower slot. Be careful not to damage the my Then unfasten those screws. When attaching it, fit the
cosmetic baffle assy in this case. The tweeter and milimge are frame guide of the midrange to the boss of the cosmetic baffle
attached to the cosmetic baffle assy. Disconnect the lead wire 3553. and face its terminal to the Warner.
with care. To attach it, clean the press-fitting portion, apply
acetic vinyl adhesive slightly to it, and insert by press-fitting. Q When replacing the tweeter, do it with the cosmetic baffle
assy.
O The woofer is attached to the cabinet by 4 external screws.
To detach it, first remove cosmetic baffle assy. Then unfasten
those screws. When attaching it, fit the boss of the woofer into
the hollow. When attaching it, face its terminal upward.
PIONEER ELECTRONIC CORPORATION AH, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
HONEER ELECTRONICS SERVICE INC. P.O .Box 1760, Long Beach, CA 90801-1760, USA
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1,9120 Melsele. Belgium _
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road. #1000 Lane Crawford Place, Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1995 T'ZZV DEC-1995 Pfiméd in Japan
Page 2
\ S-P7 60V
IPARTS LIST
NOTES:
0 Park marked by NSPare generally unavailable because they are not in our Master Spare Parts Lixt.
' The A"mark found on some component parts indicates the impartmce of the safety factor afthe part. Therefore, when replacing,
be sure to use parts of identical designation.
0 Parts marked by (9 are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.
For Packing
iMark No. Description Parts No. No. Description Parts No.
New my 3WN1474 Speaker cord (IE) 303-001
309? . 3501203 Speaker cord (lXJ/E, IXJINC) 51331005
Padangmetwork lead Wire) SEC1268 Protector-T (for top) (IE) SH A191 5
19" Emma! 5'01020 Protector-T (for top) (/XJIE, lXJ/NC) SHA1932
SUD duct SNK1825 Protector-B ( for bottom ) (IE) SHA1916
Protector-B (for bottom) SHA1933
Cosmetic baflle assy(L) SXB1244 (IXJ/E IXJINC)
Ooamefic baflle assy(R) SXB1245
Speake 3(W°°fe') SWM1032 Protection mat s4 SHC1588
Speaker(Midrange) ESZAP45-57F Packing caes (IE) SHG1809
Screw(for midrange) PNCSDF120FMC Packing caes(/X,J IE) SHG1844
Sorew(for woofer) (IE) SBA-142 Packing caes(/XJ/N0) SHG1845
Screw(for woofer) (/XJIE,/XJ/NC) BYC40F250FMC
[Cosmetic baflle assy(L),(R)]
Diaphragm assyZO SXE1063
[Diaphragm assy20]
Closed packing SEC1211
NETWORK ASSY (swm474) No. Description Parts No.
BLU @- ''''''''''''' 1 BLU
lNPUT . l 8 [Network assy]
C1 acitor 2.2 CES42R2KA
#379! . T Cap ( PF)
i I Woofer
. c 1 ' RED
; 2.2 pF ' 69
1. _ _ _________ l WHT ,
_ . _ . Mia}?
BLK I
:g g
. RED !
l ......... J
Diaphragm assy 20
( In cosmetic baffle assy)
