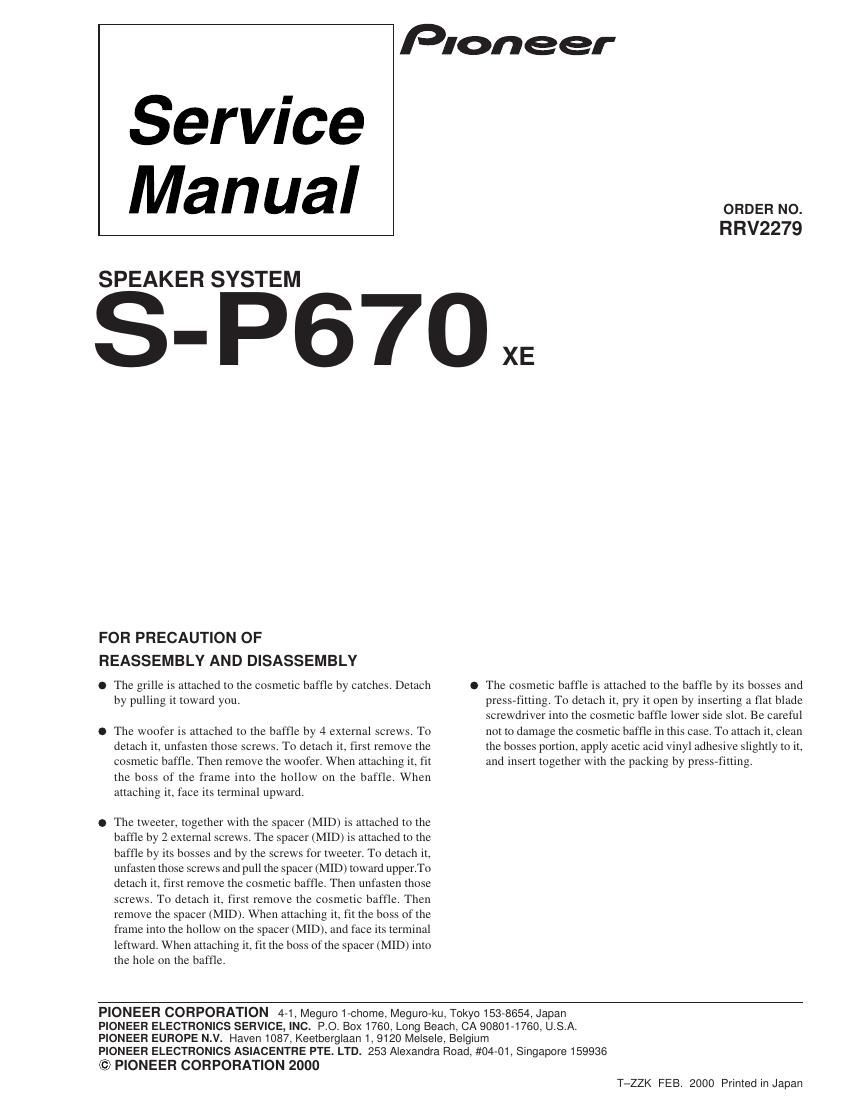

pioneer sp 670 service manual

Extracted text from pioneer sp 670 service manual (Ocr-read)


Page 1

S-P670 2 NOTES : Parts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Mark No. Description Part No. PARTS LIST Mark No. Description Part No. Grille (L) Assy FRMG-168 Grille (R) Assy FRMG-169 Network Assy FRWN-153 Skid Pads FREC-023 Input Terminal FRKX-013 Sub Duct FRNK-245 Spacer (MID) FRNK-353 Cosmetic Baffle (L) FRNK-347 Cosmetic Baffle (R) FRNK-348 Speaker (Woofer) P15EN76-54F Speaker (Tweeter) E52AP45-58H Screw (for Woofer) FRBA-011 Screw (for Tweeter) FRBA-013Speaker Cord FRDD-041 Operating Instructions FRRD-132 Protector (Top) FRHA-131 Protector (Bottom) FRHA-136 Protection Mat S3 FRHC-028 Packing Case FRHG-249 SCHEMATIC DIAGRAM Woofer 1.0 mF Tweeter INPUT Black Black Black Black White Red NETWORK ASSY (FRWN-153) For Packing
