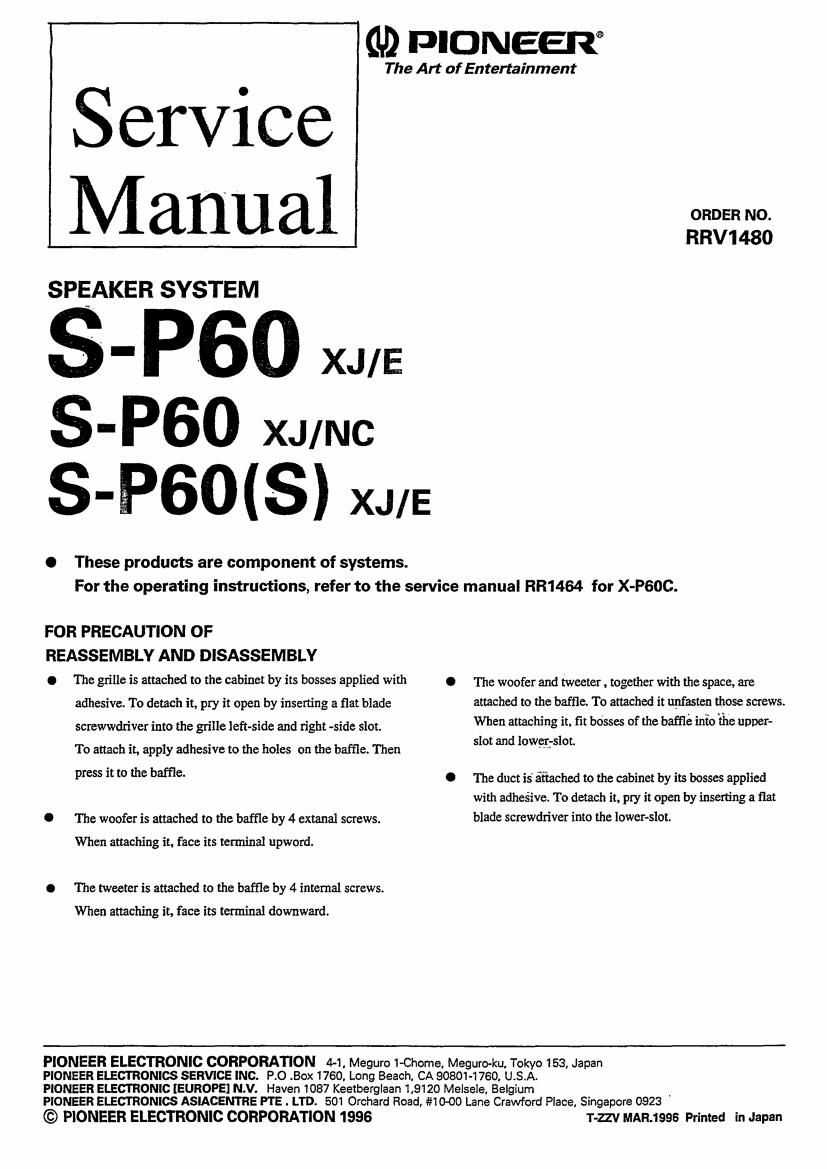

Page 1

(ID IDICJNEERe

The Art of Entertainment

Service
Manual gm;
'P60 XJ/E

S-P60 XJ/NC
3960(5) XJ/E

0 These products are component of systems.
For the operating instructions, refer to the service manual RR1464 for X-PGOC.

FOR PRECAUTION OF

REASSEMBLY AND DISASSEMBLY

O The grille is attached to the cabinet by its bosses applied with o The woofer and tweeter , together with the space, are
adhesive. To detach it, pry it open by inserting a flat blade attached to the baffle. To attached it unfasten those screws.

When attaching it, fit bosses of the baffle into the upper-
slot and lower-slot.

screwwdriver into the grille left-side and right -side slot.
To attach it, apply adhesive to the holes on the baffle. Then

Press it '° 3 baffle- o The duct is' attached to the cabinet by its bosses applied
with adhesive. To detach it, pry it open by inserting a flat
0 The woofer is attached to the baffle by 4 extanal screws. blade screwdriver into the lower-slot.

When attaching it, face its terminal upward.

O The tweeter is attached to the baffle by 4 internal screws.
When attaching it, face its terminal downward.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. FD .Box 1760, Long Beach, CA 90801-1760. U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1,9120 Melsele, Belgium .
PIONEER ELECTRONICS ASIACENTRE PTE . LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1996 T-ZZV MAmsss Primed in Japan

Page 2

S-P60,S-P60(S)
PARTS LIST

NOTES:

Part5 marked by NSPare generally unavailable becauxe they are not in our Master Spare Parts List.

0 The "A mark found on same component parts indicates the importance of the safety factor of the pan. Therefore, when replacing,
be sure to use parts of identical designation.

- Parts marked by © are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.

For packing
Mark No. Description Parts No. Mark No. Description Parts No.
Capacitor(3.3p F) CES43R3KA Top protector SHA1953
CS cord assy SDX1024 Bottom protector SHA1954
Grille SMGi486 Carton board SHD1031
Speaker (Woofer) SWM9011 Polyethylene bag 54 SHL1176
Speaker (Tweeter) SW89012 Packing case(S-PSO(S)/XJ/E Model) SHG1860

SCHEMATIC DIAGRAM

CS'CORD AS'SY l8 DX1024)

._._-_._-_._._.

l RED

Tweeter
