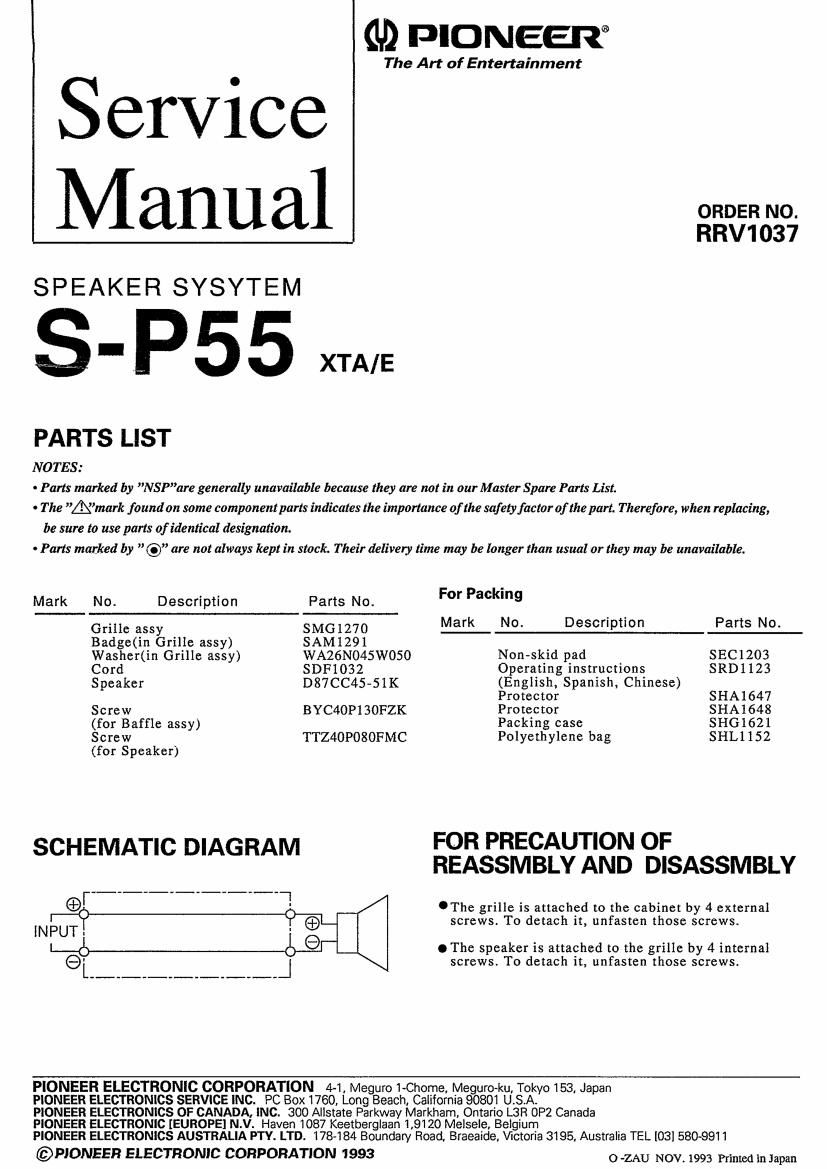

Page 1

GD PIONEEIT

The Art of Entertainment

Service
Manual

SPEAKER SYSYTEM

S-P55

PARTS LIST

NOTES:

ORDER NO.
RRV1037

- Parts marked by NSP"are generally unavailable because they are not in our Master Spare Parts List.
- The Amark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing,

be sure to use parts of identical designation.

- Parts marked by " @ are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.

Mark No. Description Parts No.
Grille assy SMGIZ70
Badge(in Grille assy) SAM1291
Washcr(in Grille assy) WA26N045W050
Cord SDF1032
Speaker D87CC45-51K
Screw BYC4OP130FZK
(for Baffle assy)

Screw TTZ40P080FMC
(for Speaker)
I"_ ''''''''''''' _!
1 ? Y
INPUT- - (9
l 5 $ e
6L _______________ J

For Packing

Mark No. Description Parts No.
Non-skid pad SEC1203
Operating instructions SRD1123
(English, Spanish, Chinese)
Protector SHA1647
Protector SHA1648
Packing case SHGléZI
Polyethylene bag SHL1152

FOR PRECAUTION OF
REASSMBLY AND DISASSMBLY

.The grille is attached to the cabinet by 4 external
screws. To detach it, unfasten those screws.

0 The speaker is attached to the grille by 4 internal
screws. To detach it, unfasten those screws,

PIONEER ELECTRONIC CORPORATION 4-1. Meguro 1-Chorne, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. PC Box 1760. Long Beach, California 90801 USA.

PIONEER ELECTRONICS OF CANADA. INC. 300 Allstate Parkway Markham. Ontario L3R 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1,9120 Melsele, Belgium

PIONEER ELECTRONICS AUSTRALIA PTV. LTD. 178-184 Boundary Road. Braeaide. Victoria 3195, Australia TEL [03] 5808911

©PlONEER ELECTRONIC CORPORATION 1993

0 -ZAU NOV. 1993 Primed in Japan
