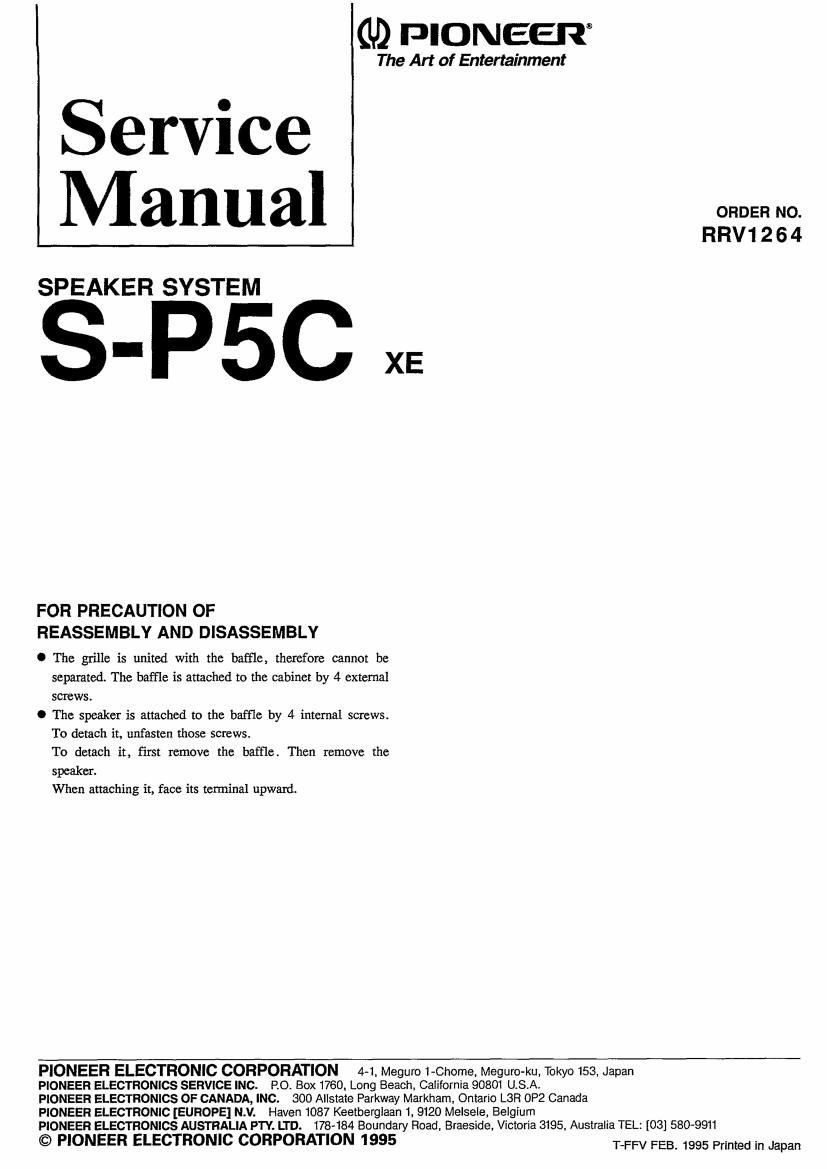

Page 1
(U) PIONEER
The Art of Entertainment
Service
f Manua
RRV1264
SPEAKER SYSTEM
S-P5C XE
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
0 The grille is united with the baffle, therefore cannot be
separated. The baffle is attached to the cabinet by 4 external
Screws.
0 The speaker is attached to the baffle by 4 internal screws.
To detach it, unfasten those screws.
To detach it, first remove the baffle. Then remove the
speaker.
When attaching it, face its terminal upward.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro1-Chome, Meguro-ku, Tokyo 153. Japan
PIONEER ELECTRONICS SERVICE INC. PVO BOX 1750. Long Beach, California 90801 USA.
PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3H 0P2 Canada
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside. Victoria 3195. Australia TEL: [03] 580-9911
© PIONEER ELECTRONIC CORPORATION 1995 T-FFV FEB. 1995 Printed in Japan
Page 2
S-PSC
PARTS LIST
NOI' ES:
I Parts marked by NSF" are generally unavailable because they are not in our Master Spare Parts Lin.
0 The A mark found on some component parts indicmes the importance of the safety factor of the part. Therefore, when replacing, be sure to
use parts of identical designation.
0 Fans marked by " © are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.
For Packing
Mark No. Description Parts No. Mark No. Description Parts No.
Grille assy SMGIZ70 Connect 00rd SDF1036
Speaker D87DC54-51F Non-skid pad SEC1236
Screw (for baffle and cabinet) BYC4OP130FZK Operating instructions SRD1134
Screw (for speaker ) T1240P080FMC (English/Frenclr/German/ltalian/
Dutch/Spanish/Swedish/Portuguese)
[Grille assy]
Badge 33 SAM1291 Protector (for bottom) SHA1845
Washer WA26N045W050 Protector (for top) SHA1846
Packing case SHGI739
Polyethylene bag 53 SI-HJ 152
SCHEMATIC DIAGRAM
.__-_._....._.-___.-____.__.}
WHT/GRY@ I
I NPUT g
WHTG
I.-__-.__....._.__.._-
