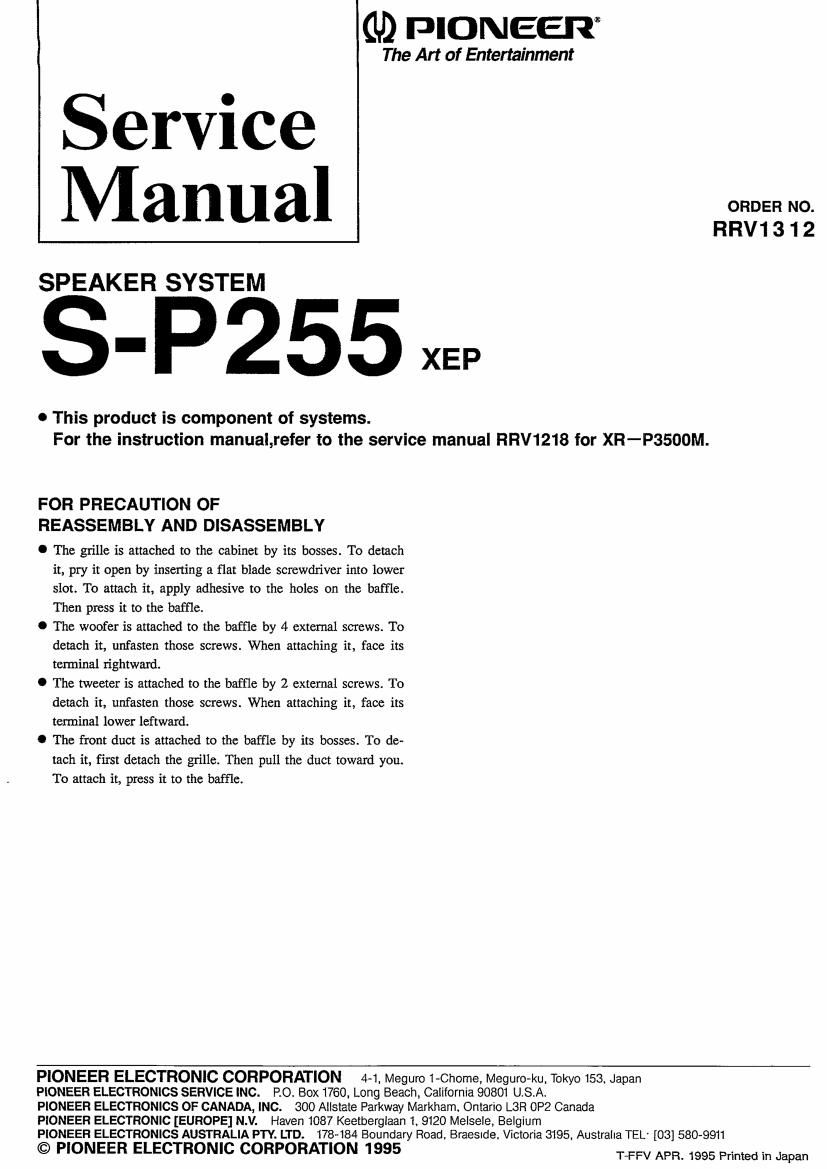

Page 1

(U) DIONEEIT

The Art of Entertainment

Service
Manual

RRV1312

SPEAKER SYSTEM

S-P255

O This product is component of systems.
For the instruction manual,refer to the service manual RRV1218 for XR-P3500M.

FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY

O The grille is attached to the cabinet by its bosses. To detach
it, pry it open by inserting a flat blade screwdriver into lower
slot. To attach it, apply adhesive to the holes on the baffle.
Then press it to the baffle.

O The woofer is attached to the baffle by 4 external screws. To
detach it, unfasten those screws. When attaching it, face its
terminal rightward.

0 The tweeter is attached to the baffle by 2 external screws. To
detach it, unfasten those screws. When attaching it, face its
terminal lower leftward.

O The front duct is attached to the baffle by its bosses. To de«
tach it, first detach the grille. Then pull the duct toward you.
To attach it, press it to the baffle.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. P.O. Box 1760, Long Beach, California 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham. Ontario L3H 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1. 9120 Melsele, Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braesrde, Victoria 3195, Australia TEL [03] 580-9911

© PIONEER ELECTRONIC CORPORATION 1995 WW APR. 1995 Primed in Japan

Page 2

S-P255 I

PARTS LIST

NOTES:

0 Parts marked by NSF" are generally unavailable because they are not in our Master Spare Parts List.

I The A mark found on some component pans indicates the importance of the safety factor of the pan. Therefore, when replacing, be sure to
use parts of identical designation.

0 Pants marked by Q are not always kept in stock Their delivery time may be longer than usual or they may be unavailable.

For Packing

Mark No. Description Parts No. Mark No. Description Parts No.
Grille L FRMG -O78 Speaker cord FRDD -- 015
Grille R FRMG -079 Top protector FRI-IA -058
Network assy FRWN - 079 Bottom protector PRHA ~059
Input terminal FRKX -004 Packing case FRHG - 129
Front duct FRNK~128 Polyethylene bag S7 PRHL~007
Speaker (Woofer) P12EC65 -57D
Speaker (Tweeter) D66AP45-73F
Screw (for speaker) BYC40P160FZI

SCHEMATIC DIAGRAM

NETWORK ASSY (FRWN-O'IS)

_---___-___.-._--|

BLUCD BLU
f_ 9
INPUT 'II Woofer
.

WHT

WHT 6
