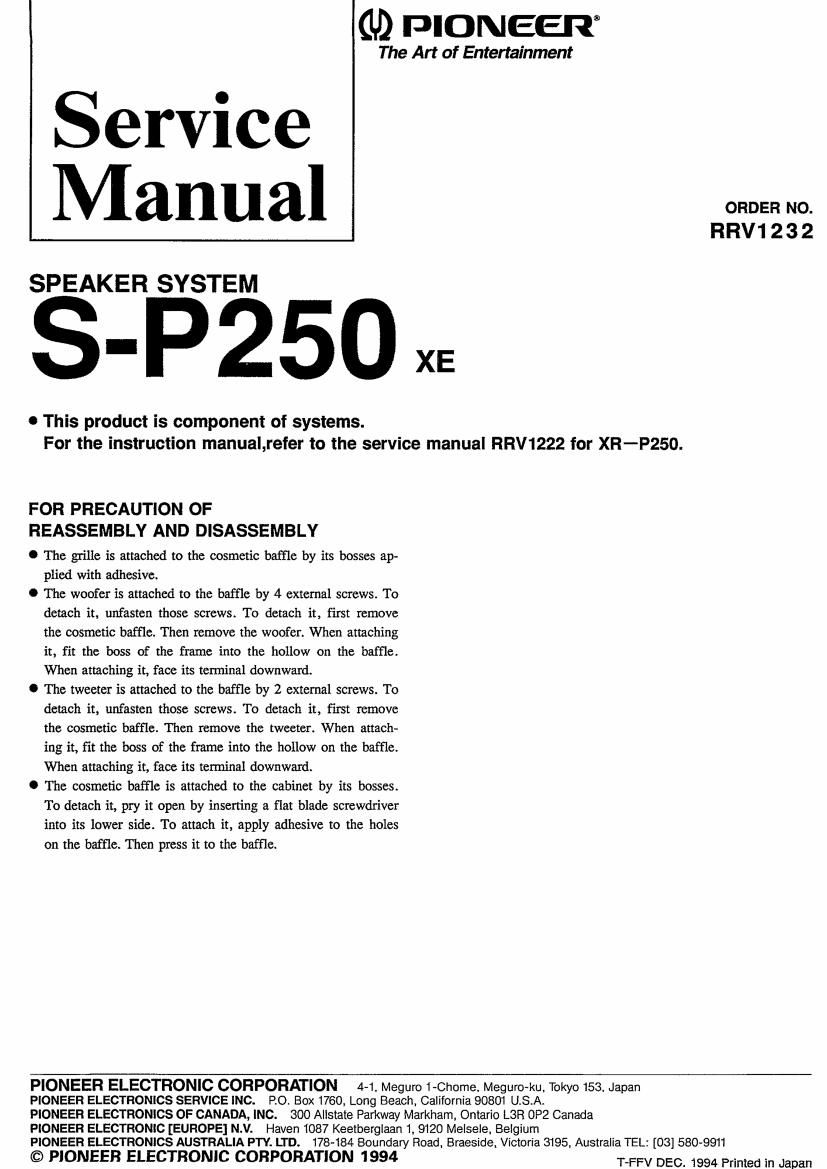

Page 1

(U) mower-2|?

The Art of Entertainment

Service
Manual

RRV1232

SPEAKER SYSTEM

S-P250 x.

0 This product is component of systems.
For the instruction manual,refer to the service manual RRV1222 for XR-P250.

FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY

0 The grille is attached to the cosmetic baffle by its bosses ap-
plied with adhesive.

0 The woofer is attached to the baffle by 4 external screws. To
detach it, unfasten those screws. To detach it, first remove
the cosmetic baffle. Then remove the woofer. When attaching
it, fit the boss of the frame into the hollow on the baffle.
When attaching it, face its terminal downward.

0 The tweeter is attached to the baffle by 2 external screws. To
detach it, unfasten those screws. To detach it, first remove
the cosmetic baffle. Then remove the tweeter. When attach-
ing it, fit the boss of the frame into the hollow on the baffle.
When attaching it, face its terminal downward.

0 The cosmetic baffle is attached to the cabinet by its bosses.
To detach it, pry it open by inserting a flat blade screwdriver
into its lower side. To attach it, apply adhesive to the holes
on the baffle. Then press it to the baffle.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome. Meguro-ku. Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. Po. Box 1760, Long Beach. California 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3H 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS AUSTRALIA PTV. LTD. 178-184 Boundary Road, Braeside. Victoria 3195. Australia TEL: [03] 580-9911

© PIONEER ELECTRONIC CORPORATION 1994 NW DEC_ 1994 Primed in Japan

Page 2

S-P250

PARTS LIST

NOTES:

0 Parts marked by "NSF" are generally unavailable because they are not in our Master Spare Parts Ijrt.

I The A mark found on some component pans indicate: the impzmance of the rafety factor of the pan. Therefore, when replacing, be rure to
use parts of identical designation.

0 Parts marked by Q" are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.

For Packing
Mark No. Description Parts No. Mark No. Description Parts No.
Grille FRMG -073 Speaker cord FRDD -01 5
Network assy FRWN-078 Rear protector FRHA-069
Input terminal FRKX - 006 Front bottom protector FRHA -070
Cosmetic baffle FRNK-lll Front top protector FRHA-078
Speaker (Woofer) P12EC65 - 57D Protection mat S4 FRHC -020
Speaker (Tweeter) D66AP4S ~73F Packing case FRHG ~ 128

Screw (for woofer and tweeter) BYC40P160FZB

SCHEMATIC DIAGRAM

NETWORK ASSY (FRWN~078)

l-'-"-"-'-l

Woofer

Tweeter
