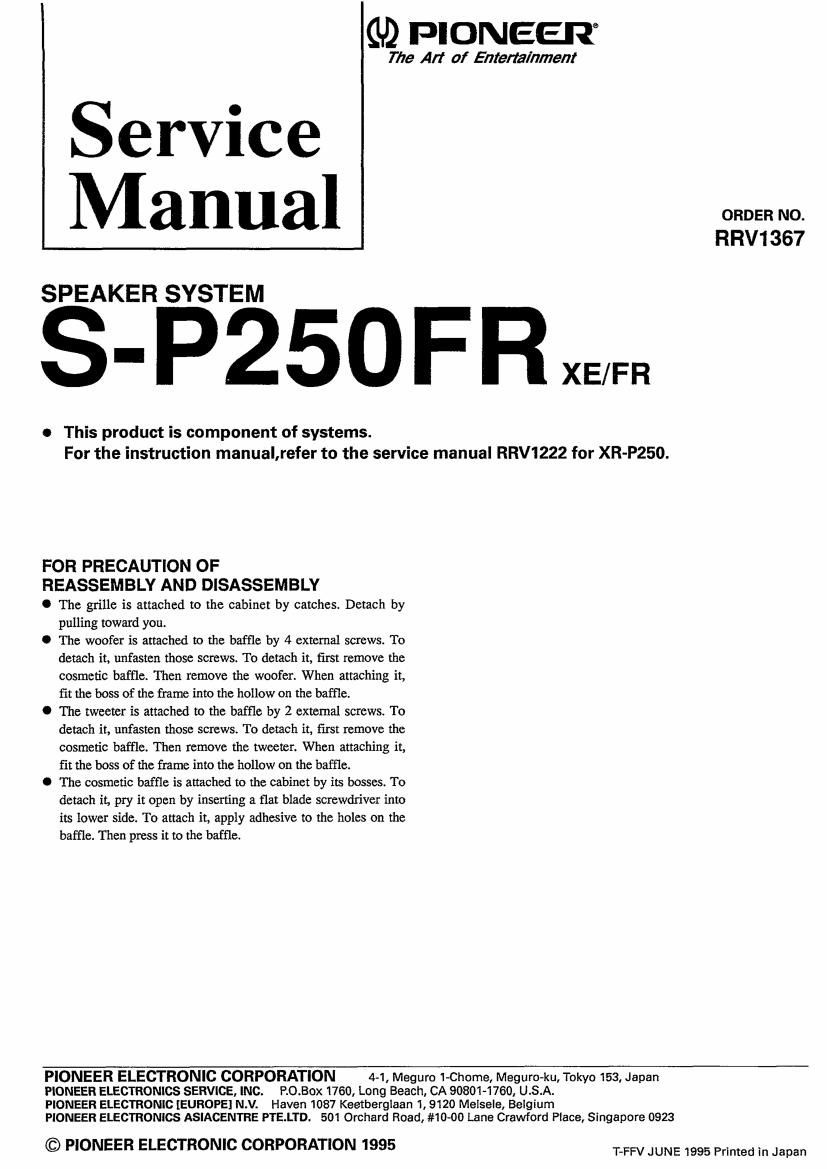

Page 1

GD PIONEER"

The Art of Enteflainment

Service
Manua

RRV1367

SPEAKER SYSTEM

S-P25OFRXW.

o This product is component of systems.
For the instruction manual,refer to the service manual RRV1222 for XR-P250.

FOR PRECAUTION OF

REASSEMBLY AND DISASSEMBLY

O The grille is attached to the cabinet by catches. Detach by
pulling toward you.

0 The woofer is attached to the baffle by 4 external screws. To
detach it, unfasten those screws. To detach it, first remove the
cosmetic baffle. Then remove the woofer. When attaching it,
fit the boss Of the frame into the hollow on the baffle.

O The tweeter is attached to the baffle by 2 external screws. To
detach it, unfasten those screws. To detach it, first remove the
cosmetic baffle. Then remove the tweeter. When attaching it,
fit the boss of the frame into the hollow on the baffle.

O The cosmetic baffle is attached to the cabinet by its bosses. To
detach it, pry it open by inserting a flat blade screwdriver into
its lower side. To attach it, apply adhesive to the holes on the
baffle. Then press it to the baffle.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE. INC. P.O.Box 1760, Long Beach. CA 90801-1760, U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #1000 Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1995 WV JUNE .995 Primed in Japan

Page 2

S-P250FR

PARTS LIST

NOTES:

0 Parts marked by NSF " are generally unavailable because they are not in our Master Spare Parts List.

0 The A mark found on some companentparts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure
to uxe parts of identical designation.

0 Parts marked by " © are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.

For Packing
Mark No. Description Parts No. Mark No. Description Parts No.

CS assy FRMW-045 Protector FRI-IA-OSS
Connect cord FRWN - 088 Partition FRI-IE ~ 002
Speaker cord FRDD - 015 Polyethylene bag 52 FRHL-Ol 5
Grille FRMG -084 Packing case FRHG - 139
Input terminal FRKX -007

Cesmetic baffle FRNK - 135

Speaker (Woofer) IC1303A72A3

Speaker (Nearer) 1C5203A45A3

Screw (for woofer and tweeter) BYC40P100FMC

SCHEMATIC DIAGRAM
