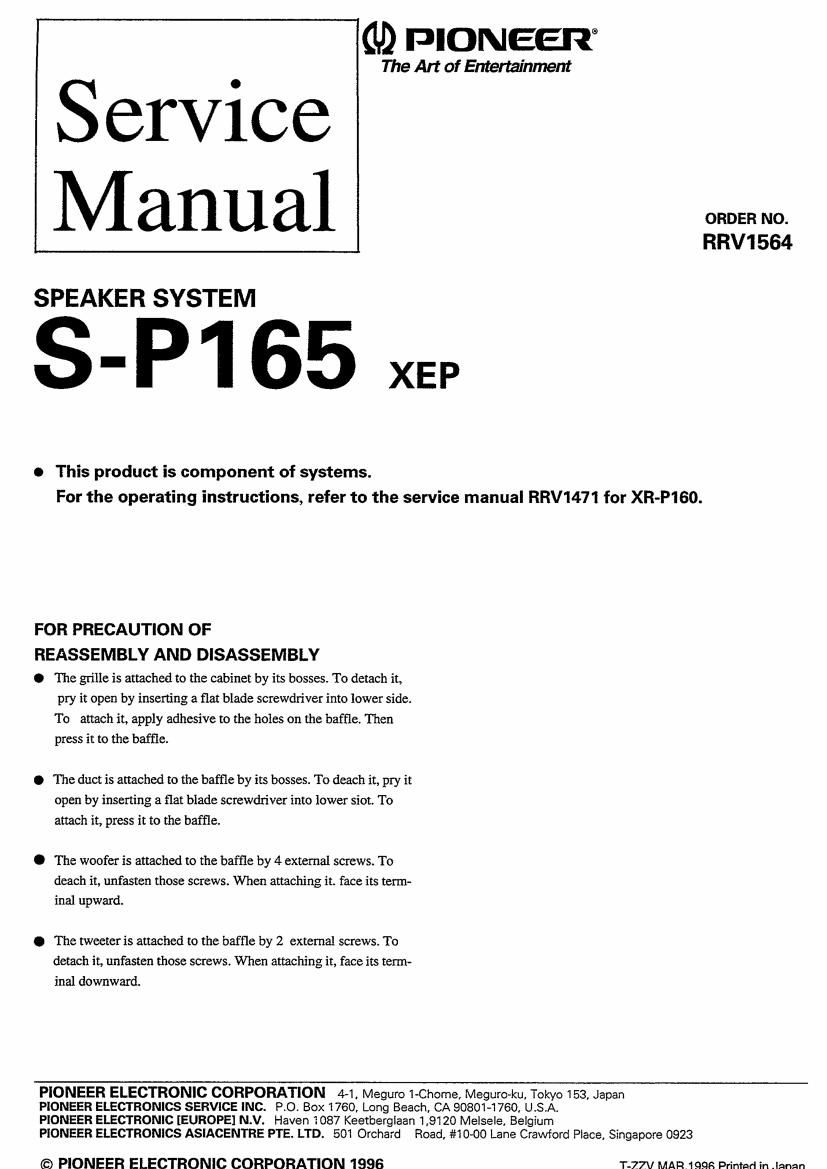

Page 1

(U) promise-R

The Art of Entertainment

Service
Manual

RRV1 564

SPEAKER SYSTEM

S-P1 65 XEP

o This product is component of systems.
For the operating instructions, refer to the service manual RRV1471 for XR-P160.

FOR PRECAUTION OF

REASSEMBLY AND DISASSEMBLY

O The grille is attached to the cabinet by its bosses. To detach it,
pry it open by inserting a flat blade screwdriver into lower side.
To attach it, apply adhesive to the holes on the baffle. Then
press it to the baffle.

0 The duct is attached to the baffle by its bosses. To deach it, pry it
open by inserting a flat blade screwdriver into lower siot. To
attach it, press it to the baffle.

O The woofer is attached to the baffle by 4 external screws. To
deach it, unfasten those screws. When attaching it. face its term-
inal upward.

O The tweeter is attached to the baffle by 2 external screws. To
detach it, unfasten those screws. When attaching it, face its term-
inal downward.

PIONEER ELECTRONIC CORPORATION 44, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760, Long Beach. CA 908014 760. U.S.A,

PIONEER ELECTRONIC [EUROPE] N.V. Haven .087 Keetberglaan 1.9120 Melsele. Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place. Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1996 T.27V MAR 1998 Printed in .lanan

Page 2

S-P1 65

PARTS LIST

NOTES:

' Parts marked by NSPare generally unavailable because they are not in our Master Spare Parts List.

The . mark found on some component parts indicales the importance of the safely factor of the part. Therefore, when replacing,
be sure to use parts of identical designation.

' Parts marked by 6) are not always kept in stock Their delivery time may be longer than usual or they may be unavailable.

For Packing

Mark No. Description Parts No. Mark No. Description Parts No.

Grille FRMG-077 Front protector FRHA-068
Network assy FRWN-093 Rear protector FRI-l A-081
Duct L FRNK-211 Packing case FRHG-159
Duct Fl FRNK-212 Polyethylene bag S7 FRHL-Oo7
Speaker( Woofer) A12DCGl-51 D

Speakerfiweeter) A52AP32-51 D

ScreW(for speaker) BYC40P160FZB

SCHEMATIC DIAGRAM
NETWORK ASSY (FRWN-OQS)

RED @L L BLU
v 9 T @
INFUTI A E)
BLKQI i WHT
l . Woofer
i I WHT
* _ C-D
i I
i [-41- . 63
. 1.2m RED
L _____________ -1 Tweeter
