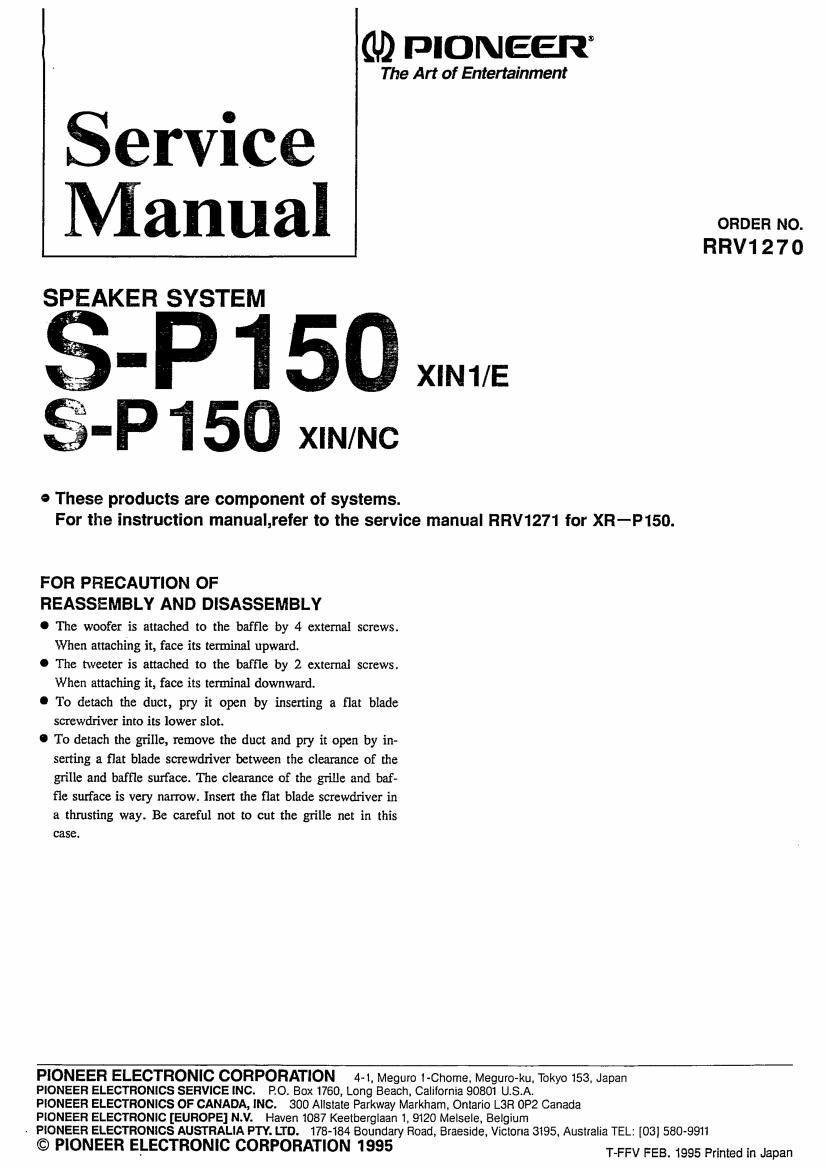

Page 1

(U) mom-zen

The Art of Entertainment

Service
Manual

SPEAKER SYSTEM

'P 1 5G XIN1/E
-P 150 XlN/NC

9 These products are component of systems.

For the instruction manua|,reter to the service manual RRV1271 for XFI-P150.

FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY

O The woofer is attached to the baffle by 4 external screws.
When attaching it, face its terminal upward.

O The tweeter is attached to the baffle by 2 external screws.
When attaching it, face its terminal downward.

0 To detach the duct, pry it open by inserting a flat blade
screwdriver into its lower slot.

0 To detach the grille, remove the duct and pry it open by in-
serting a flat blade screwdriver between the clearance of the
grille and baffle surface. The clearance of the grille and baf-
fle surface is very narrow. Insert the flat blade screwdriver in
a thrusting way. Be careful not tO cut the grille net in this
case.

ORDER No.
R RV1 2 7 0

PIONEER ELECTRONIC CORPORATION 4-1. Meguro I-Chome. Meguro-ku. Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. Po. Box 1760, Long Beach, California 90801 U.S.A.
PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Onlario L3H 0P2 Canada
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1. 9120 Melsele. Belgium

~ PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside. Victoria 3I95. AUSlIaIIa TEL: [03] 5808911
© PIONEER ELECTRONIC CORPORATION 1995 T-FFV 1.53.1995 Minted in Japan

Page 2

S-P150 l

PARTS LIST

NOTES:

0 Parts marked by "NSF" are generally unavailable because they are not in our Master Spare Paris USL
0 The A mark found an some componen: parts indicates the importance of the safety factor of the pan. Therqare, when replacing, be sure to

use parts of identical designation,

0 Parts marked by " C0) are not always kept in mock. Their delivery time may be longer than usual or they may be unavailable.

For Packing

Mark No. Description Parts No. Mark No. Description Parts No.
CS assy (L) (XlNl/E) SMW1409 Proxector (for lop) SHA1849
CS assy (R) (XENI/E) SMW1413 Protector (for bottom) SHAISSO
cs assy (L) (XIN/NC) SMW1410 Packing case (XINl/E) SHGl741 FKHC7 4;}
CS assy (R) (KIN/NC) SMW1414 Packing case (KIN/NC) SHGl742
Speaker (Woofer) A12DC61-52F Polyethylene bag SA 5HL1176
Speaker (Midlange) A52AP32-71F
Capacitor (1.81.113) CES41RSK_A
CS cord assy SDX1017
Grille SMGI404

SCHEMATIC DIAGRAM

CS CORD ASSY (SDX1017)
