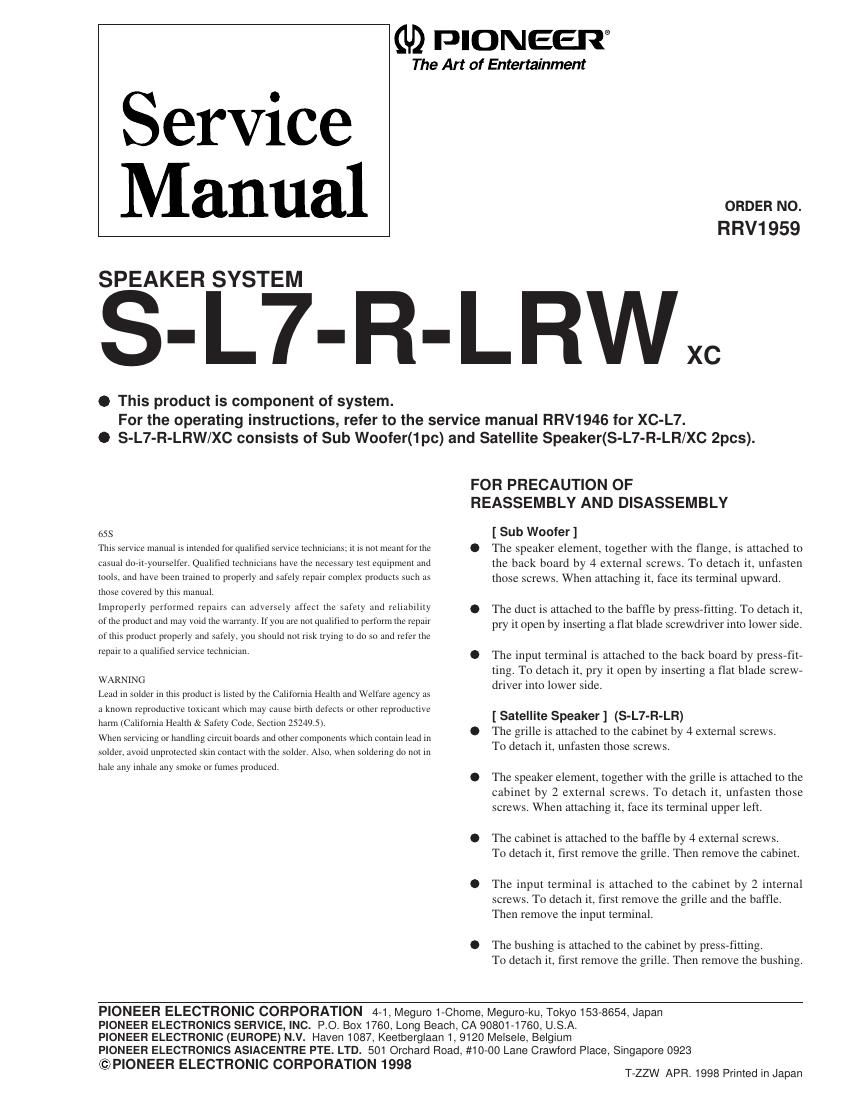

Pioneer sl 7 rlrw service manual

Page 1

2 NSP Cabinet FRMM-170 NSP Label Back FRAN-235 Connect Cord FRDF-016 Input Terminal FRKX-013 NSP Acoustic Absorbent (for Bottom, side) FRMV-025 NSP Acoustic Absorbent (for Back) FRMV-026 NSP Acoustic Absorbent (for Baffle) FRMV-027 NSP Woofer Flange FRNK-282 NSP Duct FRNK-281 NSP Label Serial FRAN-500 Speaker (Sub Woofer) A14ER75-51C Screw (for Speaker) BYC40P200FZB NSP Speaker System S-L7-R-LR/XC Speaker Cord (for Sub Woofer) FRDF-017 Speaker Cord (for Satellite) FRDD-042 Non-Skid Pad FREC-024 Top Protector FRHA-147 Bottom Protector FRHA-148 Protection Sheet S3 (for Sub Woofer) FRHC-021 Protection Sheet S2 (for Satellite) FRHC-022 Packing Case FRHG-221 SCHEMATIC DIAGRAM Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. Mark No. Description Part No. S-L7-R-LRW Connect Cord (FRDF-016) Connect Cord (FRDF-018) For Packing Parts List for S-L7-R-LRW/XC Full-Range INPUT Red Black Connector (Blue) Woofer INPUT Red Black Connector (White)Connector (Blue) NSP Baffle Board PAV-SL7RLR Grille FRMG-134 Badge 36 FRAM-025 NSP Grille Cloth FRAS-080 NSP Grille Frame FRNK-279 NSP Cabinet FRNK-278 NSP Label Back FRAN-236 Connect Cord FRDF-018 NSP Bushing FRNK-289 Speaker (Full-range) B70AC45-56F Screw (for Input Terminal) PPZ30P080FZK Screw ( for Grill-Cabinet, Cabinet-Baffle ) PPZ40P120FZK Parts List for S-L7-R-LR/XC
