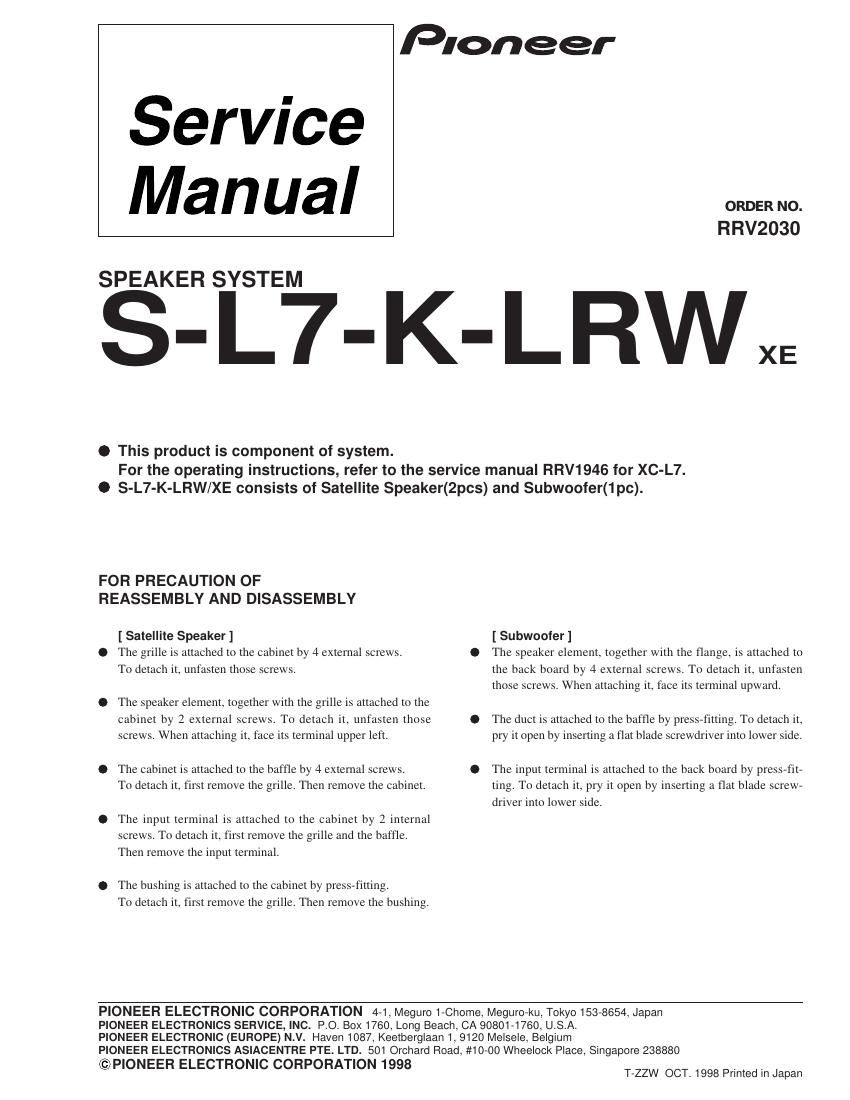

2Mark No. Description Part No. SCHEMATIC DIAGRAM Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-L7-K-LRW [ S-L7-K-LRW ] NSP Cabinet FRMM-182 NSP Label Back FRAN-258 Connect Cord FRDF-016 Input Terminal FRKX-013 NSP Woofer Flange FRNK-282 N S P Acoustic Absorbent (for Bottom and side)FRMV-025 NSP Acoustic Absorbent (for Back) FRMV-026 NSP Acoustic Absorbent (for Baffle) FRMV-027 NSP Duct FRNK-281 NSP Label Serial FRAN-500 Speaker (Woofer) A14ER75-51C Screw (for Woofer) BYC40P200FZB NSP Speaker System S-L7-K-LR/XE Speaker Cord (for Sub Woofer) FRDF-017 Speaker Cord (for Satellite) FRDD-042 Non-Skid Pad FREC-024 Top Protector FRHA-147 Bottom Protector FRHA-148 Protection Sheet S3 FRHC-021 Protection Sheet S2 FRHC-022 Packing Case FRHG-236 [ S-L7-K-LR ] NSP Baffle Board PAV-SL7KW Grille FRMG-158 Badge 36 FRAM-025 NSP Grille Cloth FRAS-097 NSP Grille Frame FRNK-279 NSP Cabinet FRNK-278 NSP Label Back FRAN-257 Connect Cord FRDF-018 NSP Bushing FRNK-289 Speaker (Full-range) B70AC45-56F Screw (for Input Terminal) PPZ30P080FZK Screw (for Grill and Cabinet,PPZ40P120FZK Cabinet and Baffle) S-L7-K-LR Connect Cord (FRDF-016) S-L7-K-LRW Connect Cord (FRDF-018) Full-Range INPUT Red Black Connector (Blue) Woofer INPUT Red Black Connector (White)Connector (Blue) For Packing
