Pioneer sl 6 x service manual
This is the 2 pages manual for pioneer sl 6 x service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sl 6 x service manual (Ocr-read)
Page 1

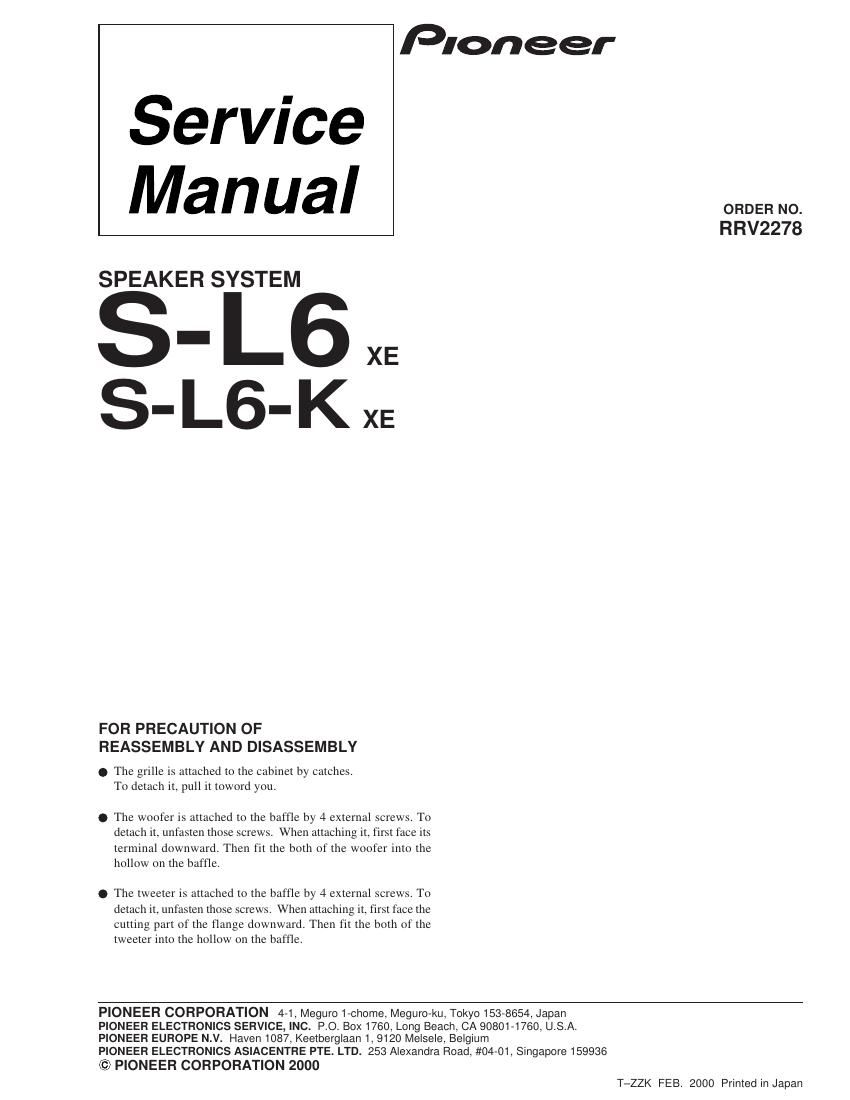

S-L6, S-L6-K 2 NOTES : Parts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. PARTS LIST Skid Pads FREC-037 Input Terminal FRKX-013 Network Assy FRWN-157 Grille Assy (Gray) FRMG-174 Grille Assy (Blue) FRMG-175 Speaker (WF) P12ER70-52D Speaker (TW) RD240LA39B3 Screw (for TW) FRBA-025 Screw (for WF) FRBA-022 Catch FRNK-363Speaker Wire FRDD-053 Protector (T) FRHA-176 Protector (B) FRHA-175 Packing Case FRHG-260 Protection Mat FRHC-018 SCHEMATIC DIAGRAM Woofer Network Assy (FRWN-157) 1.8 mF Tweeter I N Black Red Black Red Black Red Mark No. Description Part No. Mark No. Description Part No. For Packing
