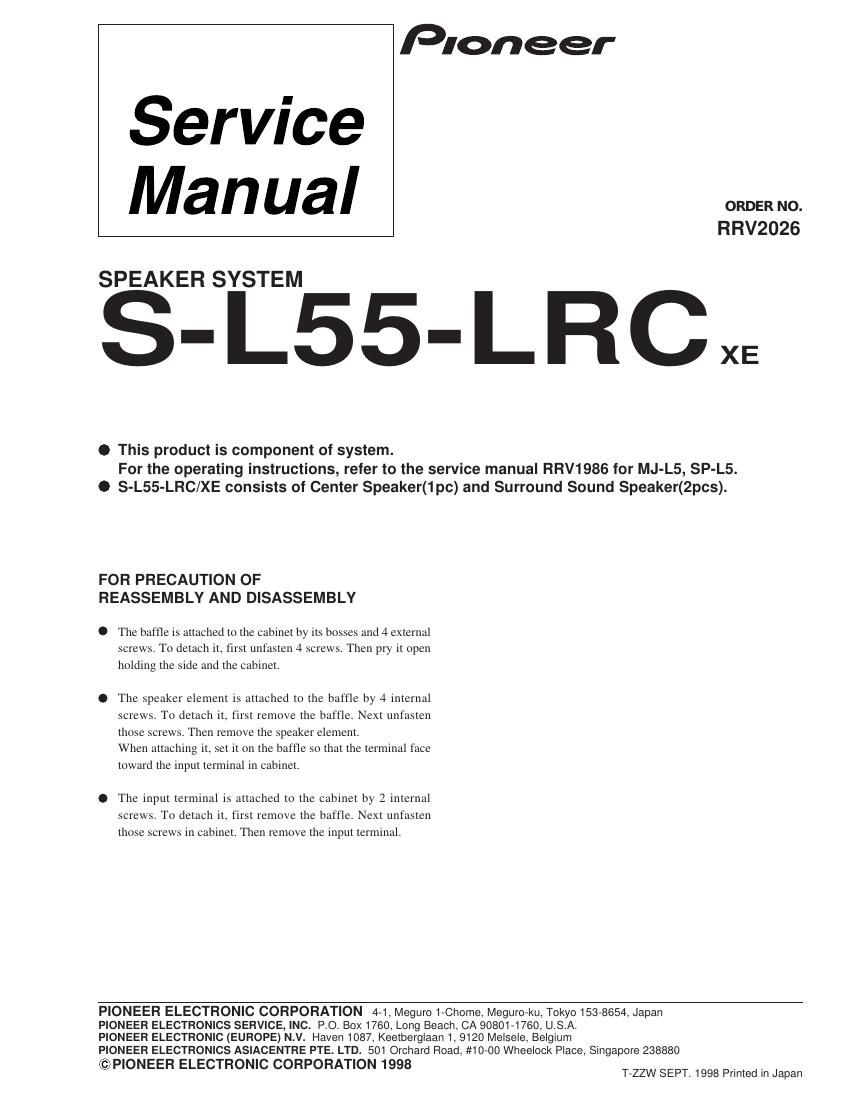

Pioneer sl 55 lrc service manual

Page 1

2 Cable (FRDF-018) SCHEMATIC DIAGRAM Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST S-L55-LRC For Packing Mark No. Description Part No. Mark No. Description Part No. NSP Cabinet FRNK-327 Baffle Board ASSY FRXB-025 NSP Punching Net FRNC-013 NSP Baffle Board FRNK-328 NSP Label Back FRAN-246 Cable FRDF-018 Speaker SWS9007 Screw (for Input Terminal) PBZ30P080FZB Screw (for Speaker, PBZ40P120FZB Cabinet and Baffle) NSP Speaker System S-L55-C/XE Speaker Cord FRDD-045 Non-Skid Pads FREC-021 Speaker Base FRNK-325 Speaker Stand FRNK-326 NSP Screw ASSY FREA-010 Giza Tite Screw 4.0 FRBA-018 NSP Polyethylene Bag S0 SHL1193 Washer WH40FZB Caution Label FRAX-013 Protector (Polystyrene) FRHA-161 Protector (Corrugated Paper) FRHB-003 Protection Sheet S4 FRHC-045 Packing Case FRHG-229 S-L55-LRC S-L55-C NSP Cabinet FRNK-320 Baffle Board ASSY FRXB-024 NSP Punching Net FRNC-012 NSP Baffle Board FRNK-321 NSP Label Back FRAN-245 Cable FRDF-018 Speaker SWS9008 Screw (for Input Terminal) PBZ30P080FZB Screw (for Speaker, PBZ40P120FZB Cabinet and Baffle) Full-Range INPUT Red Black Connector (Blue)
