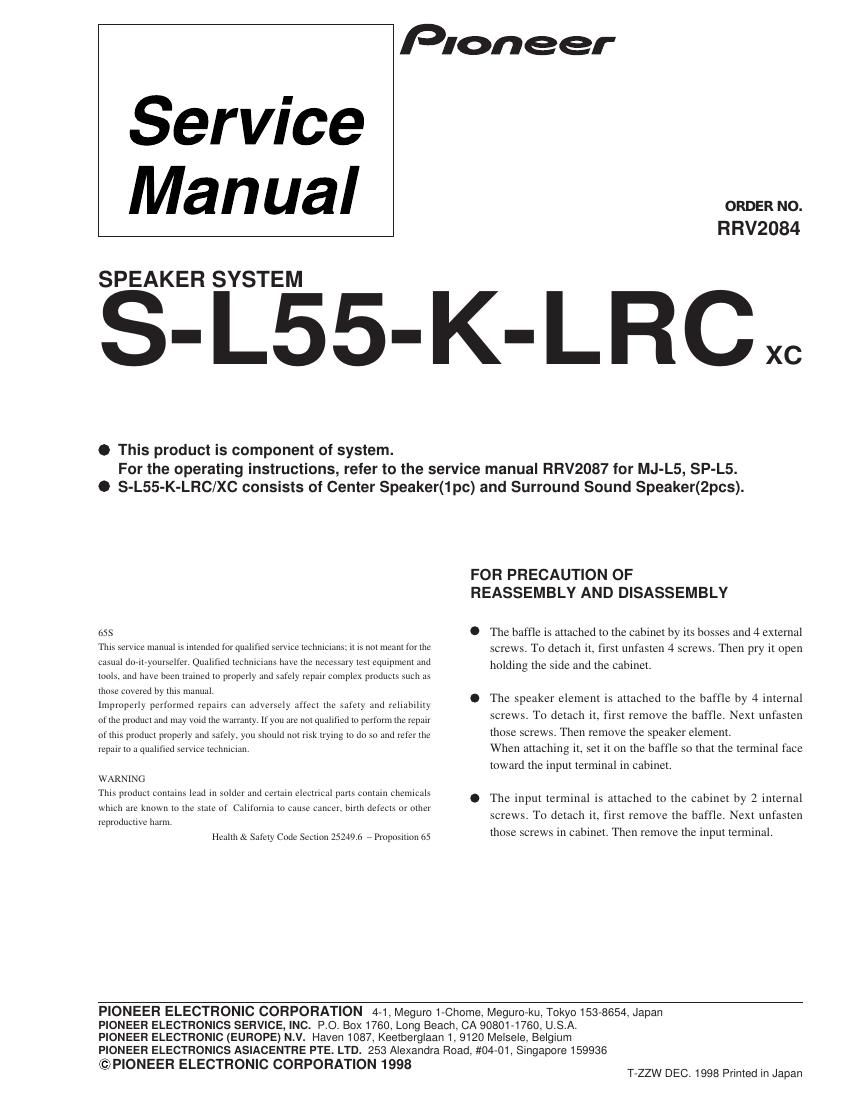

Pioneer sl 55 klrc service manual

Page 1

2 NSP Cabinet FRNK-320 Baffle Board ASSY FRXB-024 NSP Punching Net FRNC-013 NSP Baffle Board FRNK-321 NSP Label Back FRAN-275 Cable FRDF-022 Speaker (Center) SWS9007 Screw (for Input Terminal) PBZ30P080FZB Screw (for Speaker, Cabinet, Baffle) PBZ40P120FZB NSP Speaker System S-L55-K-C/XC Speaker Cord FRDD-049 (for Center Speaker 2m (1pc), for Surround Sound Speaker 6m (2pcs)) NSP Screw ASSY FREA-010 NSP Caution Label SAX1366 NSP Giza Tight Screw 4.0 FRBA-018 NSP Polyethylene Bag S0 SHL1193 Wave Washer WH40FZB Non-Skid Pads FREC-021 Speaker Base FRNK-325 Speaker Stand FRNK-326 Protector (Polystyrene) FRHA-161 Protector (Corrugated Paper) FRHB-003 Protection Sheet S3 FRHC-045 Protection Sheet S4 FRHC-046 Packing Case FRHG-248 Cable (FRDF-022) SCHEMATIC DIAGRAM Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST S-L55-K-LRC Mark No. Description Part No. Mark No. Description Part No. S-L55-K-LRC S-L55-K-C NSP Cabinet FRNK-320 Baffle Board ASSY FRXB-024 NSP Punching Net FRNC-013 NSP Baffle Board FRNK-321 NSP Label Back FRAN-276 Cable FRDF-022 Speaker (Surround) SWS9008 Screw (for Input Terminal) PBZ30P080FZB Screw (for Speaker, Cabinet, Baffle) PBZ40P120FZB Full-Range INPUT Red Black Connector (Blue) For Packing
