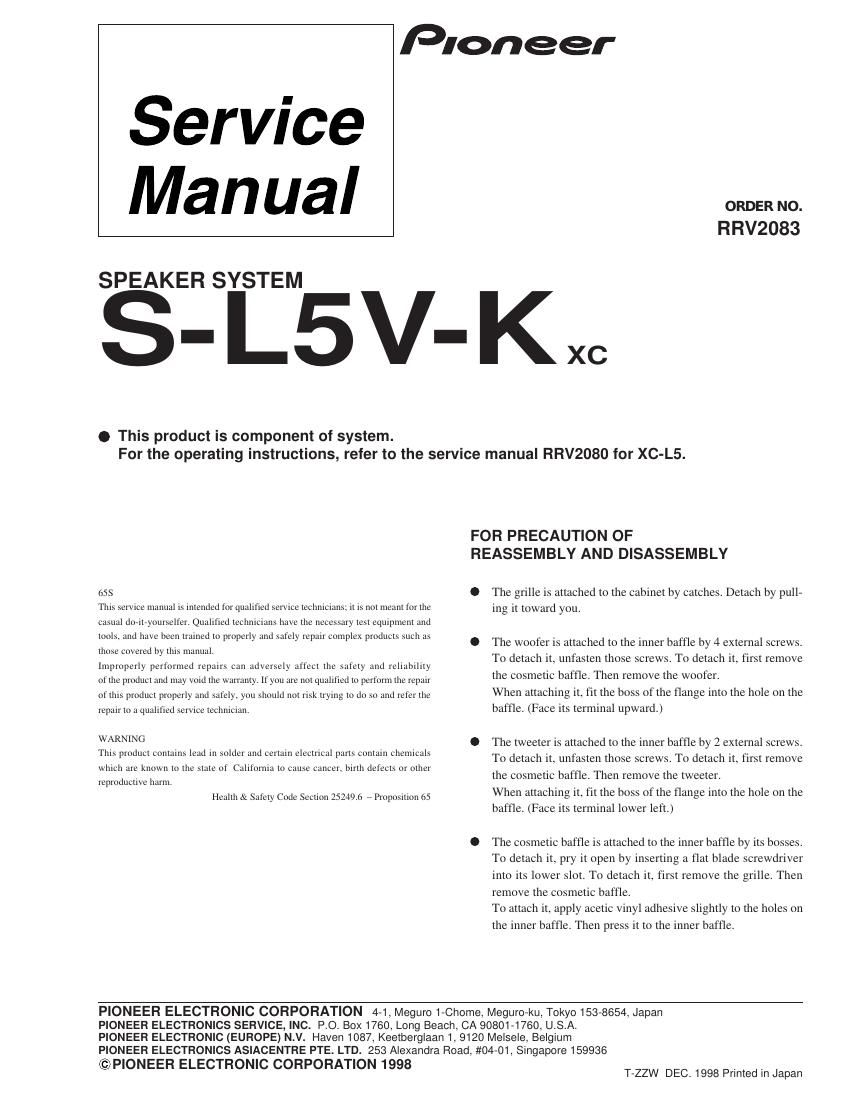

Pioneer sl 5 vk service manual
This is the 2 pages manual for pioneer sl 5 vk service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sl 5 vk service manual (Ocr-read)
Page 1
2 NSP Cabinet FRMM-181 NSP Baffle Board FRNK-317 Grille FRMG-167 NSP Badge FRAM-029 NSP Punching Net FRNC-019 NSP Grille Frame FRNK-349 Network ASSY FRWN-152 NSP Label Back FRAN-274 Input Terminal FRKX-013 NSP Acoustic Absorbent FRMV-030 Catch FRNK-015 NSP Duct 35 FRNK-323 Cosmetic Baffle FRNK-343 Speaker (Woofer) P12EC65-62D Speaker (Tweeter) FE52AP39-51G Screw (for Speaker) BPZ40P160FZB Mark No. Description Part No. SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-L5V-K Speaker Cord (2m (2pcs)) FRDD-048 Non-Skid Pads FREC-021 Protector FRHA-160 Protection Sheet S2 FRHC-018 Packing Case FRHG-247 Network ASSY (FRWN-152) Woofer 1.0µF/63V Tweeter INPUT Connector (Red) Connector (Blue) Connector (White)
