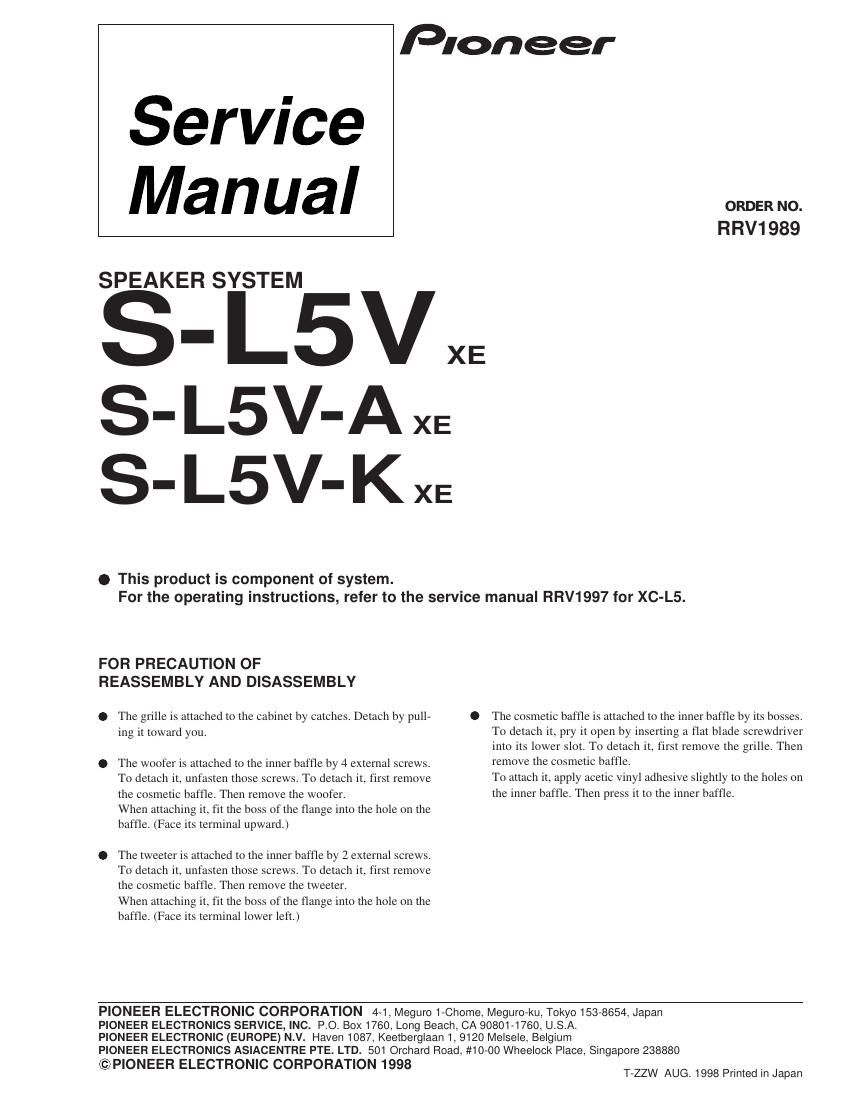

Pioneer sl 5 v service manual

Page 1

2 NSP Cabinet (for S-L5V Model) FRMM-172 NSP Baffle Board FRNK-317 NSP Cabinet (for S-L5V-A Model) FRMM-180 NSP Baffle Board FRNK-317 NSP Cabinet (for S-L5V-K Model) FRMM-181 NSP Baffle Board FRNK-317 Grille FRMG-152 NSP Badge FRAM-029 NSP Punching Net FRNC-011 NSP Grille Frame FRNK-319 NSP Network ASSY FRWN-147 NSP Label Back (for S-L5V Model) FRAN-244 NSP Label Back (for S-L5V-A Model) FRAN-255 NSP Label Back (for S-L5V-K Model) FRAN-256 Input Terminal FRKX-013 NSP Acoustic Absorbent FRMV-030 Cosmetic Baffle FRNK-318 (for S-L5V and S-L5V-A Models) Cosmetic Baffle(for S-L5V-K Model) FRNK-343 NSP Duct 35 FRNK-323 Catch FRNK-314 NSP Label Serial FRAN-500 Speaker (Woofer) P12EC65-62D Speaker (Tweeter) FE52AP39-54F Screw (for Speaker) BPZ40P160FZB Mark No. Description Part No. SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-L5V, S-L5V-A, S-L5V-K Network ASSY (FRWN-147) Woofer 1.5µF/63V Tweeter INPUT Connector (Red) Connector (Blue) Connector (White) Speaker Cord FRDD-041 Non-Skid Pads FREC-021 Protector FRHA-160 Protection Sheet S3 FRHC-021 Packing Case (for S-L5V Model) FRHG-228 Packing Case (for S-L5V-A Model) FRHG-234 Packing Case (for S-L5V-K Model) FRHG-235
