Extracted text from pioneer sl 11 qlrw service manual (Ocr-read)

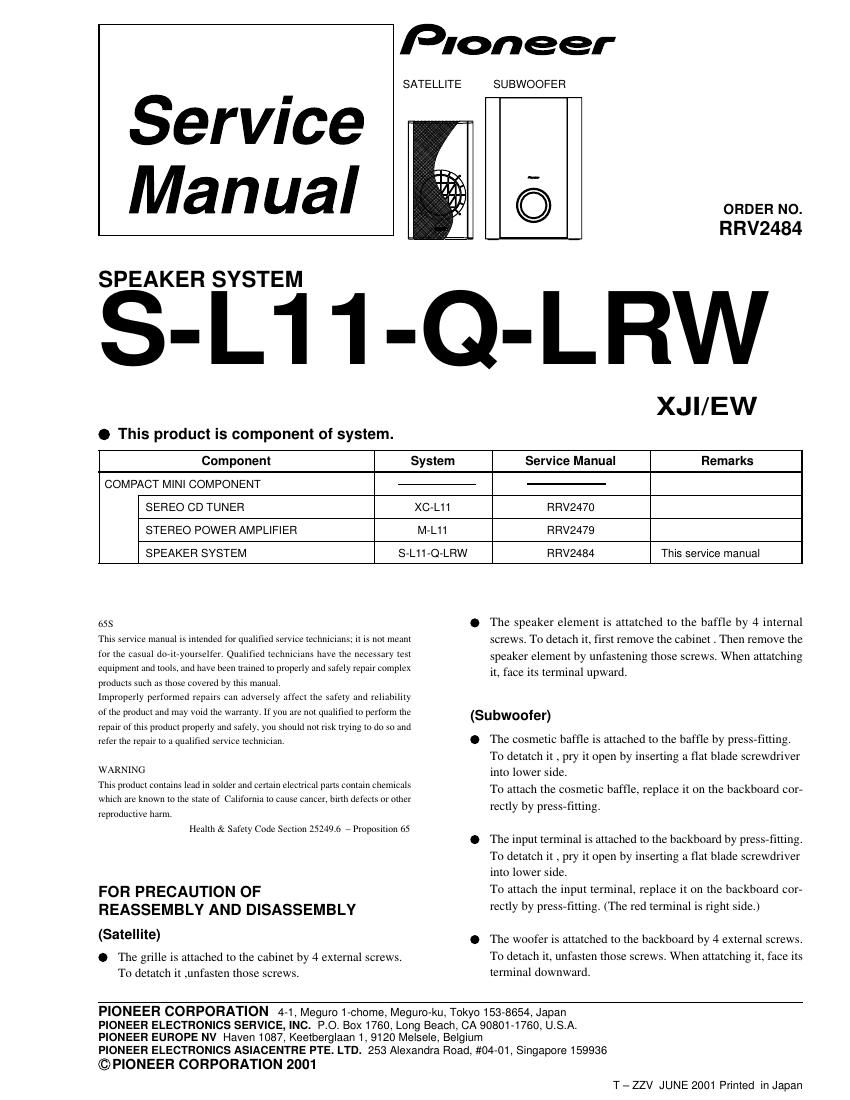

Page 1
S-L11-Q-LRW 2Mark No. Description Part No. SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP Satellite Speaker SMW1661 NSP Subwoofer SMW1662 NSP Accessary Set SEA1561 Speaker Wire (for Subwoofer) SDF1091 Speaker Wire (for Satellite) SDS1065 Non Skid Pad SEC1537 Stand SET1041 NSP Polyethylene Bag SHL1223 Top Protector SHA2310 Middle Protector SHA2311 Bottom Protector SHA2312 Packing Case SHG2338 NSP Polyethylene Bag (for Subwoofer) SHL1212 Polyethylene Bag S2 (for Satellite) SHL1291 Satellite Speaker Speaker D87DU61-53F Screw (for Speaker) BPZ40P060FZK Screw (for Cabinet) BPZ40P120FZK Screw (for Sidewood) BYC35P160FNI Fin-Lok M5 (for Stand attaching) SBN1049 Speaker Cord SDD1303 Packing (for Cabinet) SEC1532 NSP Packing (for Cabinet) SNK2541 Damper (for Cabinet, Grille) SEP1237 Input Terminal KKX1015 Grille SMG1723 NSP Badge23 SAM1487 NSP Grille Cloth SAS1497 NSP Grille Frame SMH1030 NSP Sidewood R SMS1440 NSP Sidewood L SMS1441 NSP Acoustic Absorbent SMV2090 (for upper back side) NSP Acoustic Absorbent SMV2091 (for lower back side) NSP Cabinet SNK2536 NSP Stamped Model Label SME3150 NSP Label Back SAN2942 INPUTRED WHITE Full-Range Speaker Cord (SDD1303) INPUTRED BLACK Woofer Speaker Cord (SDD1304) PARTS LIST PARTS LIST Satellite Mark No. Description Part No. Sub Woofer Speaker A14ER75-52C Screw (for Speaker) BYC40P160FZB Speaker Cord SDD1304 NSP Packing (for Cosmetic Baffle) SEC1567 NSP Paper Tube 50 SMR1340 Input Terminal KKX1014 Non Skid Pads SEC1534 NSP Acoustic Absorbent SMV1955 (for bottom side) NSP Acoustic Absorbent SMV2003 (for upper front side) NSP Cabinet SMM1941 NSP Cosmetic Baffle SNK2532 NSP Stamped Model Label SME3152 NSP Label Back SAN2944 PARTS LIST Subwoofer
Page 2
S-L11-Q-LRW 3 PRODUCT APPEARANCE No. 1 2 3 4 5 6 9 7 81 1 1 1 1 1 1 1 CabinetBPZ40P060FZK BPZ40P120FZK BYC35P160FNI SMV2090 SNK2541 Grille Sidewood R Speaker Sidewood L Speaker Cord Input Terminal Acoustic Absorbent 2 Fin-Lok M5 102 PackingScrew Screw Screw Label Back4 4 6 1 SEP1237 SEC1532 Damper 2 11 12 13 14 15 16 SEP1237 Damper 1 Packing 1 SMV2091 Acoustic Absorbent1 17 18 Num Part name Remarks No. Num Part name Remarks 17 11 1810 12 131415 16 5 6 321 8 9 7 4 (125) (228) (70) Satellite Speaker
