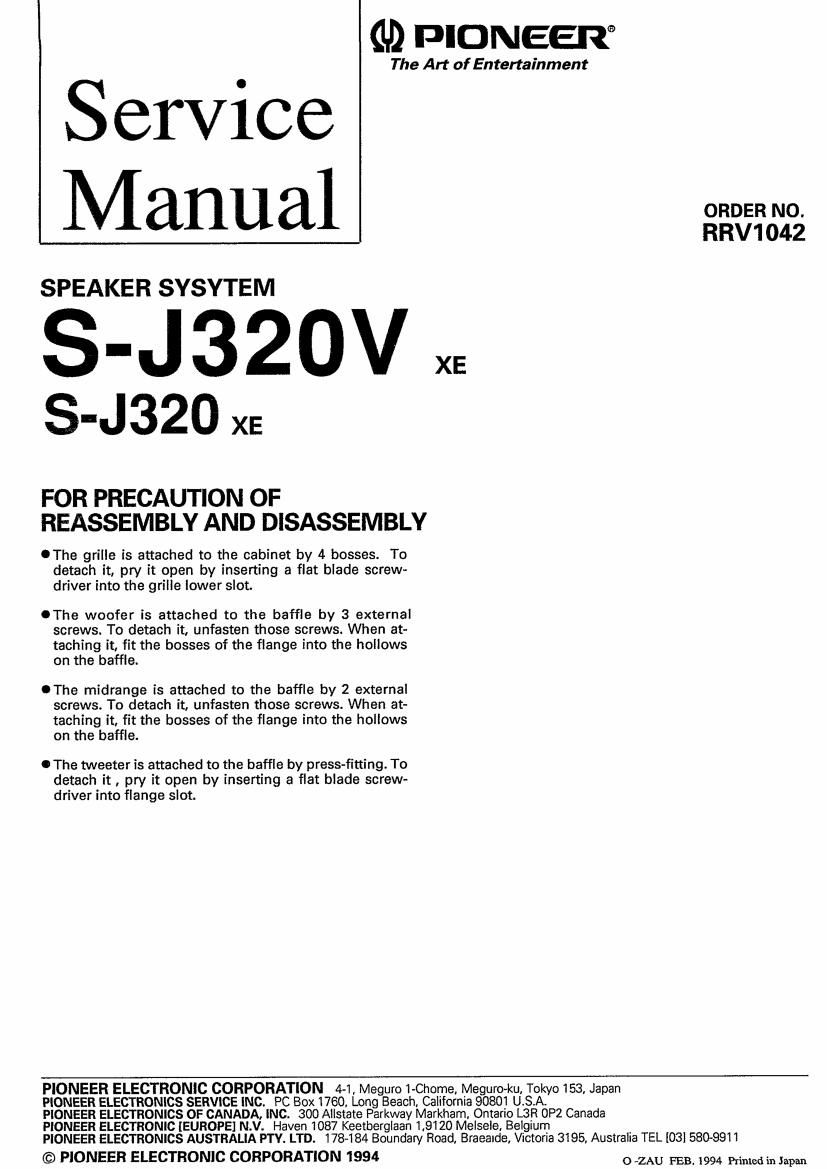

Page 1

GD PIONEER"

The Art of Entertainment

Service
Manual

RRV1 042

SPEAKER SYSYTEM

S-J320V x.

S-J320 xe

FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY

OThe grille is attached to the cabinet by 4 bosses. To
detach it, pry it open by inserting a flat blade screw-
driver into the grille lower slot.

OThe woofer is attached tO the baffle by 3 external
screws. To detach it, unfasten those screws. When at-
taching it, fit the bosses of the flange into the hollows
on the baffle.

OThe midrange is attached to the baffle by 2 external
screws. To detach it, unfasten those screws. When at-
taching it, fit the bosses of the flange into the hollows
on the baffle.

OThe tweeter is attached to the baffle by press-fitting. To
detach it , pry it open by inserting a flat blade screw-
driver into flange slot.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro I-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. PC Box 1760. Long Beach, California 90801 USA

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3R 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetbergiaan 1,9120 Melsele. Belgium

PIONEER ELECTRONICS AUSTRALIA PT V. LTD. 178-184 Boundary Road, Braealde, Victoria 3195, Australia TEL [03] 5809911

© PIONEER ELECTRONIC CORPORATION 1994 o ZAU FEB. 1994 mm mm

Page 2

S-J320V/XE,S-J320/XE

PARTS LIST

NOTES:

- Parts marked by NS are generally unavailable because they are not in our Master Spare Parts List.

- The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing,

be sure to use parts of identical designation.
' Parts marked by @ are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.

Mark No. Description Parts Nor
Grille(for S-J320V) FRMG-061
Grille(for S-J320) FRMG»048
Network assy FRWN<057
Input terminal FRKX-004
Acoustic absorbent FRMT-027

Speaker

(Woofer for S-J320V)
Speaker

(Woofer for S-J320)
Speaker(Midrange)
Speaker(Tweeter)
Diaphragm assy

(in Tweeter)

Screw
(for Midrange and Woofer)

P16EC65-53F-1
P16EC65-52F-1
D66AP45-73F

FRWP-001
SXE1056

BYC40P200FZB

For Packing

Mark No. Description Parts No.
Speaker cord FRDD-010
Operating instructions FRRD-OSO

(English, French, German, Italian

Dutch, Spanish, Swedish, Portuguese,

Danish, Finnish, Nonmegian)

SCHEMATIC DIAGRAM AND PARTS LIST

NETWORK ASSY (FRWN-

BLU

57)

Protector FRHA-055
Protection mat FRHC-014
Packing case FRHG-106
(for S-J320V)
Packing case FRHG-107
(for S-J320)

Parts List

Mark No. Description Parts No.
C1 Capacitor(1.5uF) CES41R5KJ
