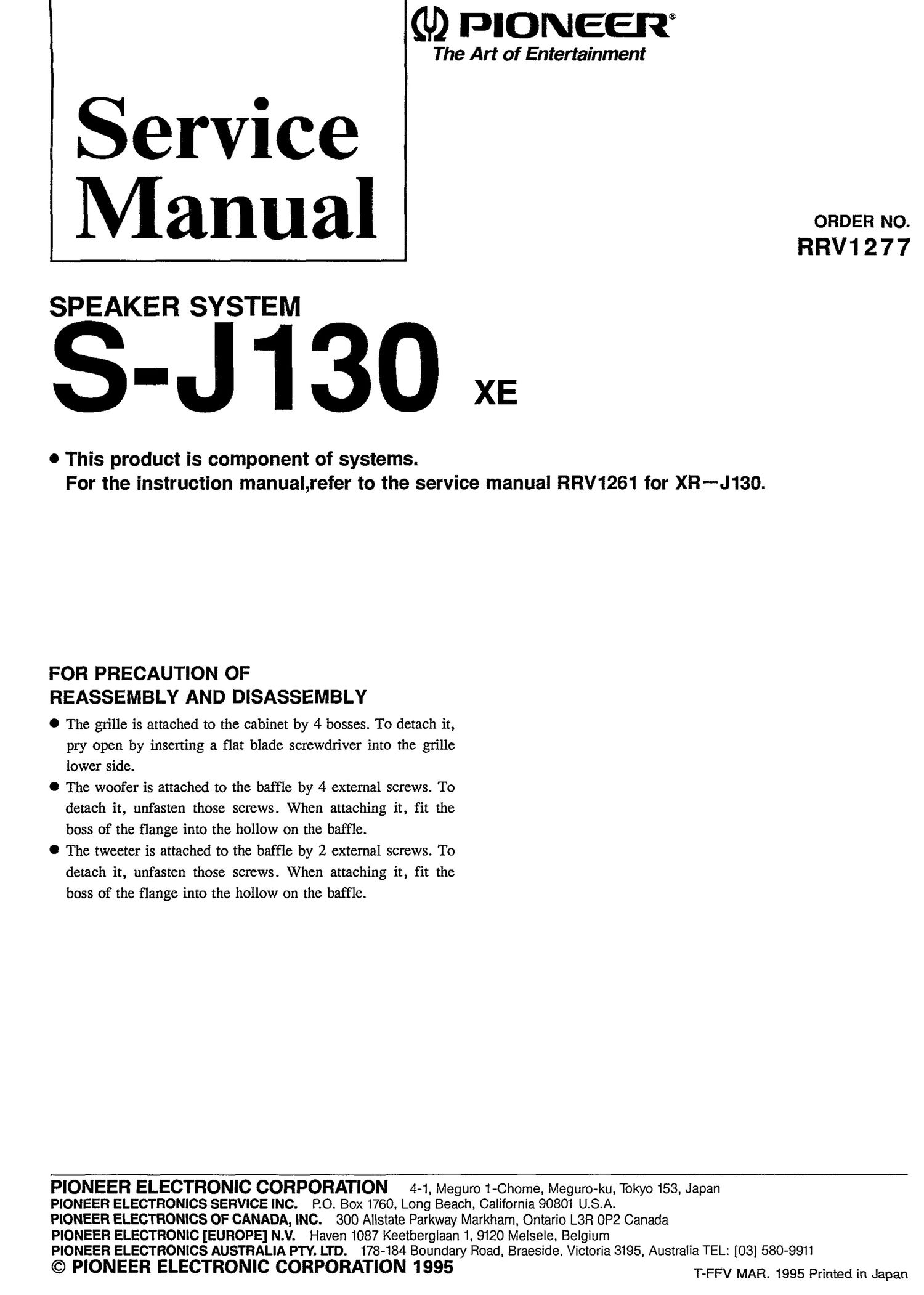

Page 1

(U) PIONEERG

The Art of Entertainment

ORDER NO.
RRV1 2 7 7

SPEAKER SYSTEM

S'J130 XE

0 This product is component of systems.
For the instruction manual,reter to the service manual RRV1261 for XR-J130.

FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY

0 The grille is attached to the cabinet by 4 bosses. To detach it,
pry Open by inserting a flat blade screwdriver into the grille
lower side.

0 The woofer is attached to the baffle by 4 external screws. To
detach it, unfasten those screws. When attaching it, fit the
boss of the flange into the hollow on the baffle.

0 The tweeter is attached to the baffle by 2 external screws. To
detach it, unfasten those screws. When attaching it, fit the
boss of the flange into the hollow on the baffle.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro t-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. P.O. Box 1760. Long Beach, California 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3H 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele. Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: [03] 580-9911

© PIONEER ELECTRONIC CORPORATION 1995 1*.va MAR 1995 Printed in Japan

Page 2

J130 I

PARTS LIST

NOTES:
0 Parts marked by NSF are generally unavailable because they are not in our Master Spare Parts List.

0 The A mark found on some component parts imiicares the importance of the safety factor of the part. Therefore, when replacing, be sure to
use parts of idenrical designation.
0 Parts marked by © are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.

For Packing

Mark No. Description Parts No. Mark No. Description Parts No.

Grille FRMG -079 Speaker cord FRDD- 015
Network assy FRWN-069 Protector (for top) FRHA-056
Input terminal FRKXHOOei Protector (for bottom) FRHA-057
Acoustic absorbent (for back board) FRMT -027 Protection mat S3 FRHC-OIS
Speaker (Woofer) P12EC65 -59D Packing case FRHG -- 132
Speaker (Tweeter) D66AP45 -73F

Screw (for Speaker) BYC40P160FZB

SCHEMATIC DIAGRAM AND PARTS LIST

NETWORK ASSY (FRWN-06 9) Mark No. Description Parts No.
i"_'_""'i [Network assyj
C1 Capacitor (2.2].113) CES42R2KJ
RED @. C:LU
-I-I Weee
O O
B L K G) WHT
I
I
RED
'6)
' C l 'I Tw e e 't e r~
l -e .
i 2 2 ,U. Fj WHT
