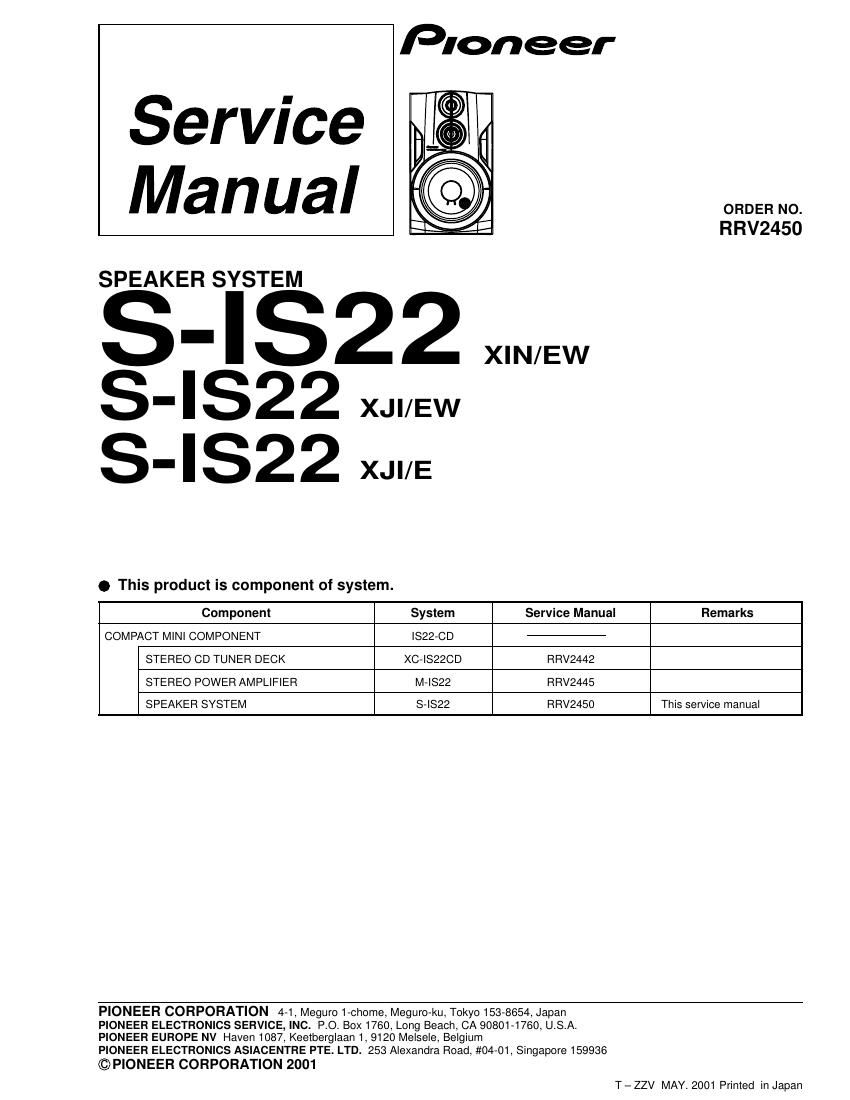

Pioneer sis 22 s service manual
This is the 5 pages manual for pioneer sis 22 s service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sis 22 s service manual (Ocr-read)
Page 1
S-IS22 2 FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The woofer is attached to the inner baffle by 4 external screws. To detach it, first remove the cosmetic baffle assy. To detach the cosmetic baffle assy, pry it open by inserting a flat blade screwdriver into the lower slot of it. To detach the woofer, carefully disconnect the wires of the woofer mounted on the network assy. To attach the woofer, face its terminal downward and fit the boss of the frame to the hole on the inner baffle, then fasten those screws. The mid-range is attached to the inner baffle by 2 external screws. To detach it, first remove the cosmetic baffle assy. To detach the cosmetic baffle assy, pry it open by inserting a flat blade screwdriver into the lower slot of it. To detach the mid-range, carefully disconnect the wires of the mid-range mounted on the network assy. To attach the mid-range, face its terminal upward and fit the boss of the frame to the hole on the inner baffle, then fasten those screws. The tweeter is attached to the inner baffle by press-fitting. To detach it, first remove the cosmetic baffle assy. To detach the cosmetic baffle assy, pry it open by inserting a flat blade screwdriver into the lower slot of it. To exchange the tweeter, do it with the network assy. To attach the tweeter, replace it on the inner baffle and stick the tape to the lead wire on the slot of the inner baffle. (Woofer) (Mid-Range) (Tweeter) The input terminal is attached to the back board of the cabinet by press-fitting. To detach the input terminal, pry it open by inserting a flat blade screwdriver into the upper and lower slot of the input ter- minal. To attach the input terminal, replace it on the back board of the cabinet correctly by press-fitting. (The red terminal is right side.) The network assy is attached between the loudspeakers and the input terminal. To detach it, first remove the cosmetic baffle assy. To detach the cosmetic baffle assy, pry it open by inserting a flat blade screwdriver into the lower slot of it. Then remove the woofer and the mid-range speaker. To detach the each speaker, care- fully disconnect the wires of the each speaker mounted on the network assy. To detach the network assy, carefully disconnect the wires to the input terminal. To attach the network assy, replace it in the cabinet correctly. The cosmetic baffle assy is attached to the inner baffle of the cabinet by press-fitting. To detach the cosmetic baffle assy, pry it open by inserting a flat blade screwdriver into the lower slot of it. To attach the cosmetic baffle assy, replace it on the inner baffle of the cabinet by press-fitting. (Input Terminal) (Network Assy) (Cosmetic Baffle Assy)
Page 2
S-IS22 3 Mark No. Description Part No. For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST NSP Cabinet See Contrast table (2) NSP Inner Bafffle SNK2503 Network Assy SWN1666 NSP Diaphragm Assy 20 (Tw) SXE1096 NSP Packing (Inner Baffle-Woofer Frame) KEC1088 Input Terminal KKX1014 Non Skid Pad SEC1374 NSP Packing (Cosmetic Baffle-Inner Baffle) SEC1524 NSP Stamped Model Label See Constrast Table (2) NSP Model Label See Constrast Table (2) NSP Acoustic Absorbent (Back side) SMV1886 NSP Acoustic Absorbent (Top side) SMV2086 Cosmetic Baffle Assy SXB1429 NSP Packing SEC1445 NSP Punching Net SNC1186 NSP Cosmetic Baffle SNK2504 NSP Cosmetic Ring SNK2505 NSP Cosmetic Diffuser SNK2506 NSP Hot Melt Adhesive ZBX-1942 Speaker (Wf) A16LC83-54D Speaker (Mid) FD66AP45-59D Screw (Woofer and Mid-Range) BPZ40P120FMC (1) PARTS LIST Mark No. Description Part No. Speaker Cord See Contrast table (2) Top Protector SHA2275 Bottom Protector SHA2276 Packing Case See Contrast table (2) NSP Polyethylene Bag SHL1212 (2) CONTRAST TABLE S-IS22/XIN/EW ,S-IS22/XJI/EW and S-IS22/XJI/E models are constructed the same except for the following: NSP Cabinet SMM1931 SMM1931 SMM1951 NSP Stamped Model Label SME3133 SME3233 SME3180 NSP Model Label SAN2922 SAN2922 SAN2965 Speaker Cord SDS1057 SDS1057 SDS1064 Packing Case SHG2324 SHG2371 SHG2356 MarkSymbol and DescriptionPart No. S-IS22/XIN/EW S-IS22/XJI/EW S-IS22/XJI/ERemarks
