Pioneer sis 21 x service manual
This is the 3 pages manual for pioneer sis 21 x service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

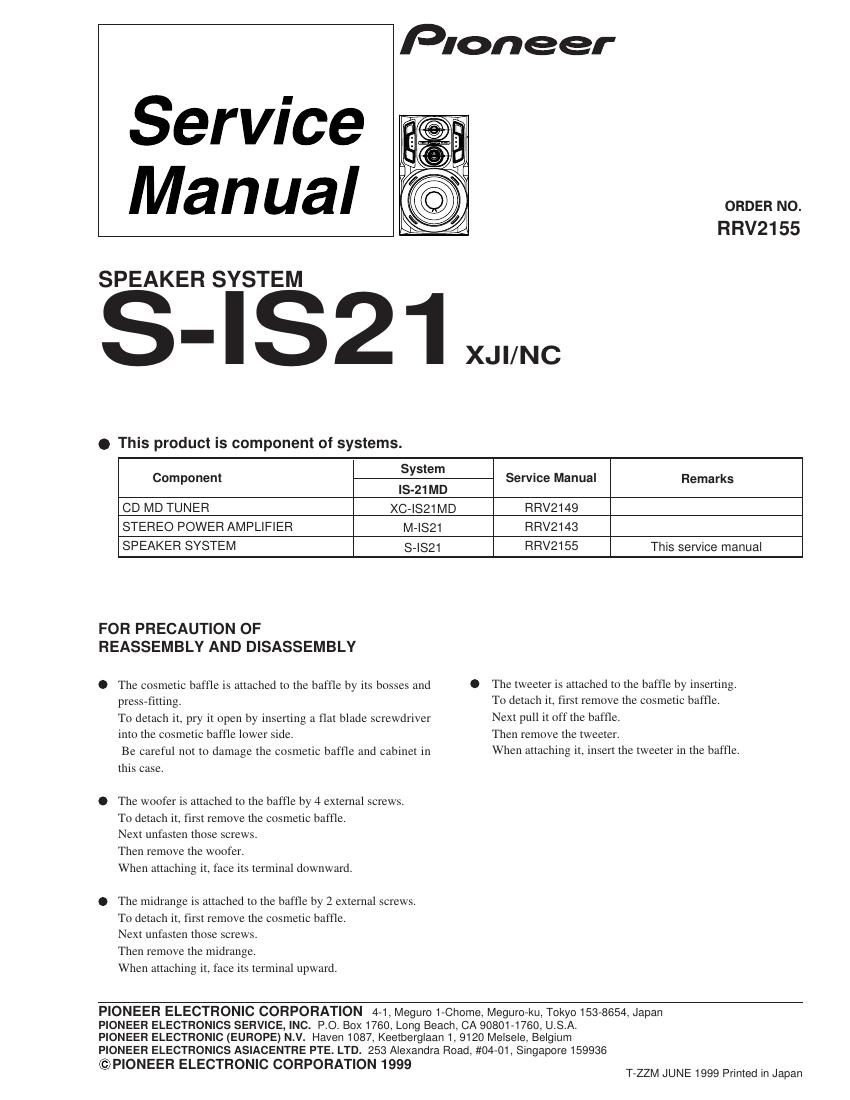

Extracted text from pioneer sis 21 x service manual (Ocr-read)
Page 1
2 S-IS21 Speaker Wire SDS1057 Top Protector SHA2170 Bottom Protector SHA2171 Packing Case SHG2210 NSP Poly Bag SHL1212 NSP Cabinet SMM1853 NSP Inner Baffle SNK2398 Network ASSY SWN1604 Input Terminal KKX1014 Non-Skid Pads SEC1374 NSP Packing SEC1444 NSP Stamped Model Label SME2931 NSP Model Label SAN2720 NSP Acoustic Absorbent SMV1886 NSP Punching Net SNC1174 Cosmetic Baffle ASSY SXB1372 NSP Packing SEC1445 NSP Cosmetic Baffle SNK2399 NSP Cosmetic Ring SNK2400 Speaker (Woofer) A16LC83-52D Speaker (Mid-range) FD66AP45-55D Screw (for Woofer and Mid-range) BPZ40P120FMC Mark No. Description Part No. For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. Network ASSY (SWN1604) SCHEMATIC DIAGRAM Woofer Mid-range I NPUT Tweeter 1.5µF/63V Blue White Red BlackRed White White Blue
Page 2
3 S-IS21 8 912 10 1Screw BPZ40P120FMC6 11 Acoustic Absorbent 72 4 1 Non Skid Pad Model Label Cosmetic Baffle Assy Input Terminal Punching NetAdhesive Cabinet Speaker Speaker 4 1 1 1 1 1 6 5 4 3 2 1Part name Num. No. Remarks Part name Num. No. Remarks 1 Network Assy KKX1014 210 367.5 8 2 13 4 56 9 97 1210 194 (267.6) BLUE WHITE REDWHITE BLACK RED 11 PRODUCT APPEARANCE
