Pioneer shtd 510 service manual

This is the 9 pages manual for pioneer shtd 510 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

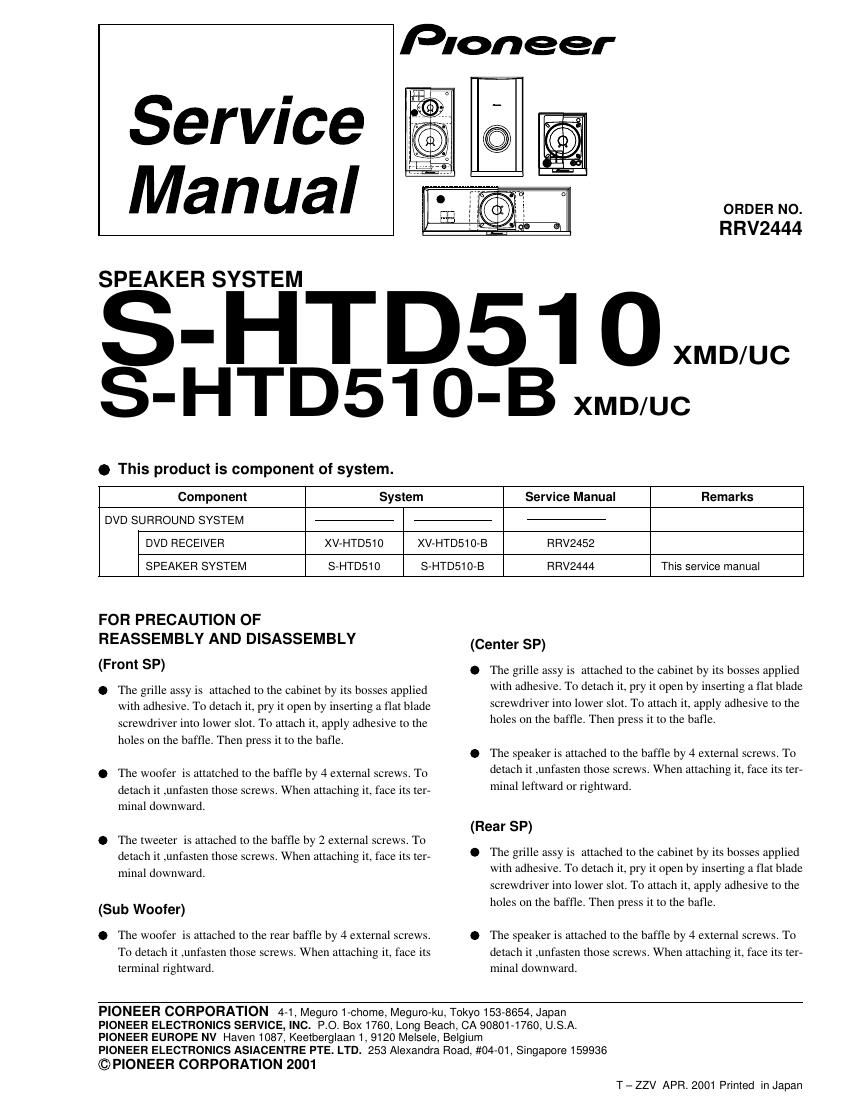

Page: 1 / 9
pioneer shtd 510 service manual

Extracted text from pioneer shtd 510 service manual (Ocr-read)


Page 1

S-HTD510, S-HTD510-B 2Mark No. Description Part No. For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST NSP CS ASSY (Front SP) See Contrast table (2) NSP CS ASSY (Sub Wf)) See Contrast table (2) NSP CS ASSY (Center SP) See Contrast table (2) NSP CS ASSY (Rear SP) See Contrast table (2) Speaker Wire (for Front SP) See Contrast table (2) Speaker Wire (for Sub Wf) See Contrast table (2) Speaker Wire (for Center SP) See Contrast table (2) Speaker Wire (for Rear SP) See Contrast table (2) Top Protector SHA2289 Upper Middle Protector SHA2290 Lower Middle Protector SHA2291 Bottom Protector SHA2292 Packing Case See Contrast table (2) Protection Sheet (for Front SP) SHC1773 Protection Sheet (for Sub Wf) SHC1774 Protection Sheet (for Center SP) SHC1775 Protection Sheet (for Rear SP) SHC1776 (1) PARTS LIST (2) CONTRAST TABLE S-HTD510/XMD/UC and S-HTD510-B/XMD/UC models are constructed the same except for the following: Mark S-HTD510/XMD/UC S-HTD510-B/XMD/UC NSP CS Assy (Front SP) SMW1620 SMW1627* 1 NSP CS Assy (Sub Wf) SMW1621 SMW1628* 2 NSP CS Assy (Center SP) SMW1622 SMW1629* 3 NSP CS Assy (Rear SP) SMW1623 SMW1630* 4 Speaker Wire (for Front SP) SDS1102 Not used Speaker Wire (for Sub Wf) SDS1103 Not used Speaker Wire (for Center SP) SDS1104 Not used Speaker Wire (for Rear SP) SDS1105 Not used Packing Case SHG2328 SHG2337 Part No. Remarks Symbol and Description * 1 : Refer to CS Assy (Front SP) . * 2 : Refer to CS Assy (Sub Wf) . * 3 : Refer to CS Assy (Center SP). * 4 : Refer to CS Assy (Rear SP).

Page 2

S-HTD510, S-HTD510-B 3 CS ASSY (Front SP) (1) PARTS LIST Speaker (Tw) E52AP39-59F Speaker (Wf) W10DC61-56F Network Assy See Contrast table (2) Input Terminal See Contrast table (2) Grille Assy See Contrast table (2) Grille Sash See Contarst table (2) Screw (for Grille Sash) BPZ40P120FZB Screw (for Speaker) BYC40P140FZB Mark No. Description Part No. (2) CONTRAST TABLE SMW1620 and SMW1627 models are constructed the same except for the following: Mark SMW1620 SMW1627 Network Assy SWN1667 SWN1673 Input Terminal SKX1068 Not used Grille Assy SMG1717 SMG1725 Grille Sash SNK2516 SNK2542 Part No. Remarks Symbol and Description CS ASSY (Sub Wf) (1) PARTS LIST Speaker A14LU83-51F CS Cord See Contrast table (2) Gasket SEC1527 Input Terminal See Contrast table (2) Cosmetic Baffle See Contrast table (2) Screw (for Speaker) BYC40P140FZB Mark No. Description Part No. (2) CONTRAST TABLE SMW1621 and SMW1628 models are constructed the same except for the following: Mark SMW1621 SMW1628 CS Cord SDD1301 SDD1306 Input Terminal SKX1070 Not used Cosmetic Baffle SNK2519 SNK2545 Part No. Remarks Symbol and Description
