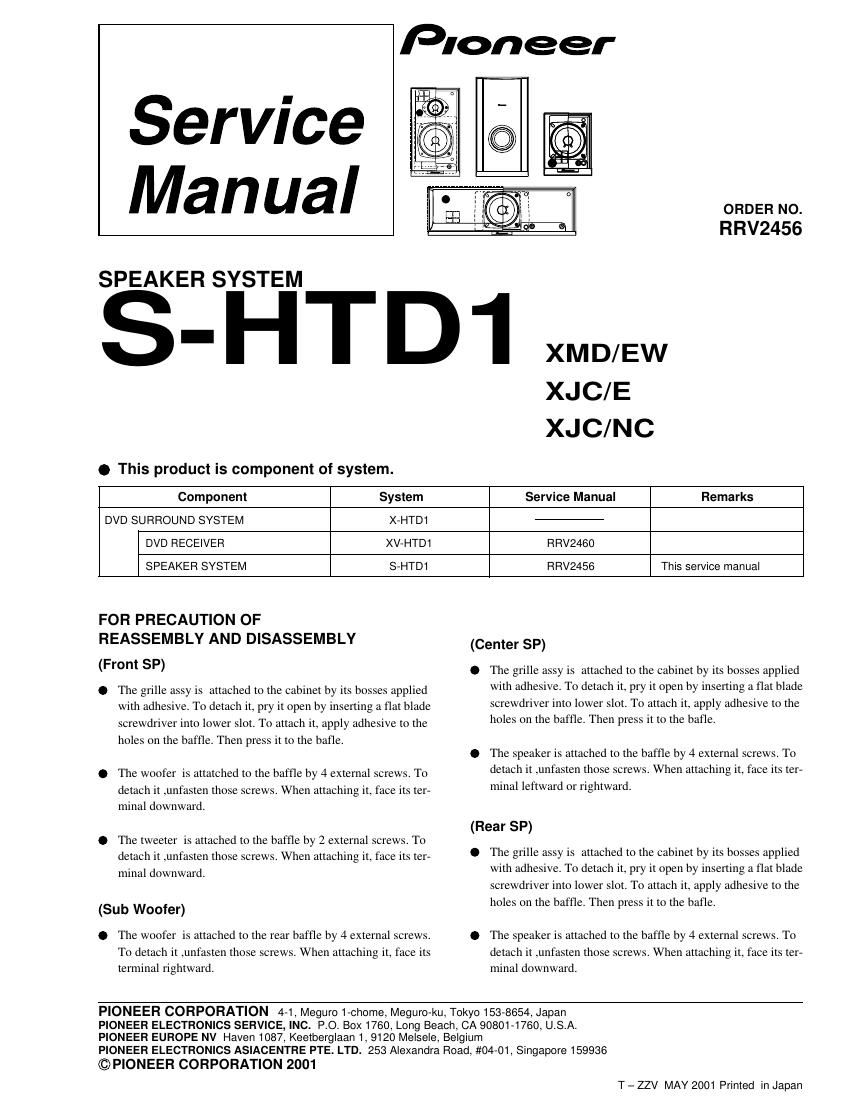

pioneer shtd 1 service manual

Extracted text from pioneer shtd 1 service manual (Ocr-read)

Page 1

S-HTD1 2Mark No. Description Part No. For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST NSP CS ASSY (Front SP) See Contrast table (2) NSP CS ASSY (Sub Wf)) See Contrast table (2) NSP CS ASSY (Center SP) See Contrast table (2) NSP CS ASSY (Rear SP) See Contrast table (2) Speaker Wire (for Front SP) SDS1102 Speaker Wire (for Sub Wf) SDS1103 Speaker Wire (for Center SP) SDS1104 Speaker Wire (for Rear SP) SDS1105 Top Protector SHA2289 Upper Middle Protector SHA2290 Lower Middle Protector SHA2291 Bottom Protector SHA2292 Packing Case See Contrast table (2) Protection Sheet (for Front SP) SHC1773 Protection Sheet (for Sub Wf) SHC1774 Protection Sheet (for Center SP) SHC1775 Protection Sheet (for Rear SP) SHC1776 (1) PARTS LIST (2) CONTRAST TABLE S-HTD1/XMD/EW, S-HTD1/XJC/E and S-HTD1/XJC/NC models are constructed the same except for th following: * 1 : Refer to CS Assy (Front SP) . * 2 : Refer to CS Assy (Sub Wf) . * 3 : Refer to CS Assy (Center SP). * 4 : Refer to CS Assy (Rear SP). NSP CS ASSY (Front SP) SMW1633* 1 SMW1641* 1 SMW1645* 1 *1 Constructed same. NSP CS ASSY (Sub Wf) SMW1634* 2 SMW1642* 2 SMW1646* 2 *2 Constructed same. NSP CS ASSY (Center SP) SMW1635* 3 SMW1643* 3 SMW1647* 3 *3 Constructed same. NSP CS ASSY (Rear SP) SMW1636* 4 SMW1644* 4 SMW1648* 4 *4 Constructed same. Packing Case SHG2344 SHG2353 SHG2354 MarkSymbol and DescriptionPart No. S-HTD1/XMD/EW S-HTD1/XJC/E S-HTD1/XJC/NCRemarks

Page 2

S-HTD1 3 CS ASSY (Front SP) PARTS LIST Speaker (Tw) E52AP39-59F Speaker (Wf) W10DC61-56F Network Assy SWN1667 Input Terminal SKX1068 Grille Assy SMG1717 Grille Sash SNK2516 Screw (for Grille Sash) BPZ40P120FZB Screw (for Speaker) BYC40P140FZB Mark No. Description Part No. CS ASSY (Sub Wf) PARTS LIST Speaker A14LU83-51F CS Cord SDD1301 Gasket SEC1527 Input Terminal SKX1070 Cosmetic Baffle SNK2519 Screw (for Speaker) BYC40P140FZB Mark No. Description Part No. CS ASSY (Center SP) PARTS LIST Speaker D87DU54-52F CS Cord SDD1300 Input Terminal SKX1069 Grille Assy SMG1718 Grille Sash SNK2517 Screw (for Grille Sash) BPZ40P120FZB Screw (for Speaker) BYC40P140FZB Mark No. Description Part No. CS ASSY (Rear SP) PARTS LIST Speaker D87DC54-58F CS Cord SDD1302 Input Terminal SKX1071 Grille Assy SMG1719 Grille Sash SNK2518 Metal Fixture SNA1400 Screw (for Metal Fixture) BYC35P140FZB Screw (for Grille Sash) BPZ40P120FZB Screw (for Speaker) BYC40P140FZB Mark No. Description Part No.
