Extracted text from pioneer shs 88 cr service manual (Ocr-read)

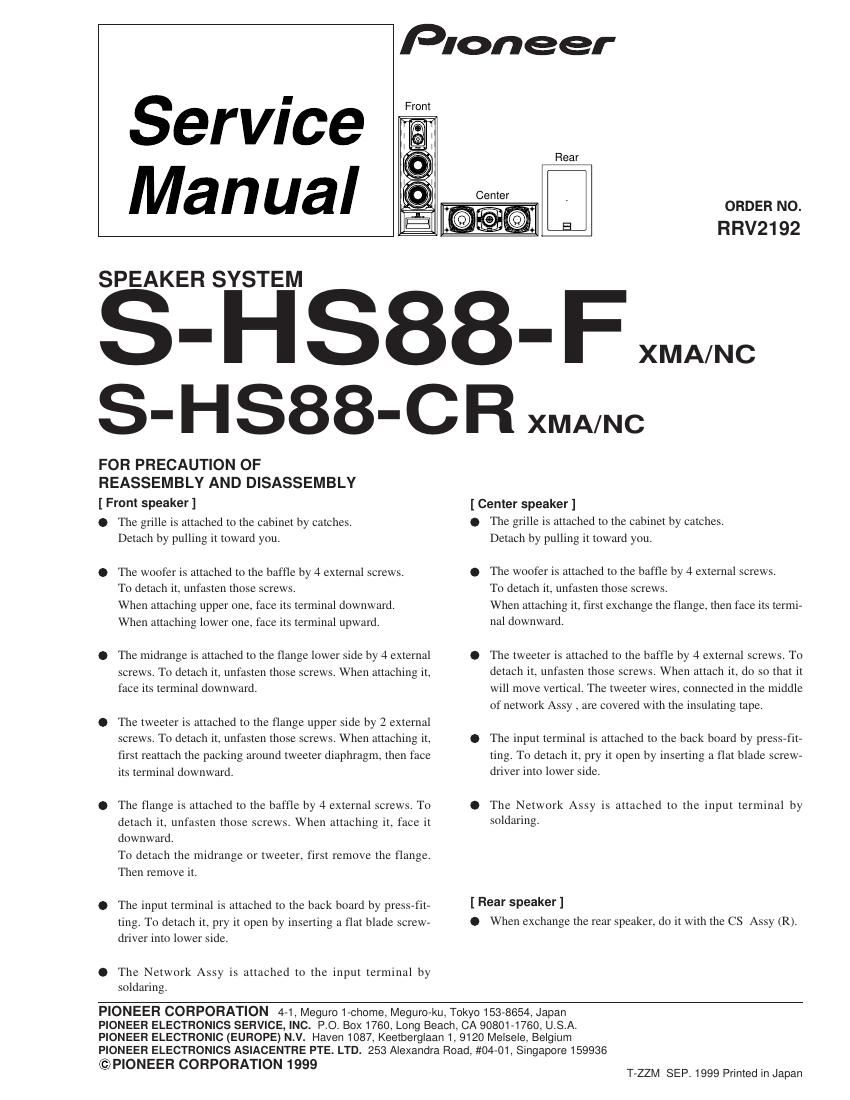

Page 1
2 S-HS88-F, S-HS88-CR Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. [S-HS88-F] NSP CS Assy SMW1567 NSP Label Back SAN2775 Packing (for Flange) SEC1454 Packing (for Duct) SEC1455 Packing (for Tweeter) SEC1457 Input Terminal Board SKX1059 Grille Assy SMG1676 NSP Grille Frame SNK2444 NSP Catch SNK-883 Duct Flange Assy SNX1139 NSP Badge SAM1443 NSP Duct Flange SNK2446 Flange Assy SNX1140 NSP Flange SNK2445 Network Ass'y SWN1624 Speaker (Woofer) Q20EU82-51L Speaker (Mid-range) SWS9021 Speaker (Tweeter) SWS9022 Screw (for WF and Flange Assy) SBA1176 Screw (for Mid-range) BPZ30P060FZK Screw (for Tweeter)) BPZ30P080FZK For Packing NSP Accessories Assy SME2997 NSP Polyethylene Bag E11-024 Speaker Wire (red) SDS1074 Operating Instructions SRD1219 ( English/Spanish/Chinese) Protector (L) SHA2204 Protector (R) SHA2205 Packing Case SHG2246 Packing Bag SHL1243 [S-HS88-CR] NSP CS Assy (C) SMW1568 NSP Label Back SAN2776 CS Assy (R) SMW1569 NSP Label Back SAN2779 Input Terminal Board SKX1059 Grille Assy (Center) SMG1677 NSP Badge SAM1443 NSP Grille Frame SMH1005 Grille Assy (Rear) SMG1678 NSP Badge SAM1443 NSP Grille Frame SNK2448 Cosmetic Flange SNK2447 Speaker (Center) SWM9016 NSP Speaker (Rear) SWM9017 Speaker (Tweeter) ASY-260B Network Assy (Center) SWN1625 Input Terminal Assy (Rear) SWT1052 Input Terminal Board SKX1059 Screw (for rear bracket) BYC30P120FZB Screw (for rear speaker) BYC40P130FZB Screw (for center speaker) SBA1177 For Packing NSP Accessories Assy SME2998 NSP Polyethylene Bag E11-024 Speaker Wire (orange) SDS1075 Speaker Wire (blue) SDS1076 Speaker Wire (yellow) SDS1077 Operating Instructions SRD1220 ( English/Spanish/Chinese) Protector SHA2206 Packing Case SHG2247 NSP Packing Bag (Center) SHL1242 Packing Bag (Rear) SHL1244
Page 2
3 S-HS88-F, S-HS88-CR Network ASSY (SWN1624) SCHEMATIC DIAGRAM Woofer x2 Mid-range I N Tweeter 1.0µF 0.82mH 0.18mHRed White White Green White Blue 4.7µF Woofer x2 I N Tweeter 1.0µF 0.33mHRed White White Blue Network ASSY (SWN1625)
