Pioneer shs 77 f service manual
This is the 4 pages manual for pioneer shs 77 f service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer shs 77 f service manual (Ocr-read)

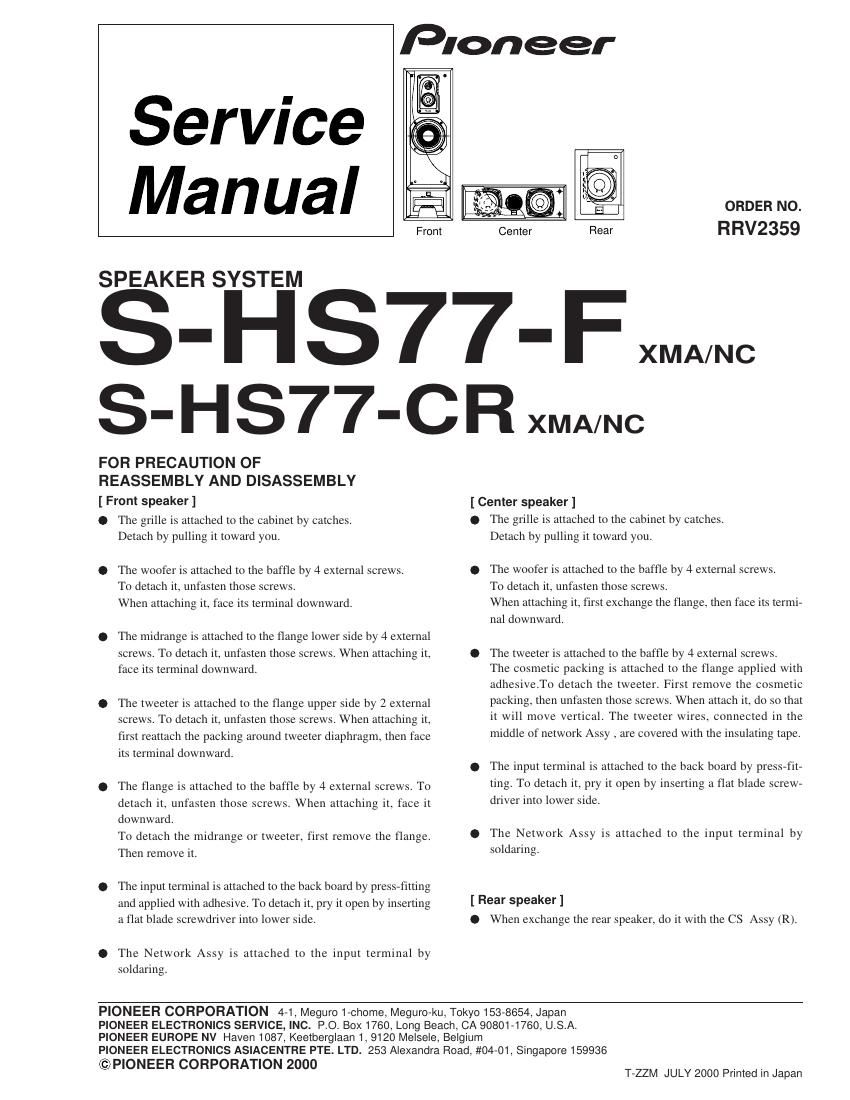

Page 1
2 S-HS77-F, S-HS77-CR Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. [S-HS77-F] NSP CS Assy SMW1608 NSP Label Back SAN2869 Packing (for Flange) SEC1454 Packing (for Duct) SEC1455 Packing (for Tweeter) SEC1457 Input Terminal Board SKX1059 Grille Assy SMG1676 NSP Grille Frame SNK2444 NSP Catch SNK-883 Flange Assy SNX1140 NSP Flange SNK2445 Duct Flange Assy SNX1143 NSP Badge SAM1443 NSP Duct Flange SNK2446 Network Ass'y SWN1644 Speaker (Woofer) Q20EU92-51F Speaker (Mid-range) SWS9021 Speaker (Tweeter) SWS9022 Screw (for WF and Flange Assy) SBA1176 Screw (for Mid-range) BPZ30P060FZK Screw (for Tweeter)) BPZ30P080FZK For Packing NSP Accessories Assy SME2997 NSP Polyethylene Bag E11-024 Speaker Wire (red) SDS1074 Operating Instructions SRD1221 ( English/Spanish/Chinese) Protector (L) SHA2204 Protector (R) SHA2205 Packing Case SHG2303 Packing Bag SHL1243 [S-HS77-CR] NSP CS Assy (C) SMW1609 NSP Label Back SAN2870 NSP CS Assy (R) SMW1610 NSP Label Back SAN2871 Packing SEC1507 Felt SER1240 Input Terminal Board SKX1059 Grille Assy (Center) SMG1677 NSP Badge SAM1443 NSP Grille Frame SMH1005 Cosmetic Flange SNK2447 NSP Catch SNK2499 Speaker (Center) SWM9016 Speaker (Tweeter) FK26AP02-63F Network Assy (Center) SWN1657 Screw (for rear speaker) BYC35P250FZB Screw (for center speaker) SBA1177 For Packing NSP Accessories Assy SME2998 NSP Polyethylene Bag E11-024 Speaker Wire (orange) SDS1075 Speaker Wire (blue) SDS1076 Speaker Wire (yellow) SDS1077 Operating Instructions SRD1222 ( English/Spanish/Chinese) Protector SHA2206 Packing Case SHG2304 NSP Packing Bag (Center) SHL1242 Packing Bag (Rear) SHL1244
Page 2
3 S-HS77-F, S-HS77-CR Network ASSY (SWN1644) SCHEMATIC DIAGRAM Network ASSY (SWN1657) Woofer Mid-range I N Tweeter 0.68µF 0.82mH 0.18mHRed White Green White Blue White 1.8µF Woofer Woofer I N Tweeter 1.0µF 0.39mHRed White White Blue 8 9 10Screw (for WF,Flange) Screw (for Mid) Screw (for TW) Network ASSY Input terminal Back Label Catch Acoustic Absorbent8 4 2 1 1 1 4 1 11 12 13 14 15 16 17 18 19 20 7Cabinet Grille Duct Panel ASSY Flange ASSY Speaker (Woofer) Speaker (Mid-range) Speaker (Tweeter) Packing Packing PackingQ20EU92-51F SWS9021 SWS9022 SEC1455 SEC1454 SEC1457 1 1 1 1 1 1 1 1 1 1 6 5 4 3 2 1Part name Num. No. Remarks Part name Num. No. Remarks FRONT SP SBA1176 BPZ30P060FZK BPZ30P080FZK 290 900 300 1 2 3 5 6 47 9 10 1113 12 14 331 16 15 8 17 1718 (20) PRODUCT APPEARANCE
