Pioneer shs 55 service manual

This is the 2 pages manual for pioneer shs 55 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
pioneer shs 55 service manual

Extracted text from pioneer shs 55 service manual (Ocr-read)

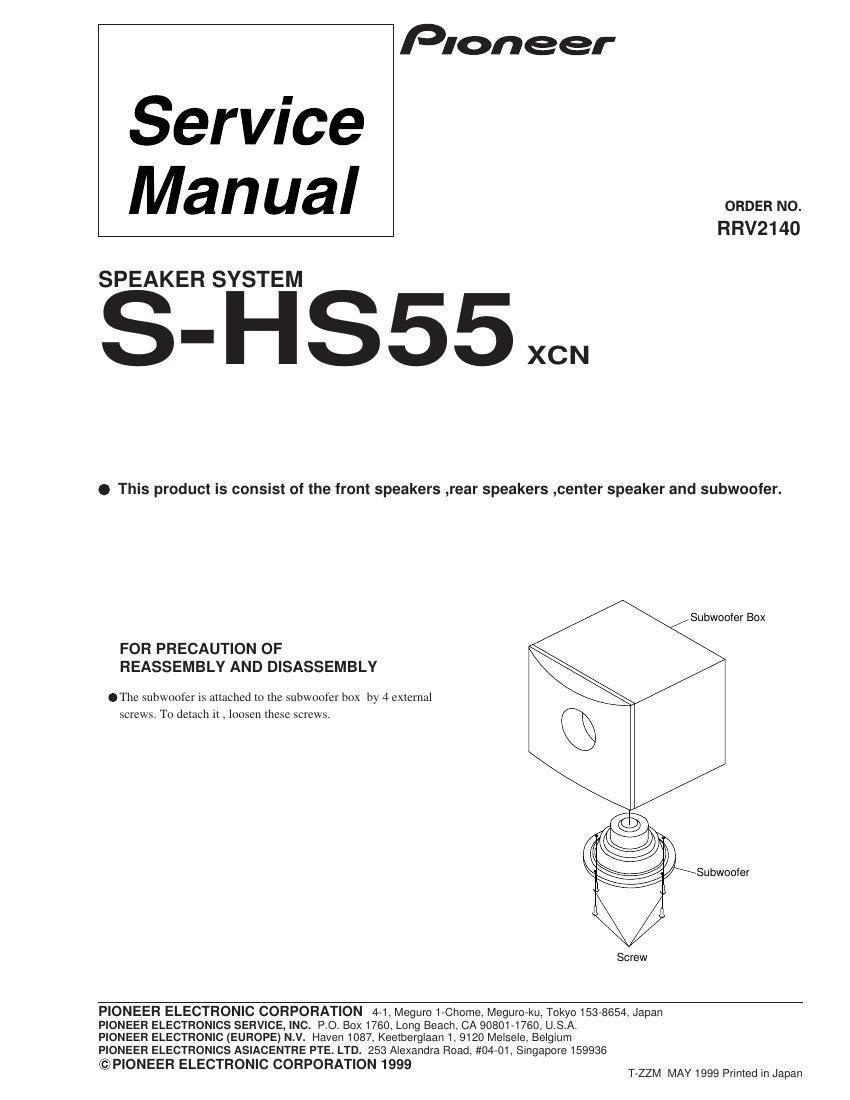

Page 1

2 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST S-HS55 Mark No. Description Part No. Rear Speaker Box & Label SHS55250297S Sub Woofer Box & Label SHS55300297S Front Speaker Box & Label SHS55400297S Center Speaker Box & Label SHS55401297S VSX108 Speaker Wire ASSY SP108SPKWIRE 170mm Speaker 6/6 OHM 02917006412S (Sub Woofer) VSX108 Speaker Polyfoam Middle 14901080000S VSX108 Speaker Polyfoam Top 14901083000S VSX108 Speaker Polyfoam Bottom 14901084000S S-HS55 Inst Book P 152405500297 S-HS55 Speaker CTN Box P 153405520297 For Packing
