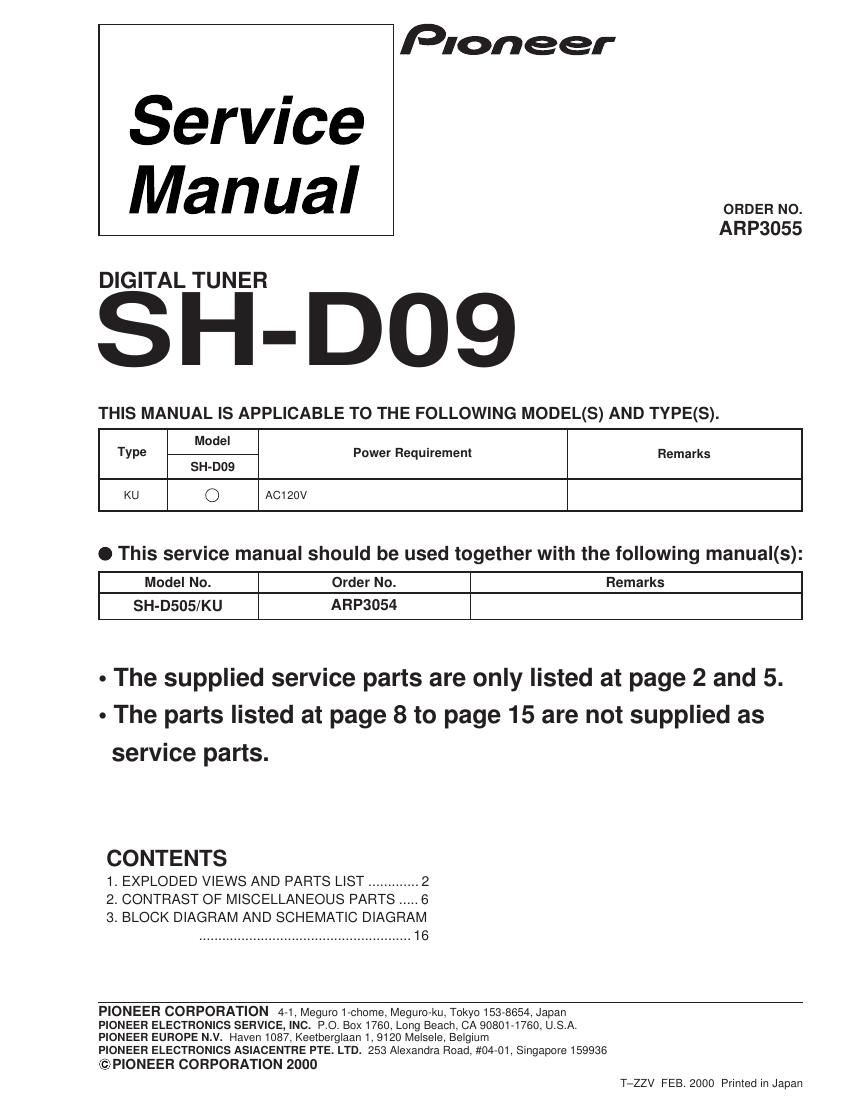

Page 1

Pioneer

Service
Manual

ARP3055

DIGITAL TUNER

SH-D09

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model
Type Power Requirement Remarks
SH-D09
KU Q AC120V

O This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
SH-D505/KU ARP3054

- The supplied service parts are only listed at page 2 and 5.
- The parts listed at page 8 to page 15 are not supplied as
service parts.

CONTENTS

1. EXPLODED VIEWS AND PARTS LIST ............. 2
2. CONTRAST OF MISCELLANEOUS PARTS ..... 6
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

....................................................... 16

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2000
T-ZZV FEB. 2000 Printed in Japan

Page 2

SH-D09

1. EXPLODED VIEWS AND PARTS LIST

NOTES .' I Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.

1.1 PACKING

Using the Operation Manual bag tape,
seal the bag too.


Polystyrene Cover

Ref. No. Part No. Description

PACKING PARTS LIST

Accessories

- Instruction Manual
- Warranty Card
- Holder Assy

NSP SPAK00651MEZZ Packing Case
Buffer Material NSP SPAKP0041MEZZ Polystyrene Cover
(nghl and Lelt) NSP SPAKX0182MEZZ Buffer Material
NSP SSAKAOOOSMEZZ Polyethylene Bag


SU PPLIED ACCESSORIES

B o d i

N2? Lg}; 89' 6" ACCESSORIES

ANG2327 Holder Assy
Packing Case
* ACCESSORIES
(NOT REPLACEMENT ITEM)
Lieggggngefizj NSP TiNS-6852MEZZ Instruction Manual (English)
' NSP ARY7023 Warranty Card
