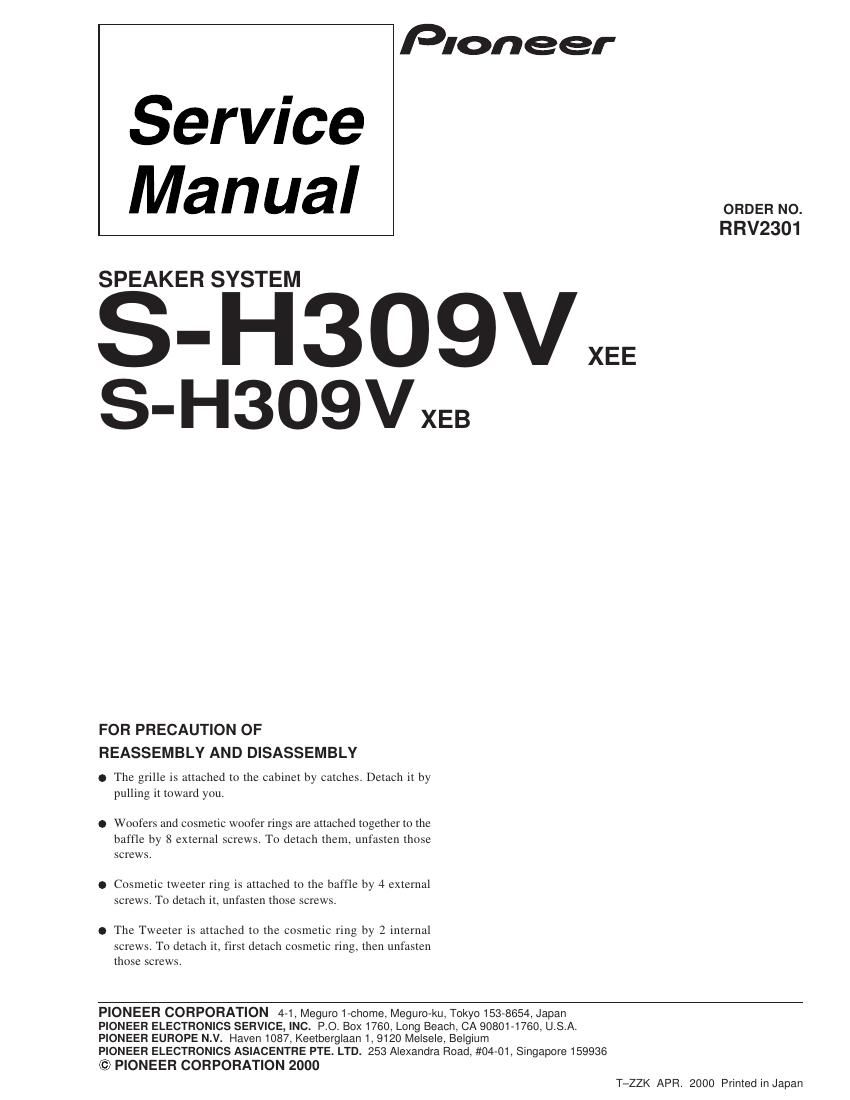

Page 1

S-H309V 2 NOTES : Parts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Mark No. Description Part No. PARTS LIST Mark No. Description Part No. Grille Assy FRMG-180 Network Assy FRWN-162 Duct FRNK-385 Speaker (Woofer) B13DC65-51K Speaker (Tweeter) K26EP09-51D Screw (for Woofer) FRBA-028 Screw (for Tweeter) FRBA-027 Woofer Ring FRNK-382 Tweeter Ring FRNK-383Speaker Cord FRDD-034 Operating Instructions FRRD-138 Protector FRHA-186 Protector FRHA-190 Packing Case FRHG-279 Accessory FREA-013 SCHEMATIC DIAGRAM Woofer 2.2 mF Tweeter INPUT Black Red Blue White Red White NETWORK ASSY (FRWN-162) Woofer 0.82 mH 0.33 mH For Packing
