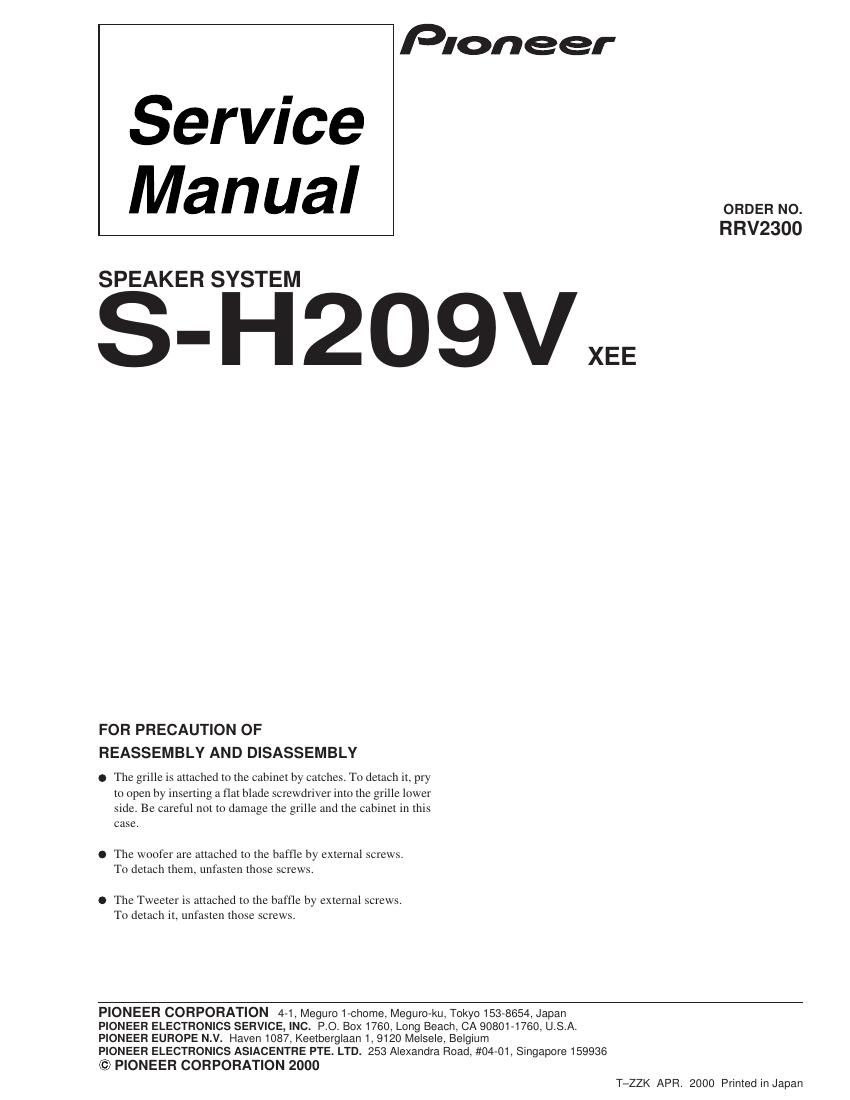

Pioneer sh 209 v service manual
This is the 2 pages manual for pioneer sh 209 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sh 209 v service manual (Ocr-read)
Page 1
S-H209V 2 NOTES : Parts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Mark No. Description Part No. PARTS LIST Mark No. Description Part No. Grille Assy FRMG-181 Network Assy FRWN-161 Speaker (Woofer) P12EC65-62D Speaker (Tweeter) D66AP45-84F Network Cable FRDF-026Speaker Cord FRDD-041 Operating Instructions FRRD-140 Protector FRHA-194 Packing Case FRHG-278 SCHEMATIC DIAGRAM Woofer 4.7 mF Tweeter INPUT Blue White Red White NETWORK ASSY (FRWN-161) NETWORK CABLE (FRDF-026) Woofer 6.8 W For Packing
