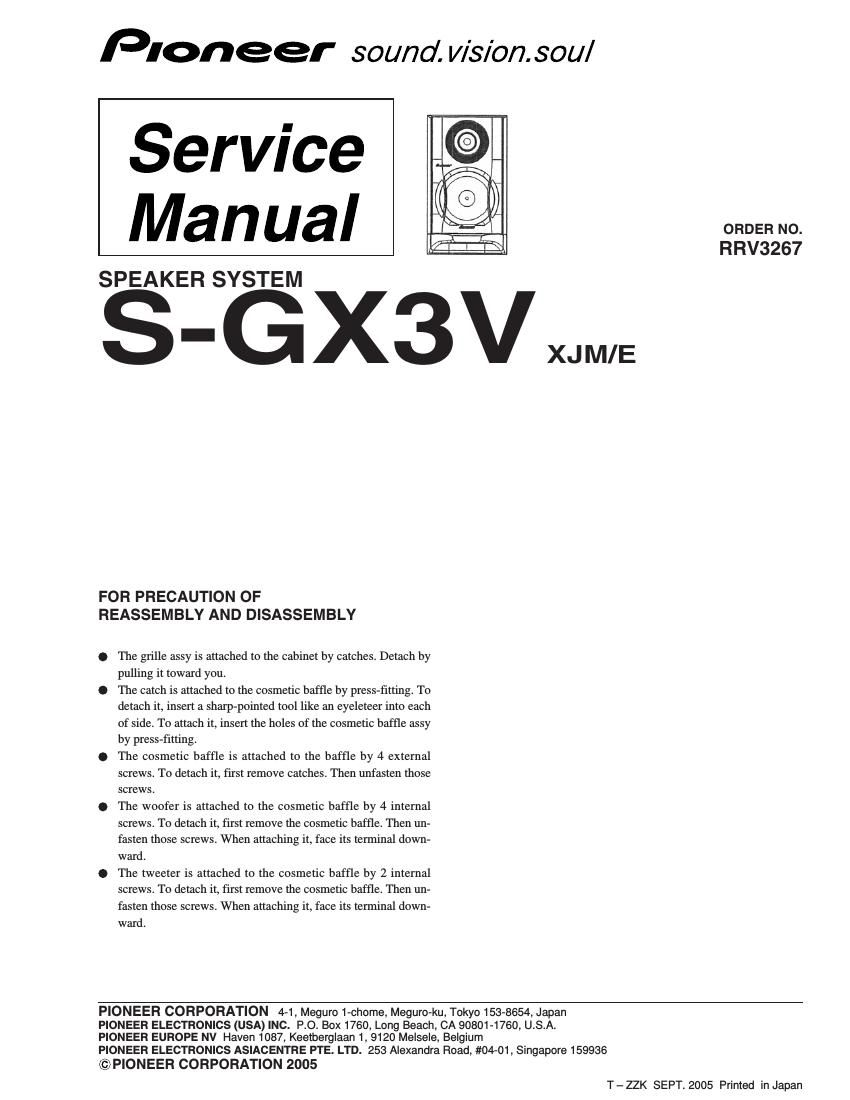

pioneer s gx3v service manual

Extracted text from pioneer s gx3v service manual (Ocr-read)


Page 1

2 1 23 4 1234 C D F A B E S-GX3V 1Non Skid Pad DUF804001-0014 2Protector ITF830353-0001 3Packing Case ICC8SGX3V-FC10 For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST 1 2 2 RIGHT SPEAKERLEFT SPEAKER V-JOINT 3 Speaker System Mark No. Description Part No.

Page 2

3 1 234 1 23 4 C D F A B E S-GX3V 1 8 9 9 6 2 3 7 7 7 7 5 5 5 4 Cloth 1Speaker (Woofer) A14LU75-55D 2Speaker (Tweeter) E52AP39-62D 3Cosmetic Baffle Assy (L) ANF800161-0001 3Cosmetic Baffle Assy (R) ANF800161-0002 4Grille Assy ANF803263-0001 5Catch BRG800012-0002 6Network Assy NWA800001-0002 7Screw (for Cosmetic Baffle) PYC40P250FTC 8Screw (for Tweeter) BBZ35P080FTC 9Screw (for Woofer) BPZ40P100FTC Speaker System Mark No. Description Part No. SCHEMATIC DIAGRAM Network Assy (NWA800001-0002) 2.2µF/50V Long Leg C INPUT Woofer Black Red WhiteRed Tweeter Short Leg
