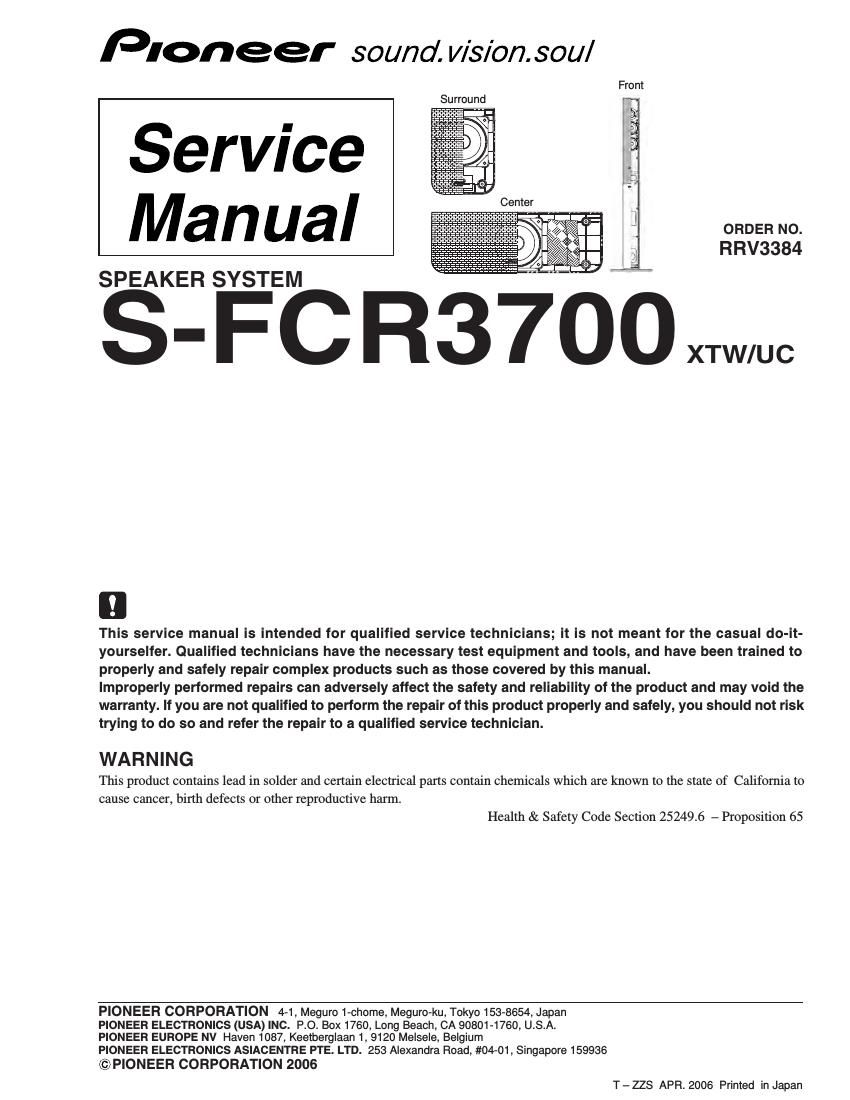

Pioneer sfcr 3700 service manual
This is the 7 pages manual for pioneer sfcr 3700 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sfcr 3700 service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E S-FCR3700 1. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY GRILLE The grille is attached to the cabinet by its bosses applied with adhesive. To detach it, pry it open by inserting a flat blade screwdriver into lower right and lower left slot. To attach it, apply adhesive to the holes on the baffle. Then press it to the baffle. CAUTION There are 10 bosses for press-fitting at the grille. To detach the grille, remove in order from lower bosses. (Refer to thefigure in page 4.) In order not to damage the bosses, don't remove it forcibly. Pry it open little by little. Be sure to insert a flat blade screwdriver from just beside of its bosses. WOOFER The woofer is attached to the baffle by 4 external screws. To detach it, unfasten those screws. To detach it, first remove the grille. Then remove the screws. When attaching it, face its terminal downward. TWEETER The tweeter is attached to the baffle by 3 external screws. To detach it, unfasten those screws. To detach it, first remove the grille. Then remove the screws. When attaching it, face its terminal leftward and rightward. COSMETIC PANEL The cosmetic panel is attached to the baffle by its bosses. To detach it, pry it open by inserting a flat blade screwdriver into lower slot. To detach it, first remove the speaker stand base and grille. Then remove the cosmetic panel. When attaching it, fit the boss into the hole on the baffle. SPEAKER STAND BASES The speaker stand base is attached to the bottom of cabinet by 3 external screws. To detach it, unfasten those screws. Attach the speaker stand bases to the stems using the screws provided. Once you have aligned the stem and base, secure with the small screws at the points shown below. Note that the speaker should face in the direction of the base of the isosceles triangle (outlined below). GRILLE The grille assy is attached to the cabinet by 8 external screws. To detach it ,unfasten those screws. SPEAKER UNIT The speaker unit, together with the grille assy, is attached to the cabinet by 4 external screws. To detach it, first remove the grille assy. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal toward the input terminal. 1.1 FRONT SPEAKER 1.2 CENTER SPEAKER Rear Front Stem (the bottom of cabinet) Speaker Stand Base 1.3 SURROUND SPEAKER GRILLE The grille is attached to the cabinet by 6 external screws. To detach it, unfasten those screws. SPEAKER UNIT The speaker unit, together with the grille, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabinet. Then remove the cable. When attaching it, face its terminal downward.
Page 2
3 1 234 1 23 4 C D F A B E S-FCR3700 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 11 7 7 4 8 (2/2) 14 6 5 9 15 13 8 (1/2) 10 (1/2) 16 1 5 212 610 (2/2) 3 NSP Stand Set SEA6052 5Speaker Stand SNK2922 6Polyethylene Bag S1 SHL1414 7Speaker Stand Base SMS6027 8Protector SHA6112 9Protector (Middle) SHA6118 10 Protector SHA6113 11 Protection Sheet SHC6051 12 Protection Sheet SHC6052 13 Polyethylene Bag S2 SHL1417 14 Polyethylene Bag S2 SHL1420 15 Spacer SHB6014 16 Packing Case SHG6228 NSP Model Label (FL) SAN6377 NSP Model Label (FR) SAN6378 NSP Model Label (SL) SAN6379 NSP Model Label (SR) SAN6380 NSP Model Label (C) SAN6381 NSP Caution Label (for Surround) SRW1075 NSP 1 Front Speaker SMW6205 NSP 2 Center Speaker SMW6206 NSP 3 Surround Speaker SMW6207 NSP 4 Accessory Set SME6088 Speaker Cord (FL: White) SDS6037 Speaker Cord (FR: Red) SDS6038 Speaker Cord (SL: Blue) SDS6039 Speaker Cord (SR: Gray) SDS6040 Speaker Cord (C: Green) SDS1173 NSP Screw Set SME6073 Screw (for Speaker Stand) CMZ50P120FNC Screw (for Speaker Stand Base) CYC40P250FTC Polyethylene Bag S0 SHL1314 Non Skid Pad SEP6015 (for Speaker Stand Base) Non Skid Pad SEP6016 (for Center Speaker) Polyethylene Bag S1 SHL1251 PACKING Parts List Mark No. Description Part No. Mark No. Description Part No.
