Pioneer sf 606 service manual

This is the 2 pages manual for pioneer sf 606 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2

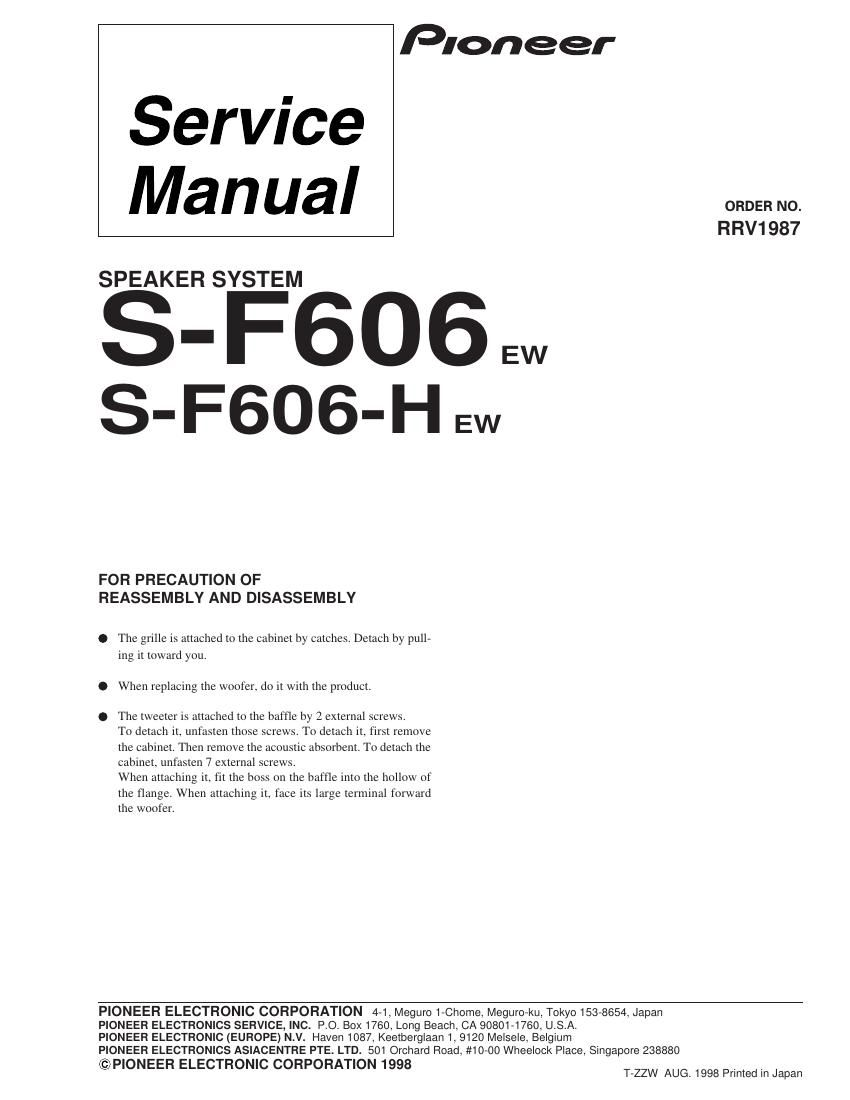

pioneer sf 606 service manual

Extracted text from pioneer sf 606 service manual (Ocr-read)


Page 1

2Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-F606, S-F606-H Network ASSY (SWN1584) SCHEMATIC DIAGRAM FOR S-F606 AND S-F606-H Woofer 1.0µF Tweeter INPUT Red White Blue White 0.88mH Blue White For Packing PARTS LIST FOR S-F606 PARTS LIST FOR S-F606-H For Packing NSP Cabinet SNK2294 Grille ASSY SMG1625 NSP Grille Cloth SAS1444 NSP Grille Frame SNK2295 NSP Network ASSY SWN1584 NSP Label Back SAN2622 Flanged Anchor Bolt SBA1091 Serrated Flange Nut M8 SBN1002 Gasket (for Input Terminal) SEC1392 NSP Cushion SEC1403 NSP Plate SEE1065 Input Terminal SKX1055 NSP Acoustic Absorbent SMV1909 Catch SNK1261 Felt SED1095 NSP Speaker (Woofer) SWM1057 Speaker (Tweeter) FK26AP02-53F Screw (for Tweeter) ATZ40P080FMC Screw (for Terminal) BPZ40P120FMC Screw (for Baffle-Cabinet) BTZ40P140FZK NSP Warranty Card ARY7022 NSP Screw ASSY SEA1518 Screw PMF40P250FZK NSP Polyethylene Bag SHL-051 Operating Instructions SRD1204 (English/ French/ German/ Italian/ Dutch/ Swedish/ Spanish/ Portuguese) NSP Speaker Wire ASSY SEA1519 Speaker Wire SDS1055 NSP Polyethylene Bag S1 SHL-137 Stand ASSY SXK1042 Spacer SEP1193 Stand SNK2296 Protector (Top) SHA2118 Protector (Bottom) SHA2119 Protection Mat S5 SHC1395 Packing Case SHG2129 NSP Cereal No Label TAL-099NSP Cabinet SNK2355 Grille ASSY SMG1626 NSP Grille Cloth SAS1445 NSP Grille Frame SNK2295 NSP Network ASSY SWN1584 NSP Label Back SAN2623 Flanged Anchor Bolt SBA1091 Serrated Flange Nut SBN1002 Gasket (for Input Terminal) SEC1392 NSP Cushion SEC1403 NSP Plate SEE1065 Input Terminal SKX1055 NSP Acoustic Absorbent SMV1909 Catch SNK1261 Felt SED1096 NSP Speaker (Woofer) SWM1058 Speaker (Tweeter) FK26AP02-53F Screw (for Tweeter) ATZ40P080FMC Screw (for Terminal) BPZ40P120FMC Screw (for Baffle-Cabinet) BTZ40P140FZK NSP Warranty Card ARY7022 NSP Screw ASSY SEA1518 Screw PMF40P250FZK NSP Polyethylene Bag SHL-051 Operating Instructions SRD1204 (English/ French/ German/ Italian/ Dutch/ Swedish/ Spanish/ Portuguese) NSP Speaker Wire ASSY SEA1519 Speaker Wire SDS1055 NSP Polyethylene Bag S1 SHL-137 Stand ASSY SXK1043 Spacer SEP1193 NSP Stand SNK2357 Protector (Top) SHA2118 Protector (Bottom) SHA2119 Protection Mat S5 SHC1395 Packing Case SHG2130 NSP Cereal No Label TAL-099
