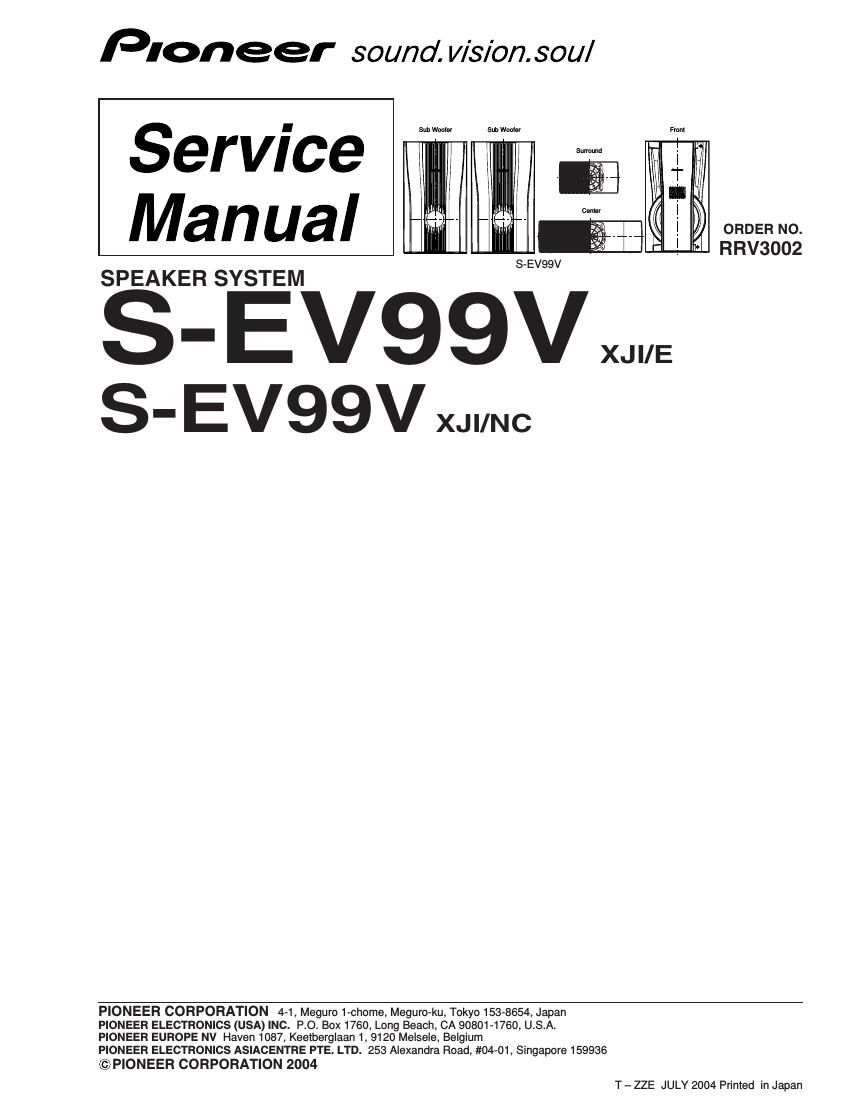

Pioneer sev 99 v service manual
This is the 7 pages manual for pioneer sev 99 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sev 99 v service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E S-EV99V FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille is attached to the cabinet by catches. Detach by pull- ing it toward you. The woofer is attached to the cosmetic baffle by 4 internal screws. The cosmetic baffle is atached to the cabinet by 4 exter- nal screws. To detach it, first insert a sharp-pointed tool like an eyeleteer into the catch and push up. Next unfasten screws for the cosmetic baffle. Then unfasten those screws. When attaching the woofer, face its terminal downward. When attaching the cosmetic baffle, on the cabinet by screws. The tweeter is attached to the cosmetic baffle by 2 internal screws. The cosmetic baffle is atached to the cabinet by 4 exter- nal screws. To detach it, perform same as the woofer. (Front SP) The grille assy is attached to the cabinet by external screws (8 screws for center SP, 4 screws for surround SP) from backside. The Speaker is attached to the grille by 4 internal screws. To detach it, first unfasten screws for the grille and the cabinet. Then unfasten those screws.When attaching it, face its terminal horizontal. When attaching the grille after connecting the cord, face its terminal toward the cord of the cabinet. (Center SP and Surround SP) (Sub Woofer) The woofer is attached to the back board by 4 external screws. To detach it, unfasten those screws. The input terminal is attached to the back board of the cabinet together with the adhesive by press-fitting. To detach the input terminal, pry it open by inserting a flat blade screwdriver into the upper and lower slot of the input terminal. To attach the input terminal, replace it on the back board of the cabinet cor- rectly together with the adhesive by press-fitting. (The red ter- minal is right-side.) The cosmetic baffle is attached to the baffle of the cabinet to- gether with the adhesive by press-fitting. To detach the cos- metic baffle, pry it open by inserting a flat blade screwdriver into the lower slot of it. To attach the cosmetic baffle, replace it on the baffle of the cabinet together with the adhesive by press- fitting. How to replace the cosmetic baffle and cosmetic duct 1.Remove the speaker from the cabinet, first removing the four screws. 2.Reach through the hole where the speaker was originally lo- cated and pull out the damper attached at the end of the cos- metic duct by hand.(Damper: See Product Appearance 8.) Note: Detach the damper with great care so as not to damage the interior surface of its circumference. 3. With the aid of a flathead screwdriver inserted through the slit at the lower part of the cosmetic baffle, remove the cosmetic baffle from the cabinet. 4.Remove the cosmetic duct from the cosmetic baffle, first re- moving its eight screws. You can now replace the cosmetic baffle and/or cosmetic duct.5. Reassemble the subwoofer, as shown below: 5-1Reattach the cosmetic duct to the cosmetic baffle, using the eight screws previously removed. 5-2 Apply adhesive to the cosmetic baffle and press it into the cabinet. 5-3Apply adhesive to the interior surface of the circumfer- ence of the damper previously removed. 5-4 Insert the damper into the cabinet through the hole where the speaker was, and adhere it so that the end of the cos- metic duct is on the same plane as the surface of the damper. 5-5Secure the speaker to the cabinet with the four screws pre- viously removed.
Page 2
3 1 234 1 23 4 C D F A B E S-EV99V Mark No. Description Part No. NSP CS Assy (Front L) SMW1849 NSP CS Assy (Front R) SMW1850 NSP CS Assy (Sub Woofer) SMW1851 NSP CS Assy (Center SP) SMW1854 NSP CS Assy (Surround L) SMW1855 NSP CS Assy (Surround R) SMW1856 for Accessory Stand SNK2684 Spacer (for Stand) SEC1737 NSP Accessories Set SME3563 NSP Polyethylene Bag S1 KHL1079 Speaker Cord SDS1170 Non Skid Pad SEP1273 for XJI/E type NSP Stamped Label (L) SME3491 NSP Model Label (Front L) SAN3452 NSP Stamped Label (R) SME3492 NSP Model Label (Front R) SAN3453 NSP Stamped Label SME3493 NSP Model Label (Sub WF) SAN3454 NSP Stamped Label SME3494 NSP Model Label (Center) SAN3455 NSP Stamped Label (L) SME3495 NSP Model Label (Sur.L) SAN3456 NSP Stamped Label (R) SME3496 NSP Model Label (Sur.R) SAN3457 NSP Caution Label SRW1091 for XJI/NC type NSP Stamped Label (L) SME3570 NSP Model Label (Front L) SAN3516 NSP Stamped Label (R) SME3571 NSP Model Label (Front R) SAN3517 NSP Stamped Label SME3572 NSP Model Label (Sub WF) SAN3518 NSP Stamped Label SME3573 NSP Model Label (Center) SAN3519 NSP Stamped Label (L) SME3574 NSP Model Label (Sur.L) SAN3520 NSP Stamped Label (R) SME3575 NSP Model Label (Sur.R) SAN3521 NSP Caution Label SRW1091 for Packing Top Protector SHA2453 Middle Protector SHA2454 Bottom ProtectorSHA2455 Protection sheet S2 (for Front) SHC1800 Protection sheet S3 (for Sub WF) SHC1818 Packing Case (for XJI/E type)SHG2595 Packing Case (for XJI/NC type)SHG2600 NSP Polyethylene Bag S5 (for Front and Sub WF) SHL1385 NSP Polyethylene Bag (for Center and Stand) SHL1405 Polyethylene Bag S3 (for Surround)SHL1397 7 77 7 7 CS Assy (Front SP) Mark No. Description Part No. NSP Cabinet SMM2006 Grille Assy SMG1826 NSP Badge 36 SAM1441 NSP Grille Frame SMH1089 NSP Punching net SNC1204 NSP Double Facetape SEH1062 Network Assy (Front L) SWN1716 Network Assy (Front R) SWN1717 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. Non Skid Pad SEC1827 Gasket SEC1629 Packing SEC1726 NSP Acoustic Absorbent SMV2207 NSP Acoustic Absorbent SMV1886 Catch SNK2176 Cosmetic Baffle SNK2803 Speaker (Woofer) A14LU75-51D Speaker (Tweeter) E52AP45-55D Screw (for Speaker) BPZ40P100FNI Screw (for Cosmetic Baffle) PYC40P400FNI 7 77 7 7 CS Assy (Sub Woofer) Mark No. Description Part No. NSP Cabinet SMM2007 Input Terminal KKX1014 NSP Badge 36 SAM1441 Connection Cord SDD1333 Non Skid Pad SEC1827 NSP Packing SEC1886 NSP Packing SEC1887 Cosmetic Duct SMR1378 NSP Acoustic Absorbent SMV1886 Cosmetic Baffle SNK2804 Speaker A14LU80-51H Screw (for Cosmetic Duct) BPZ30P100FNI Screw (for Speaker) BYC40P200FNI 7 77 7 7 CS Assy (Center SP) Mark No. Description Part No. NSP Cabinet SNK2688 Grille Assy SMG1792 NSP Badge 36 SAM1441 NSP Grille Cloth SAS1553 NSP Grille Frame SMH1071 Packing (95x3) SEC1727 Packing (322x3) SEC1728 Connecting Cord SDF1102 Non Skid Pad SEP1296 NSP Packing SNK2541 Speaker D87DU61-55D Screw (*) BPZ40P080FNI Screw (*) BPZ40P120FNI 7 77 7 7 CS Assy (Surround SP) Mark No. Description Part No. NSP Cabinet SNK2690 Grille Assy SMG1793 NSP Badge 36 SAM1497 NSP Grille Cloth SAS1554 NSP Outside Stopper Ring SBG1006 NSP Grille Frame SMH1072 Packing (95x3) SEC1727 Packing (182x3) SEC1729 Connecting Cord (Surround L) SDF1103 Connecting Cord (Surround R) SDF1104 NSP Packing SNK2541 Speaker D87DU61-55D Screw (*) BPZ40P080FNI Screw (*) BPZ40P120FNI (*) Refer to PRODUCT APPEARANCE.
