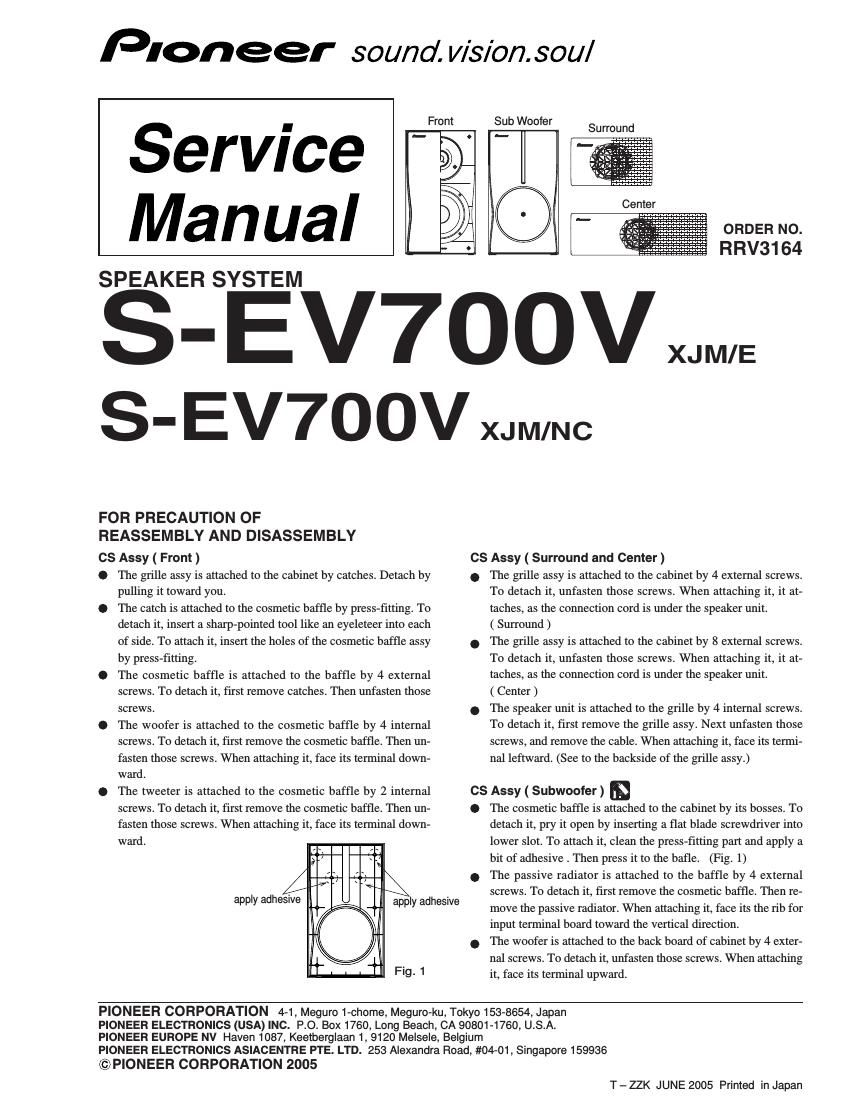

Pioneer sev 700 v service manual
This is the 8 pages manual for pioneer sev 700 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sev 700 v service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E S-EV700V NSP 1 CS Assy (Front L) SMW1885 NSP 1 CS Assy (Front R) SMW1886 NSP 2 CS Assy (Sub Woofer) SMW1887 NSP 3 CS Assy (Center) SMW1888 NSP 4 CS Assy (Surround L) SMW1889 NSP 4 CS Assy (Surround R) SMW1890 5Stand SNK2874 NSP 6 Accessories Set SEA1707 Non Skid Pad SEC1938 NSP Poly Bag S1 SHL1431 7Satellite Protector SHA2497 8Top Protector SHA2498 9Bottom Protector SHA2499 10 Protection Sheet S2 SHC1826 11 Protection Sheet S4 SHC1827 NSP 12 Poly Bag S5 SHL1430 NSP 13 Poly Bag S1 SHL1431 14 Poly Bag S3 SHL1432 NSP 15 Poly Bag S4 SHL1433 NSP 16 Poly Bag S7 SHL1434 for XJM/E type 17 Packing Case SHG2653 for XJM/NC type 17 Packing Case SHG2654 For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. for XJM/E type NSP Stanped Label (Front L) SME3633 NSP Model Label (Front L) SAN3673 NSP Stanped Label (Front R) SME3634 NSP Model Label (Front R) SAN3674 NSP Stanped Label (Sub WF) SME3635 NSP Model Label (Sub WF) SAN3675 NSP Stanped Label (Center) SME3636 NSP Model Label (Center) SAN3676 NSP Stanped Label (SUR.L) SME3637 NSP Model Label (SUR.L) SAN3677 NSP Stanped Label (SUR.R) SME3638 NSP Model Label (SUR.R) SAN3678 for XJM/NC type NSP Stanped Label (Front L) SME3640 NSP Model Label (Front L) SAN3679 NSP Stanped Label (Front R) SME3641 NSP Model Label (Front R) SAN3680 NSP Stanped Label (Sub WF) SME3642 NSP Model Label (Sub WF) SAN3681 NSP Stanped Label (Center) SME3643 NSP Model Label (Center) SAN3682 NSP Stanped Label (SUR.L) SME3644 NSP Model Label (SUR.L) SAN3683 NSP Stanped Label (SUR.R) SME3645 NSP Model Label (SUR.R) SAN3684 Mark No. Description Part No. 6 17 9 1 1 2 8 7 7 3 4 5 10 10 11 16 12 12 14 13 15 Pay attentionShould not touch the cabinetand connecting cord directly. poly bag fastening (clear tape) How to pack (surround & center)
Page 2
3 1 234 1 23 4 C D F A B E S-EV700V 4 5 ∅8.5 TAPPING SCREW: M4 SCREW (SBA1257) 10 NSP Cabinet SMM2022 Cosmetic BF. Assy SXB1480 Name Plate 36 AAM7013 NSP Double Face Tape SEH1072 NSP Cosmetic BF. Assy SXB1475 NSP Punching Net SNC1207 NSP Cosmetic Plate SNK2875 NSP Cosmetic Baffle SNK2876 Connection Cord SDF1113 Non Skid Pad SEC1953 Speaker (Woofer) A14LR80-53D Passive Radiator DC-21G Screw (for Woofer) BYC40P200FTB Screw (for Passive Radiator) BYC40P200FTC CS ASSY (Subwoofer) Mark No. Description Part No. Mark No. Description Part No. CS ASSY (Center) NSP Cabinet SNK2877 Grille Assy SMG1850 Name Plate 36 AAM7013 NSP Grille Cloth SAS1596 NSP Grille Frame SMH1108 Connection Cord SDF1114 NSP Packing SNK2878 Speaker K77DC55-53D Screw (for SP unit) BPZ40P080FTC Screw (for Cabinet) BPZ40P100FTB NSP Cabinet SMM2021 Grille Assy SMG1849 Name Plate 36 AAM7013 NSP Gasket SEC1954 NSP Double Face Tape SEH1072 NSP Grille Assy SMG1842 NSP Grille Frame SMH1107 NSP Punching Net SNC1206 Cosmetic Baffle Assy SXB1487 NSP Cosmetic Flange SFR1083 NSP Cosmetic Baffle SNK2873 NSP Hexagon Socket Screw SBA1257 for SMW1885 (Front L) Network Assy SWN1751 for SMW1886 (Front R) Network Assy SWN1752 Gasket SEC1951 Gasket SEC1952 Non Skid Pad SEC1953 Gasket SEC2017 NSP Duct 42.5 SMR1395 Catch SNK2915 Speaker (Woofer) A14LU75-55D Speaker (Tweeter) E52AP39-62D Screw (for Tweeter) BPZ40P060FTC Screw (for Woofer) BPZ40P100FTC Screw (for Cosmetic Baffle) BYC40P200FTC CS ASSY (Front) Mark No. Description Part No. NSP Cabinet SNK2879 Grille Assy SMG1851 Name Plate 36 AAM7013 NSP Grille Cloth SAS1597 NSP Grille Frame SMH1109 for SMW1889 (Surround L) Connection Cord SDF1115 for SMW1890 (Surround R) Connection Cord SDF1116 NSP Packing SNK2878 Speaker K77DC55-54D Screw (for SP unit) BPZ40P080FTC Screw (for Cabinet) BPZ40P100FTB CS ASSY (Surround) Mark No. Description Part No.
