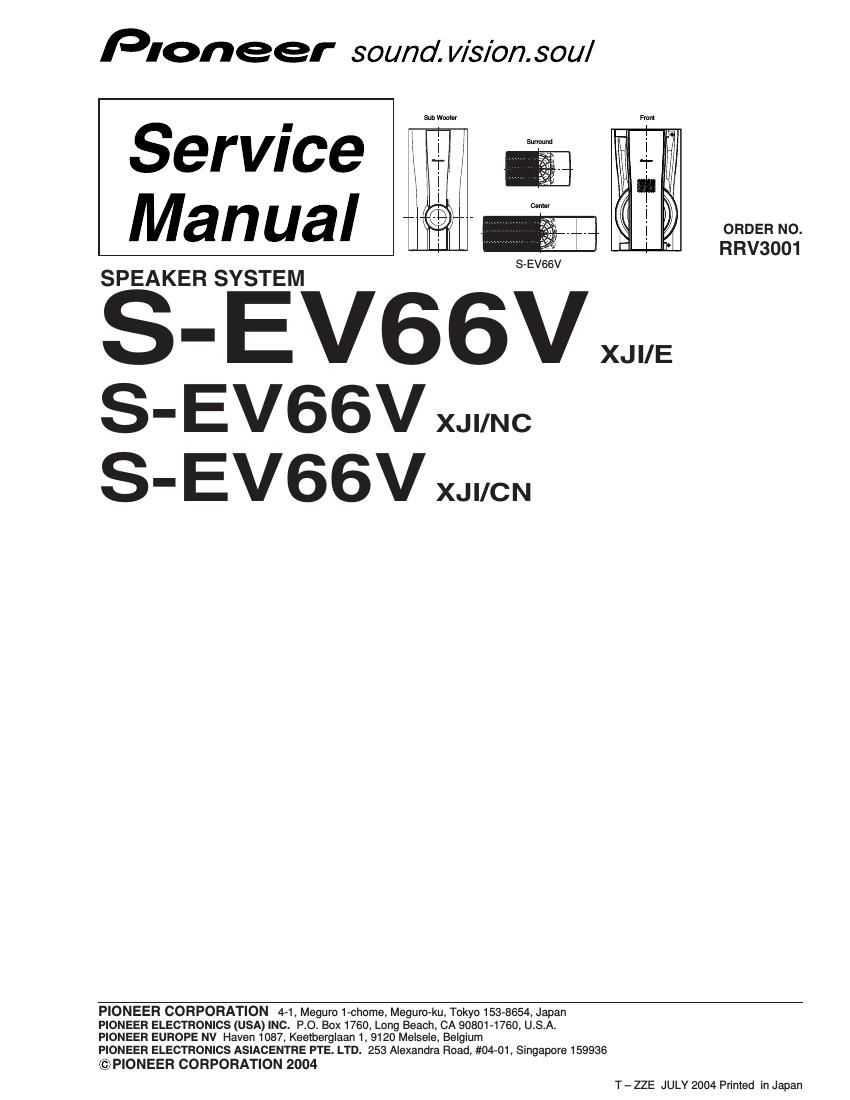

Pioneer sev 66 v service manual
This is the 8 pages manual for pioneer sev 66 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sev 66 v service manual (Ocr-read)
Page 1
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille is attached to the cabinet by catches. Detach by pull- ing it toward you. The woofer is attached to the cosmetic baffle by 4 internal screws. The cosmetic baffle is atached to the cabinet by 4 exter- nal screws and. To detach it, first insert a sharp-pointed tool like an eyeleteer into the catch and push up. Next unfasten screws for the cosmetic baffle. Then unfasten those screws. When attaching the woofer, face its terminal downward. When attaching the cosmetic baffle on the cabinet by screws. The tweeter is attached to the cosmetic baffle by 2 internal screws. The cosmetic baffle is atached to the cabinet by 4 exter- nal screws. To detach it, perform same as the woofer. (Front SP) The grille assy is attached to the cabinet by external screws (8 screws for center SP, 4 screws for surround SP) from backside. The Speaker is attached to the grille by 4 internal screws. To detach it, first unfasten screws for the grille and the cabinet. Then unfasten those screws.When attaching it, face its terminal horizontal. When attaching the grille after connecting the cord, face its terminal toward the cord of the cabinet. (Center SP and Surround SP) (Sub Woofer) The woofer is attached to the back board by 4 external screws. To detach it, unfasten those screws. The input terminal is attached to the back board of the cabinet together with the adhesive by press-fitting. To detach the input terminal, pry it open by inserting a flat blade screwdriver into the upper and lower slot of the input terminal. To attach the input terminal, replace it on the back board of the cabinet cor- rectly together with the adhesive by press-fitting. (The red ter- minal is right-side.) The cosmetic baffle is attached to the baffle of the cabinet to- gether with the adhesive by press-fitting. To detach the cos- metic baffle, pry it open by inserting a flat blade screwdriver into the lower slot of it. To attach the cosmetic baffle, replace it on the baffle of the cabinet together with the adhesive by press- fitting. How to replace the cosmetic baffle and cosmetic duct 1.Remove the speaker from the cabinet, first removing the four screws. 2.Reach through the hole where the speaker was originally lo- cated and pull out the damper attached at the end of the cos- metic duct by hand. (Damper: See Product Appearance 11.) Note: Detach the damper with great care so as not to damage the interior surface of its circumference. 3. With the aid of a flathead screwdriver inserted through the slit at the lower part of the cosmetic baffle, remove the cosmetic baffle from the cabinet.4. Reassemble the subwoofer, as shown below: 4-1 Apply adhesive to the cosmetic baffle and press it into the cabinet. 4-2Apply adhesive to the interior surface of the circumfer- ence of the damper previously removed. 4-3 Insert the damper into the cabinet through the hole where the speaker was, and adhere it so that the end of the cos- metic duct is on the same plane as the surface of the damper. 4-4Secure the speaker to the cabinet with the four screws pre- viously removed.
Page 2
3 1 234 1 23 4 C D F A B E S-EV66V Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. for Packing Top Protector SHA2384 Middle Protector SHA2385 Bottom ProtectorSHA2407 Protection sheet S2 (for Front) SHC1800 Protection sheet S3 (for Sub WF) SHC1801 Packing Case (for XJI/E type)SHG2594 Packing Case (for XJI/NC type)SHG2601 Packing Case (for XJI/CN type)SHG2602 NSP Polyethylene Bag S5 (for Front and Sub WF) SHL1385 NSP Polyethylene Bag (for Center and Stand) SHL1405 Polyethylene Bag S3 (for Surround)SHL1397 7 77 7 7 CS Assy (Front SP) Mark No. Description Part No. NSP Cabinet SMM2006 Grille Assy SMG1826 NSP Badge 36 SAM1441 NSP Grille Frame SMH1089 NSP Punching net SNC1204 NSP Double Face tape SEH1062 Network Assy (Front L) SWN1716 Network Assy (Front R) SWN1717 Non Skid Pad SEC1827 Gasket SEC1629 Packing SEC1726 NSP Acoustic Absorbent SMV2207 NSP Acoustic Absorbent SMV1886 Catch SNK2176 Cosmetic Baffle SNK2803 Speaker (Woofer) A14LU75-51D Speaker (Tweeter) E52AP45-55D Screw (for Speaker) BPZ40P100FNI Screw (for Cosmetic Baffle) PYC40P400FNI 7 77 7 7 CS Assy (Sub Woofer) Mark No. Description Part No. NSP Cabinet SMM2008 Input Terminal KKX1014 Connection Cord SDD1317 Non Skid Pad SEC1827 NSP Packing SEC1535 NSP Duct 48 SMR1369 NSP Acoustic Absorbent SMV1886 Cosmetic Baffle SNK2683 NSP Cosmetic Board (Top) SNK2686 NSP Cosmetic Board (Under) SNK2687 Speaker Q13LR82-51D Screw (for Speaker) BYC40P200FNI Mark No. Description Part No. NSP CS Assy (Front L) SMW1849 NSP CS Assy (Front R) SMW1850 NSP CS Assy (Sub Woofer) SMW1853 NSP CS Assy (Center SP) SMW1854 NSP CS Assy (Surround L) SMW1855 NSP CS Assy (Surround R) SMW1856 for Accessory Stand SNK2684 Spacer SEC1737 NSP Accessories Set SME3448 NSP Polyethylene Bag S1 KHL1079 Speaker Cord SDS1147 Non Skid Pad SEP1273 for XJI/E type NSP Stamped Label (L) SME3497 NSP Model Label (Front L) SAN3458 NSP Stamped Label (R) SME3498 NSP Model Label (Front R) SAN3459 NSP Stamped Label SME3499 NSP Model Label (Sub WF) SAN3460 NSP Stamped Label SME3500 NSP Model Label (Center) SAN3461 NSP Stamped Label (L) SME3501 NSP Model Label (Sur.L) SAN3462 NSP Stamped Label (R) SME3502 NSP Model Label (Sur.R) SAN3463 NSP Caution Label SRW1091 for XJI/NC type NSP Stamped Label (L) SME3576 NSP Model Label (Front L) SAN3522 NSP Stamped Label (R) SME3577 NSP Model Label (Front R) SAN3523 NSP Stamped Label SME3578 NSP Model Label (Sub WF) SAN3524 NSP Stamped Label SME3579 NSP Model Label (Center) SAN3525 NSP Stamped Label (L) SME3580 NSP Model Label (Sur.L) SAN3526 NSP Stamped Label (R) SME3581 NSP Model Label (Sur.R) SAN3527 NSP Caution Label SRW1091 for XJI/CN type NSP Stamped Label (L) SME3582 NSP Model Label (Front L) SAN3528 NSP Stamped Label (R) SME3583 NSP Model Label (Front R) SAN3529 NSP Stamped Label SME3584 NSP Model Label (Sub WF) SAN3530 NSP Stamped Label SME3585 NSP Model Label (Center) SAN3531 NSP Stamped Label (L) SME3586 NSP Model Label (Sur.L) SAN3532 NSP Stamped Label (R) SME3587 NSP Model Label (Sur.R) SAN3533 NSP Caution Label SRW1110
