Pioneer sev 1000 v service manual
This is the 9 pages manual for pioneer sev 1000 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sev 1000 v service manual (Ocr-read)
Page 1

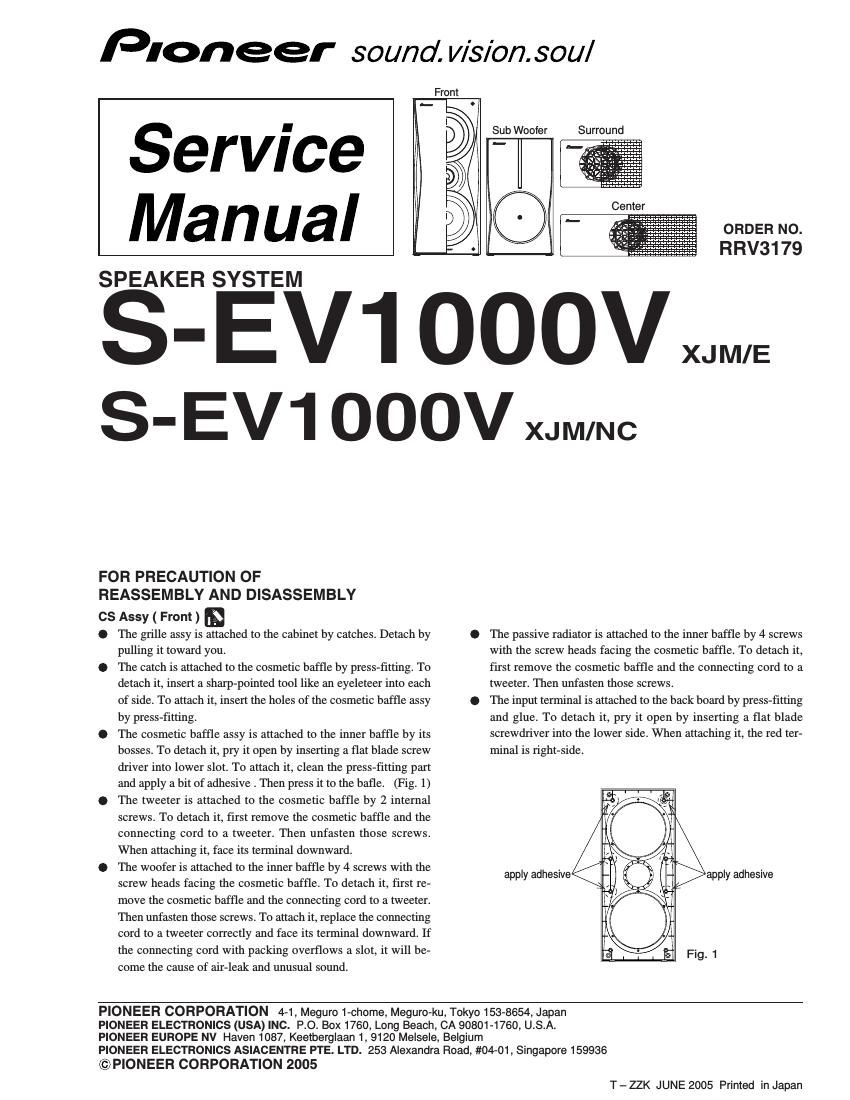

2 1 23 4 1234 C D F A B E S-EV1000V CS Assy ( Surround and Center ) The grille assy is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. When attaching it, it at- taches, as the connection cord is under the speaker unit. ( Surround ) The grille assy is attached to the cabinet by 8 external screws. To detach it, unfasten those screws. When attaching it, it at- taches, as the connection cord is under the speaker unit. ( Center ) The speaker unit is attached to the grille by 4 internal screws. To detach it, first remove the grille assy. Next unfasten those screws, and remove the cable. When attaching it, face its termi- nal leftward. (See to the backside of the grille assy.) Fig. 2 apply adhesive apply adhesive CS Assy ( Subwoofer ) The cosmetic baffle is attached to the cabinet by its bosses. To detach it, pry it open by inserting a flat blade screw driver into lower slot. To attach it, clean the press-fitting part and apply a bit of adhesive . Then press it to the bafle. (Fig. 2) The passive radiator is attached to the baffle by 4 external screws. To detach it, first remove the cosmetic baffle. Then re- move the passive radiator. When attaching it, face its the rib for input terminal board toward the vertical direction. The woofer is attached to the back board of cabinet by 4 exter- nal screws. To detach it, unfasten those screws. When attaching it, face its terminal upward. The input terminal is attached to the back board by press-fitting and glue. To detach it, pry it open by inserting a flat blade screwdriver into the lower side. When attaching it, the red ter- minal is right-side.
Page 2
3 1 234 1 23 4 C D F A B E S-EV1000V For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST NSP 1 CS Assy (Front) SMW1891 NSP 2 CS Assy (Sub Woofer) SMW1892 NSP 3 CS Assy (Center) SMW1888 NSP 4 CS Assy (Surround L) SMW1889 NSP 4 CS Assy (Surround R) SMW1890 5Stand SNK2874 NSP 6 Accessories Set SEA1701 Speaker cord SDS1185 Speaker cord SDS1186 Speaker cord SDS1187 Non Skid Pad SEC1938 NSP Poly Bag S1 SHL1431 7Satellite Protector SHA2497 8Top Protector SHA2500 9Bottom Protector SHA2501 10 Protection Sheet S3 SHC1828 11 Protection Sheet S4 SHC1827 NSP 12 Poly Bag S1 SHL1431 13 Poly Bag S3 SHL1432 NSP 14 Poly Bag S4 SHL1433 NSP 15 Poly Bag S7 SHL1435 for XJM/E type 16 Packing Case SHG2655 for XJM/NC type 16 Packing Case SHG2656 Mark No. Description Part No. for XJM/E type NSP Stanped Label (Front L) SME3647 NSP Model Label (Front L) SAN3685 NSP Stanped Label (Front R) SME3648 NSP Model Label (Front R) SAN3686 NSP Stanped Label (Sub WF) SME3649 NSP Model Label (Sub WF) SAN3687 NSP Stanped Label (Center) SME3650 NSP Model Label (Center) SAN3688 NSP Stanped Label (SUR.L) SME3651 NSP Model Label (SUR.L) SAN3689 NSP Stanped Label (SUR.R) SME3652 NSP Model Label (SUR.R) SAN3690 for XJM/NC type NSP Stanped Label (Front L) SME3653 NSP Model Label (Front L) SAN3691 NSP Stanped Label (Front R) SME3654 NSP Model Label (Front R) SAN3692 NSP Stanped Label (Sub WF) SME3655 NSP Model Label (Sub WF) SAN3693 NSP Stanped Label (Center) SME3656 NSP Model Label (Center) SAN3694 NSP Stanped Label (SUR.L) SME3657 NSP Model Label (SUR.L) SAN3695 NSP Stanped Label (SUR.R) SME3658 NSP Model Label (SUR.R) SAN3696 Mark No. Description Part No. 6 How to pack(surround & center) *Pay attentionShould not touch the cabinetand connecting cord directly. poly bag fastening (clear tape) 16 9 1 1 2 8 7 7 3 4 5 5 13 14 15 15 15 10 10 11 12 12
